Ports & interfaces |
Interface |
USB 2.0, Fast Ethernet (100Base-T) |
USB 2.0 Type-A ports quantity |
1 |
RJ-45 ports quantity |
1 |
Ethernet LAN |
Y |
USB port |
Y |
Ethernet interface type |
Fast Ethernet |
USB connector |
USB Type-A |
USB 2.0 ports quantity |
1 |
Networking |
Network ready |
Y |
Networking features |
Ethernet, Fast Ethernet |
Ethernet LAN |
Y |
Ethernet interface type |
Fast Ethernet |
Printing |
Print speed (normal quality) |
28 sec/page |
Print time (A1 size media, Black) |
38 s |
Print speed (colour image, best quality, glossy paper) |
2.8 m2/hr |
Print speed (colour image, draft quality, coated paper) |
37 m2/hr |
Colour |
Y |
Maximum resolution |
2400 x 1200 DPI |
Number of print cartridges |
6 |
Page description languages |
PCL 3 |
Printing colours |
Cyan, Magenta, Matte black, Photo black, Yellow |

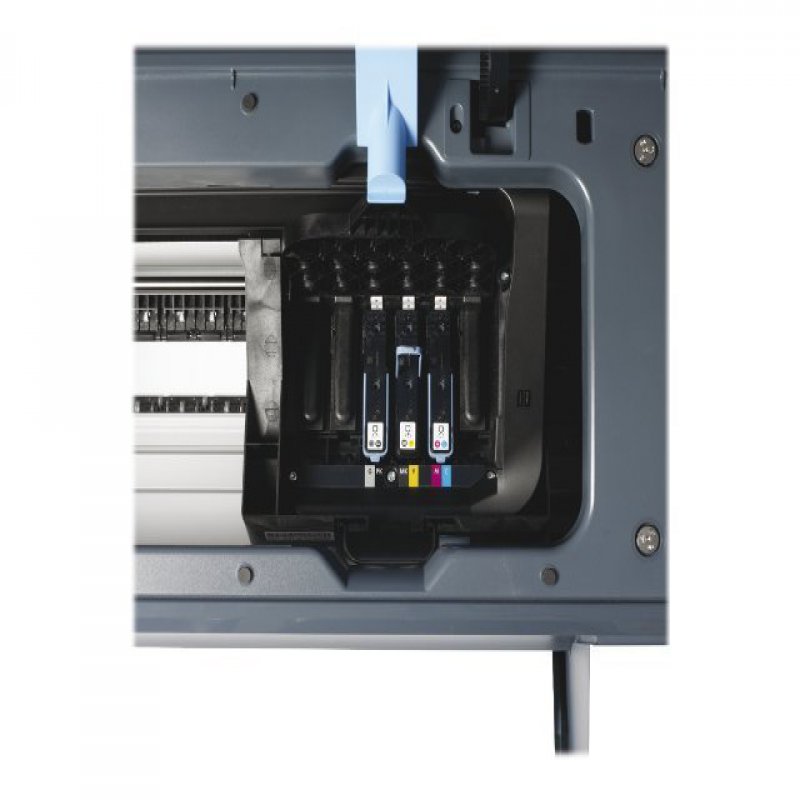

Print head nozzles |
1056 |
Power |
Power requirements |
100 - 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 2 A |
Power consumption (standby) |
27 W |
Power consumption (typical) |
120 W |
Operational conditions |
Storage temperature (T-T) |
-25 - 55 °C |
Operating temperature (T-T) |
41 - 104 °F |
System requirements |
Compatible operating systems |
Windows 7, Windows Vista Home Premium/Business/Ultimate;Windows XP Home/Professional, Mac OS X v10.4, v10.5, v1.06
|
Print quality |
Maximum resolution |
2400 x 1200 DPI |
Standard printer languages |
PCL 3 |
Printing colours |
Cyan, Magenta, Matte black, Photo black, Yellow |
Print technology |
Number of print cartridges |
6 |
Colour |
Y |
Print head nozzles |
1056 |
Maximum resolution |
2400 x 1200 DPI |
Standard printer languages |
PCL 3 |
Printing colours |
Cyan,Magenta,Matte black,Photo black,Yellow |
Paper handling |
Maximum print size |
A1 (594 x 841 mm) |
Media thickness |
0.8 mm |
Roll top margin |
5 mm |
Roll external diameter |
13.5 cm |
Print margin cut-sheet |
5 x 5 x 5 x 17 |
Maximum print length |
91 m |
Custom media sizes |
210 x 279 - 610 x 1676 mm |
Recommended media weight |
60 - 328 g/m² |
ISO A-series sizes (A0...A9) |
A1,A2,A3,A4 |
Maximum roll length |
91 m |
Maximum roll diameter |
13.5 cm |
Weight & dimensions |
Dimensions (WxDxH) |
1262 x 698 x 1050 mm |
Weight |
61 kg |
Package weight |
70 kg |
Package dimensions (WxDxH) |
1440 x 770 x 600 mm |
Size |
61 cm (24") |
Package dimensions (W x D x H) |
1440.2 x 769.6 x 599.4 mm (56.7 x 30.3 x 23.6") |
Dimensions (W x D x H) |
61 cm |
Size (imperial) |
61 cm (24") |
Certificates |
Energy Star certified |
Y |
Sound emission |
Acoustic pressure emissions |
46 dB |
Media formats |
ISO A-series sizes (A0...A9) |
A1,A2,A3,A4 |
Maximum roll length |
91 m |
Maximum media length (imperial) |
66" |
Maximum media width (imperial) |
24 |
Other features |
Line accuracy |
+/- 0.1% |
Functions |
Print |
Line width minimum |
0.02 mm |
Maximum optical density (black) |
2.15 |
Roll maximum input |
1 |
Source data-sheet |
. |
Maximum media length (imperial) |
66" |
Acoustic pressure emissions |
46 dB |
Performance |
Built-in processor |
Intel® Pentium® M |
Processor clock speed |
800 MHz |
Internal memory |
2048 MB |
Processor frequency |
800 MHz |
Technical details |
Sustainability certificates |
ENERGY STAR |
Packaging data |
Package weight |
70 kg |
Package dimensions (WxDxH) |
1440 x 770 x 600 mm |
Package dimensions (W x D x H) |
1440.2 x 769.6 x 599.4 mm (56.7 x 30.3 x 23.6") |
Sustainability |
Sustainability certificates |
ENERGY STAR |
