Stock Status: 1x unit in stock
SkyHawk™ leverages Seagate's extensive experience in designing drives purpose-built for surveillance applications.
ImagePerfect™ firmware is designed to ensure seamless video footage capture in 24×7 surveillance workloads1 that record video from 64 HD cameras.
SkyHawk Health Management actively helps protect your surveillance storage by focusing on prevention, intervention, and recovery options.2 Included is RAID RapidRebuild™, which provides 3× faster volume rebuilds over traditional RAID rebuilds.
Unparalleled data protection with included 3-year Rescue Data Recovery Services plan, helping protect important video data with Seagate's in-house data recovery services.
RV sensors built in allow drives to maintain performance in multi-bay systems, giving customers the flexibility to scale their systems when more storage is needed.
ATA streaming support enables recordings from up to 64 HD cameras for smooth, uninterrupted footage.
1 M hours MTBF, 3-year limited warranty represents an improved total cost of ownership (TCO) with reduced maintenance costs.
Lower power consumption means a reduction in heat emissions, which improves reliability in surveillance solutions. Tarnish-resistant components help protect drive from environmental elements, increasing field reliability
Specs
| Weight & dimensions |
| Width |
101.6 mm |
| Height |
26.1 mm |
| Depth |
147 mm |
| Weight |
630 g |
| Power |
| Power consumption (typical) |
5.3 W |
| Power consumption (off) |
0.25 W |
| Power consumption (idle) |
3.4 W |
| Operating voltage |
5 / 12 V |
| Start-up current |
1.8 A |
| Operational conditions |
| Operating temperature (T-T) |
0 - 65 °C |
| Other features |
| Maximum number of cameras supported |
64 |
| Features |
| HDD capacity |
6 TB |
| HDD size |
3.5" |
| Interface |
Serial ATA III |
| Type |
HDD |
| Component for |
PC |
| Storage drive buffer size |
256 MB |
| HDD interface transfer rate |
6 Gbit/s |
| HDD sustained transfer rate |
180 MiB/s |
| Uncorrectable Bit Error Rate (UBER) |
< 1 per 10^14 bits read |
| Rotational Vibration (RV) sensors |
Yes |
| 24/7 operation |
Yes |
| RV sensor(s) |
Yes |
| Start/stop cycles |
600000 |
| Workload rate limit |
180 TB/year |
| Mean time between failures (MTBF) |
1000000 h |
Features

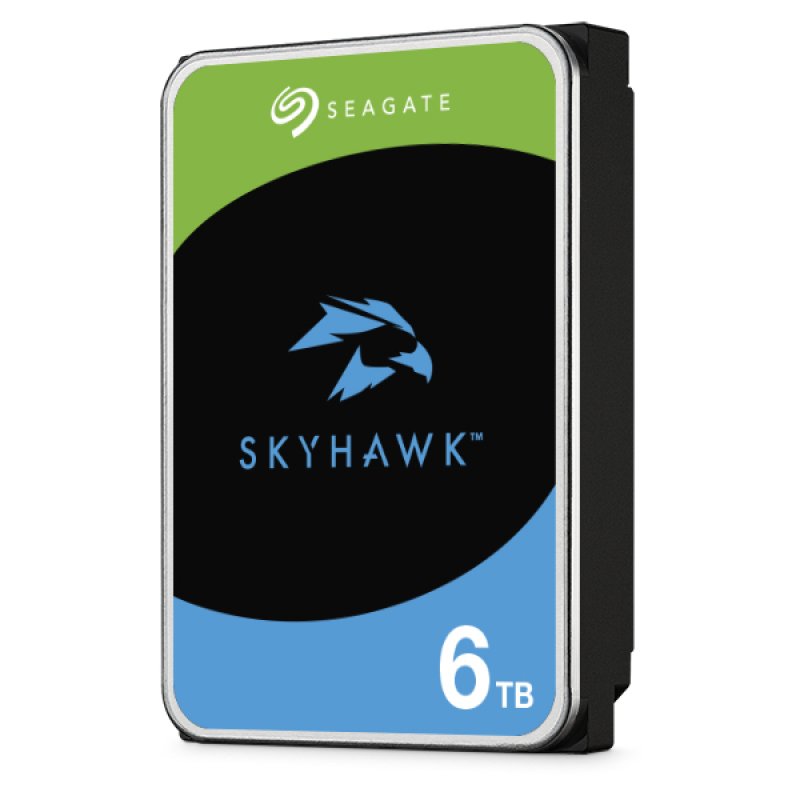

Seagate SkyHawk ST6000VX009. HDD capacity: 6 TB, Storage drive buffer size: 256 MB, HDD size: 3.5", Interface: Serial ATA III
Product Description
SkyHawk™ leverages Seagate's extensive experience in designing drives purpose-built for surveillance applications.
ImagePerfect™ firmware is designed to ensure seamless video footage capture in 24×7 surveillance workloads1 that record video from 64 HD cameras.
SkyHawk Health Management actively helps protect your surveillance storage by focusing on prevention, intervention, and recovery options.2 Included is RAID RapidRebuild™, which provides 3× faster volume rebuilds over traditional RAID rebuilds.
Unparalleled data protection with included 3-year Rescue Data Recovery Services plan, helping protect important video data with Seagate's in-house data recovery services.
RV sensors built in allow drives to maintain performance in multi-bay systems, giving customers the flexibility to scale their systems when more storage is needed.
ATA streaming support enables recordings from up to 64 HD cameras for smooth, uninterrupted footage.
1 M hours MTBF, 3-year limited warranty represents an improved total cost of ownership (TCO) with reduced maintenance costs.
Lower power consumption means a reduction in heat emissions, which improves reliability in surveillance solutions. Tarnish-resistant components help protect drive from environmental elements, increasing field reliability
