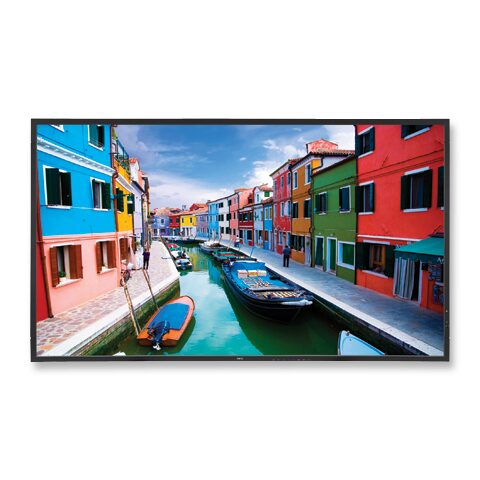

MultiSync® V463 is one of the ?rst public displays to feature a professional LCD panel with Edge LED backlights. Thanks to this new backlight technology, power consumption, weight and depth could be further reduced from the mark set by its predecessor. This generation of V Series features NEC STv2 Slot (OPS compatible) and allows for the seamless integration of various PC boards, HDSDI interfaces and other OPS compatible products.
Ideal for cost ef?cient retail signage, conferencing applications and lobby or reception installations not exceeding 16/7 operation time.
- NEC unique thermal monitoring and control. NEC pioneered advanced thermal control and monitoring for public displays which is still unmatched. It secures longevity and reliability even in very demanding installations.
- NEC’s STv2 Slot technology which was developed in cooperation with Intel enables the user to integrate various option boards enhancing ?exibility and future functionality.
- Peace of mind thanks to full control of the display via LAN with free NEC software and alert emails in the unlikely event of a problem such as no signal, overheating, back light failure etc.
- Integrated speakers save installation costs and preserve the clean look of the display.
- Daisy chaining via DVI (max. 9 pieces) offering high ?exibility at no extra cost if the signal needs to be passed on for videowalls or back-to-back installations.
- Copy Settings feature via RS232 to reduce installation cost for larger role outs.
Specs
| Weight & dimensions |
| Width |
1058.2 mm |
| Depth |
65.1 mm |
| Height |
612.8 mm |
| Weight |
18.9 kg |
| Display |
| Display diagonal |
116.8 cm (46") |
| Display technology |
LED |
| Display resolution |
1920 x 1080 pixels |
| Display brightness |
500 cd/m² |
| HD type |
Full HD |
| Touchscreen |
No |
| Panel type |
AMVA3 |
| LED backlighting type |
Edge-LED |
| Native aspect ratio |
16:9 |
| Response time |
6.5 ms |
| Contrast ratio (typical) |
4000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Active display area (W x H) |
1018 x 573 mm |
| Display diagonal (metric) |
117 cm |
| Horizontal scan range |
31.5 - 91.1 kHz |
| Vertical scan range |
25.2 - 85 Hz |
| Supported graphics resolutions |
720 x 400, 720 x 576, 1280 x 960, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA) |
| Supported video modes |
1080i, 1080p, 480p, 576p, 720p |
| Audio |
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
2 |
| RMS rated power |
20 W |
| Power |
| Power consumption (typical) |
100 W |
| Power consumption (standby) |
1 W |
| Ports & interfaces |
| HDMI ports quantity |
1 |
| DVI port |
Yes |
| DisplayPorts quantity |
1 |
| USB port |
No |
| Ethernet LAN |
Yes |
| HDMI version |
1.3 |
| DVI-I ports quantity |
0 |
| DVI-D ports quantity |
2 |
| VGA (D-Sub) input ports |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Composite video in |
1 |
| Audio (L/R) in |
1 |
| Audio (L/R) out |
1 |
| RS-232 interface |
Yes |
| RS-232C |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Other features |
| Manual |
Yes |
| Quick start guide |
Yes |
| Aspect ratio |
16:9 |
| Stand-by LED |
No |
| Plug and Play |
Yes |
| Energy efficiency class (old) |
A |
| Design |
| Product design |
Digital signage flat panel |
| Product colour |
Black |
| VESA mounting |
Yes |
| Panel mounting interface |
300 x 300 mm |
| Bezel width (bottom) |
1.83 cm |
| Bezel width (side) |
1.83 cm |
| Bezel width (top) |
1.83 cm |
| Performance |
| TV tuner integrated |
No |
| On Screen Display (OSD) |
Yes |
| Operating hours (hours/days) |
24/7 |
| HDCP |
Yes |
| Number of slots |
1 |
| Technical details |
| Compliance certificates |
RoHS |
| Computer system |
| Computer system |
No |
| Certificates |
| Certification |
C-tick; CE; FCC; PSB; TÜV GS; UL/C-UL; CSA; VCCI |
| Packaging content |
| Remote control included |
Yes |
| Cables included |
AC, DVI |
Features
NEC MultiSync V463. Product design: Digital signage flat panel. Display diagonal: 116.8 cm (46"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 500 cd/m², HD type: Full HD. Operating hours (hours/days): 24/7. Product colour: Black
Product Description
MultiSync® V463 is one of the ?rst public displays to feature a professional LCD panel with Edge LED backlights. Thanks to this new backlight technology, power consumption, weight and depth could be further reduced from the mark set by its predecessor. This generation of V Series features NEC STv2 Slot (OPS compatible) and allows for the seamless integration of various PC boards, HDSDI interfaces and other OPS compatible products.
Ideal for cost ef?cient retail signage, conferencing applications and lobby or reception installations not exceeding 16/7 operation time.
- NEC unique thermal monitoring and control. NEC pioneered advanced thermal control and monitoring for public displays which is still unmatched. It secures longevity and reliability even in very demanding installations.
- NEC’s STv2 Slot technology which was developed in cooperation with Intel enables the user to integrate various option boards enhancing ?exibility and future functionality.
- Peace of mind thanks to full control of the display via LAN with free NEC software and alert emails in the unlikely event of a problem such as no signal, overheating, back light failure etc.
- Integrated speakers save installation costs and preserve the clean look of the display.
- Daisy chaining via DVI (max. 9 pieces) offering high ?exibility at no extra cost if the signal needs to be passed on for videowalls or back-to-back installations.
- Copy Settings feature via RS232 to reduce installation cost for larger role outs.
