Triple Display
The MA3 dock can support up to three external displays via the 2 x DisplayPort (DP ++ / DP 1.4) and 1 x HDMI 2.0 outputs. The dock will support extension or mirroring across the three external displays when used with a Windows Laptop.
*Refer to the resolution support table for details on different resolutions supported with the dock.
Comprehensive Connectivity

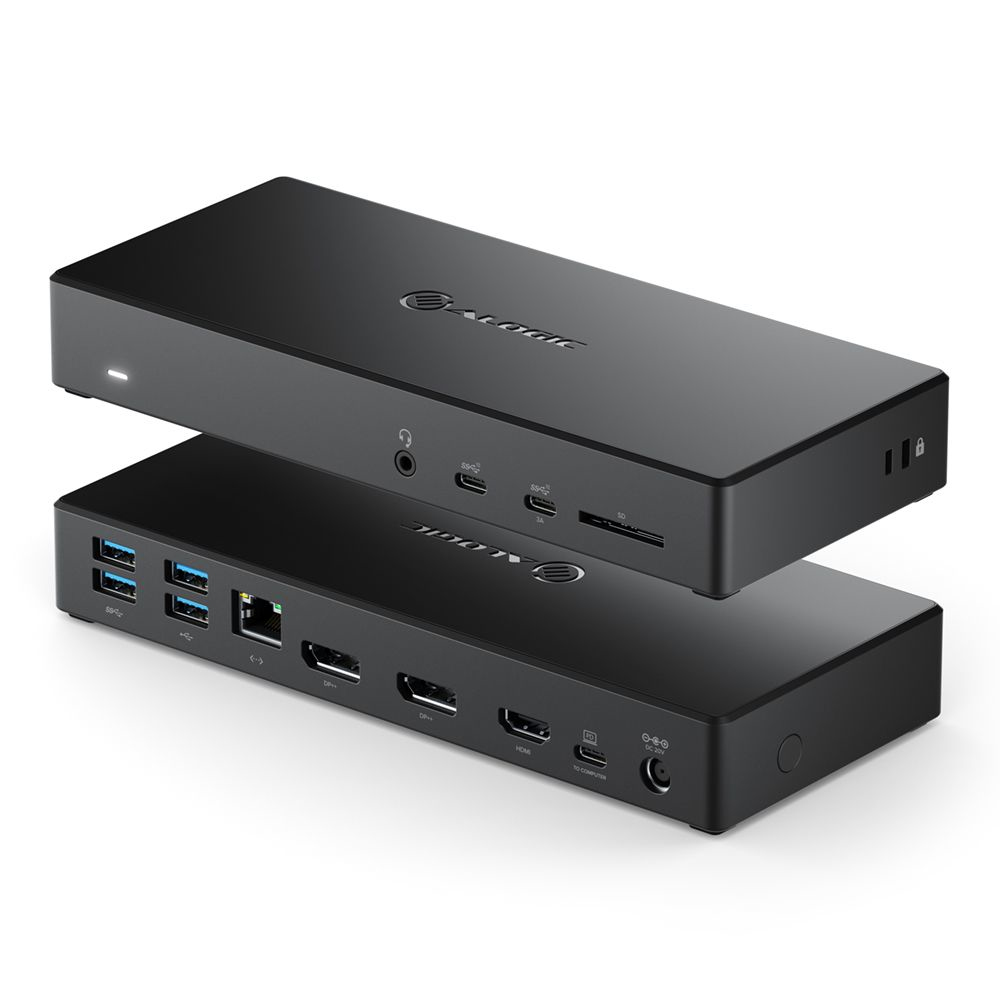

The MA3 dock supports up to three displays at resolutions of up to 4K*. In addition to the ability to connect external monitors, the dock provides access to a full range of connections with USB 3.1 Gen 2/10G USB-C and USB 3.1 Gen 1 and USB 2.0 USB-A Ports, Gigabit Ethernet, 3.5mm Combo Jack and SD Card
The dock also features lock slots for securing it to a desk when being used in an office or a hot desking environment.
*Refer to the resolution support table for details on different resolutions supported with the dock.
100W Laptop Charging/Power Delivery
The dock charges your laptop with up to 100W of power when in use. This allows for a perfect single cable solution to add multiple displays, USB accessories, gigabit ethernet, headphone/Mic and charge your laptop all at the same time.
Plug and Play: Driverless
With a plug-and-play design, the MA3 dock becomes an extension of your laptop without the need for software or drivers.
Specs
| Weight & dimensions |
| Width |
880 mm |
| Depth |
2100 mm |
| Height |
290 mm |
| Weight |
360 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| Microphone in |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| USB Power Delivery |
Yes |
| USB Power Delivery up to |
100 W |
| DisplayPorts quantity |
2 |
| DisplayPort version |
1.4 |
| Combo headphone/mic port |
Yes |
| DC-in jack |
Yes |
| Power |
| Power source type |
DC |
| Power supply |
170 W |
| Packaging content |
| Cables included |
AC |
| AC adapter included |
Yes |
| Manual |
Yes |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
1000 Mbit/s |
| Performance |
| Product colour |
Black |
| Card reader integrated |
Yes |
| Compatible memory cards |
SD, SDHC, SDXC |
| HD type |
4K Ultra HD |
| Maximum digital resolution |
5120 x 2880 pixels |
| Number of displays supported |
3 |
| Cable lock slot |
Yes |
| LED indicators |
Yes |
| Certification |
FCC, CE |
| Technical details |
| Compliance certificates |
RoHS |
| Software |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
Features
ALOGIC USB-C Triple Display DP Alt. Mode Docking Station – MA3 with 100W Power Delivery - 2 x DP and 1 x HDMI with up to 4K 60Hz Support. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 1000 Mbit/s. Product colour: Black, Compatible memory cards: SD, SDHC, SDXC, HD type: 4K Ultra HD. Power source type: DC, Power supply: 170 W. Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1
Product Description
Triple Display
The MA3 dock can support up to three external displays via the 2 x DisplayPort (DP ++ / DP 1.4) and 1 x HDMI 2.0 outputs. The dock will support extension or mirroring across the three external displays when used with a Windows Laptop.
*Refer to the resolution support table for details on different resolutions supported with the dock.
Comprehensive Connectivity
The MA3 dock supports up to three displays at resolutions of up to 4K*. In addition to the ability to connect external monitors, the dock provides access to a full range of connections with USB 3.1 Gen 2/10G USB-C and USB 3.1 Gen 1 and USB 2.0 USB-A Ports, Gigabit Ethernet, 3.5mm Combo Jack and SD Card
The dock also features lock slots for securing it to a desk when being used in an office or a hot desking environment.
*Refer to the resolution support table for details on different resolutions supported with the dock.
100W Laptop Charging/Power Delivery
The dock charges your laptop with up to 100W of power when in use. This allows for a perfect single cable solution to add multiple displays, USB accessories, gigabit ethernet, headphone/Mic and charge your laptop all at the same time.
Plug and Play: Driverless
With a plug-and-play design, the MA3 dock becomes an extension of your laptop without the need for software or drivers.
