Stock Status: 1x unit in stock

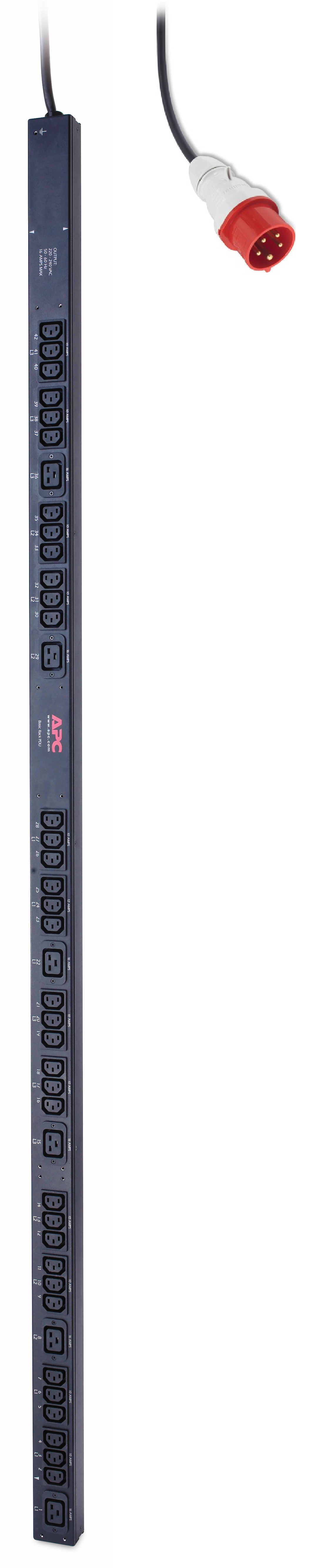

APC Basic Rack PDU , Input: 400V 3PH , Input Connections: IEC 309 16A 3P+N+PE , Cord Length: 3 feet ( 0.91 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19.
- Low Cost Power Distribution.
- Vertical mounting capability.
- Toolless mounting capability.
- Multi-branch power input.
Specs
| Weight & dimensions |
| Dimensions (WxDxH) |
56 x 44 x 1619 mm |
| Weight |
5.45 kg |
| Operational conditions |
| Operating temperature (T-T) |
-5 - 45 °C |
| Storage temperature (T-T) |
-25 - 65 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
| Power |
| Nominal input voltage |
400 V |
| AC input frequency |
47/63 Hz |
| Nominal output voltage |
230 V |
| Load capacity |
11040 VA |
| Maximum input current per phase |
16 A |
| Maximum total current draw per phase |
16 A |
| Maximum power |
11000 W |
| Ports & interfaces |
| AC outlets quantity |
42 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Input connection type |
IEC 309 16A 3P+N+PE |
| Output connections |
(36) IEC 320 C13
(6) IEC 320 C19 |
| Design |
| PDU types |
Basic |
| Rack capacity |
0U |
| Mounting |
Vertical |
| Product colour |
Black |
| Features |
| Cable length |
0.91 m |
| Certification |
C-tick,CCC,CE,GOST,MIC,Queensland Australia,VD |
Features
APC Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19. PDU types: Basic, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 42 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Input connection type: IEC 309 16A 3P+N+PE. Cable length: 0.91 m, Certification: C-tick,CCC,CE,GOST,MIC,Queensland Australia,VD. Nominal input voltage: 400 V, AC input frequency: 47/63 Hz, Nominal output voltage: 230 V. Dimensions (WxDxH): 56 x 44 x 1619 mm, Weight: 5.45 kg
Product Description
APC Basic Rack PDU , Input: 400V 3PH , Input Connections: IEC 309 16A 3P+N+PE , Cord Length: 3 feet ( 0.91 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19.
- Low Cost Power Distribution.
- Vertical mounting capability.
- Toolless mounting capability.
- Multi-branch power input.
