Stock Status: 1x unit in stock
High density, double-conversion on-line power protection with scalable runtime.
Specs
| Weight & dimensions |
| Width |
432 mm |
| Depth |
773 mm |
| Height |
533 mm |
| Weight |
247.7 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Ports & interfaces |
| AC outlet types |
C19 coupler |
| Power plug |
Terminal |
| AC outlets quantity |
8 AC outlet(s) |
| Number of output IEC jumpers |
2 |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |
| Ethernet LAN (RJ-45) ports |
1 |
| Cabling technology |
10/100Base-T |
| SmartSlot |
Yes |
| Other features |
| Nominal output voltage |
230 V |
| Nominal input voltage |
230 V |
| Packaging content |
Web/SNMP Management Card |
| Battery |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery capacity |
3840 VAh |
| Typical backup time at full load |
4.9 min |
| Typical backup time at half load |
15.2 min |
| Battery life (max) |
5 year(s) |
| Battery recharge time |
2.5 h |
| Hot-swap battery |
Yes |
| Automatic battery test |
Yes |
| Cold start |
Yes |
| Design |
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Rack capacity |
12U |
| Display type |
LCD |
| LED indicators |
Yes |
| Features |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
20 kVA |
| Output power |
16000 W |
| Waveform |
Sine |
| Input frequency |
40 - 70 Hz |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Output frequency regulation |
50/60 Hz |
| Maximum current |
115 A |
| Number of output phases |
1 |
| Efficiency |
93.7% |
| Crest factor |
3:1 |
| Emergency Power Off (EPO) |
Yes |
| Noise level |
59 dB |
| Surge protection |
Yes |
| Audible alarm(s) |
Yes |
| Auto-restart |
Yes |
| Logistics data |
| Products per pallet |
1 pc(s) |
| Harmonized System (HS) code |
85078000 |
| Total carbon footprint (kg of CO2e) |
37662.44 |
| Packaging data |
| Software CD |
Yes |
| Package width |
610 mm |
| Package depth |
1003 mm |
| Package height |
990 mm |
| Package weight |
314.1 kg |
| Certification |
| Compliance certificates |
RoHS |
| Certification |
BSMI, EN/IEC 62040-2, EN/IEC 62040-1-1, VDE, PEP, EOLI |
| Packaging content |
| Rack mount kit |
Yes |
| Cables included |
RS-232 |
| Manual |
Yes |
Features

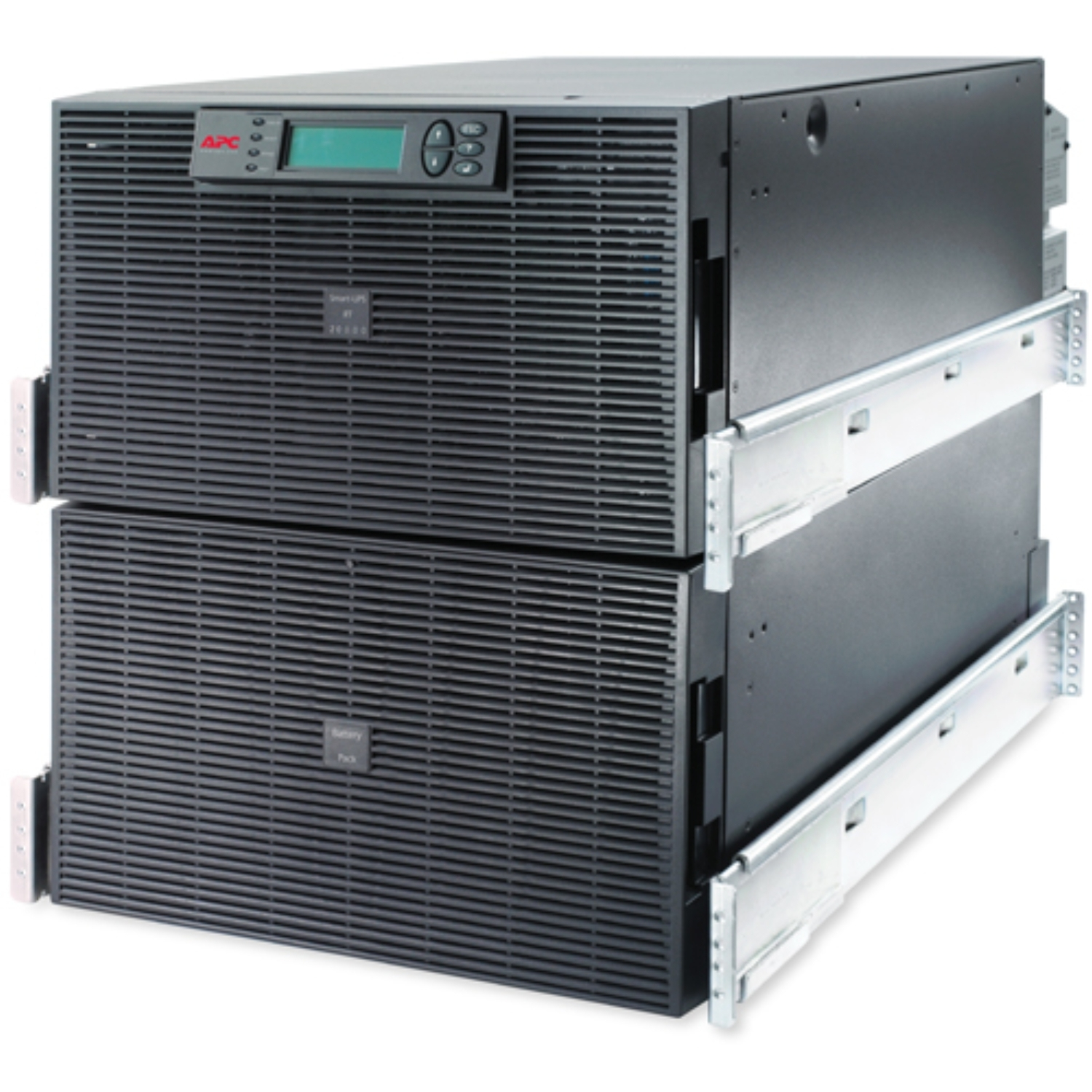

APC Smart-UPS RT 20kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets. UPS topology: Double-conversion (Online), Output power capacity: 20 kVA, Output power: 16000 W. AC outlet types: C19 coupler, Power plug: Terminal, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 3840 VAh, Typical backup time at full load: 4.9 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 12U. Compliance certificates: RoHS, Certification: BSMI, EN/IEC 62040-2, EN/IEC 62040-1-1, VDE, PEP, EOLI
Product Description
High density, double-conversion on-line power protection with scalable runtime.
