Stock Status: 1x unit in stock

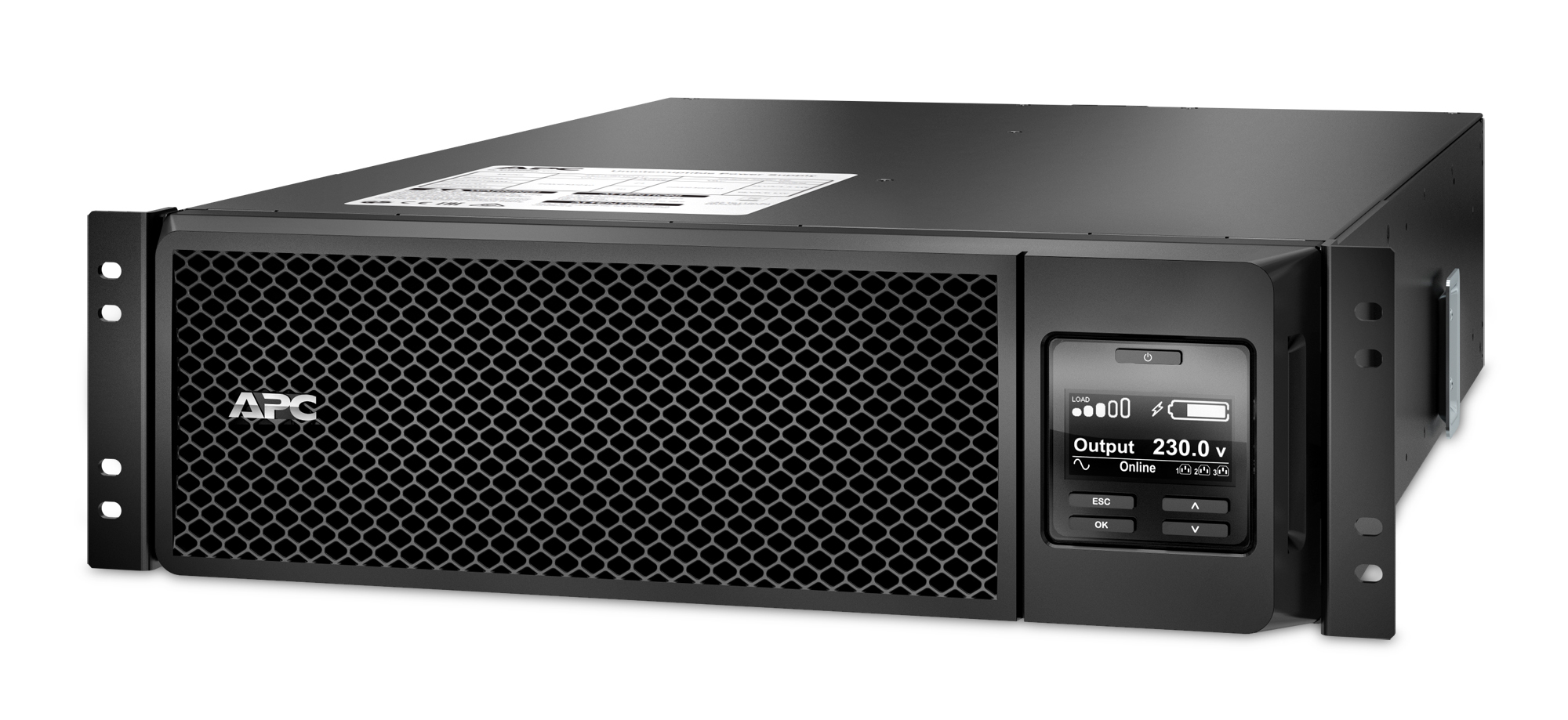

APC Smart-UPS On-Line,4500 Watts /5000 VA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 Serial, Smart-Slot, USB, Extended runtime model
Includes: Documentation CD, Installation guide, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, Temperature Probe, Warranty card
Specs
| Weight & dimensions |
| Width |
432 mm |
| Depth |
719 mm |
| Height |
130 mm |
| Weight |
54.4 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Ports & interfaces |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
Terminal |
| AC outlets quantity |
10 AC outlet(s) |
| Number of output IEC jumpers |
2 |
| USB port |
Y |
| Serial interface |
Y |
| Serial interface type |
RJ-45 |
| SmartSlot |
Y |
| Other features |
| Packaging content |
Web/SNMP Management Card |
| Battery |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery capacity |
845 VAh |
| Typical backup time at full load |
4 min |
| Typical backup time at half load |
11.8 min |
| Battery life (max) |
5 year(s) |
| Battery recharge time |
1.5 h |
| Hot-swap battery |
Y |
| Automatic battery test |
Y |
| Cold start |
Y |
| Replacement battery cartridge |
APCRBC140 |
| Design |
| Form factor |
Rackmount |
| Product colour |
Black |
| Rack capacity |
3U |
| Display |
LCD |
| Energy Star certified |
Y |
| RoHS compliance |
Y |
| Certification |
REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
| Features |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
5 kVA |
| Output power |
4500 W |
| Waveform |
Sine |
| Input operation voltage (min) |
100 V |
| Input operation voltage (max) |
275 V |
| Input frequency |
40 - 70 Hz |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Output frequency regulation |
50/60 Hz |
| Surge energy rating |
480 J |
| Efficiency |
94.1% |
| Crest factor |
3:1 |
| Emergency Power Off (EPO) |
Y |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Noise level |
55 dB |
| Surge protection |
Y |
| Audible alarm(s) |
Y |
| Auto-restart |
Y |
| Logistics data |
| Quantity per pallet |
6 pc(s) |
| Products per pallet |
6 pc(s) |
| Packaging data |
| Rack mount kit |
Y |
| Temperature sensor |
Y |
| Quick installation guide |
Y |
| Warranty card |
Y |
| Package width |
610 mm |
| Package depth |
960 mm |
| Package height |
330 mm |
| Package weight |
66.9 kg |
| Technical details |
| Sustainability certificates |
RoHS, ENERGY STAR |
