Stock Status: 1x unit in stock

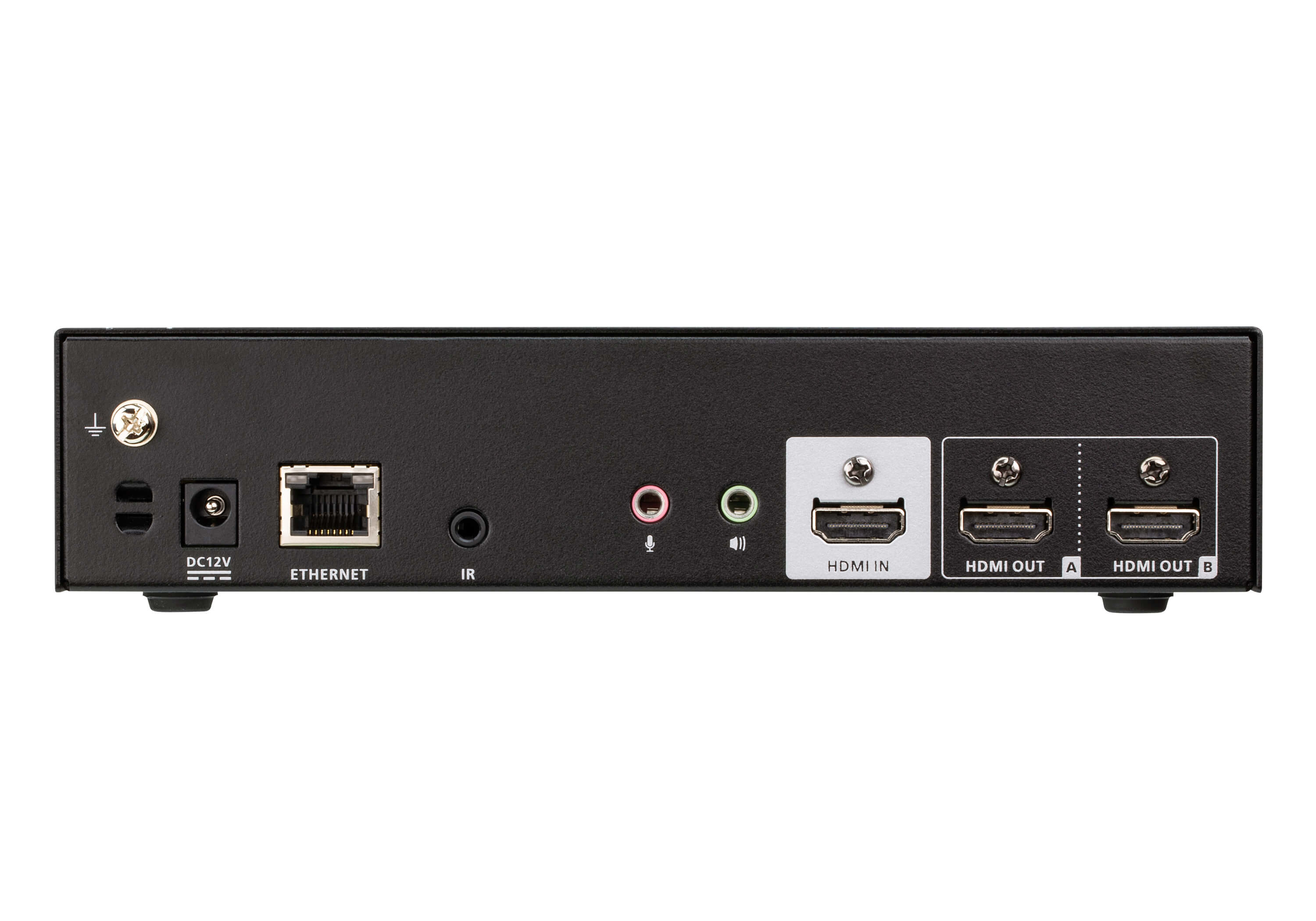

The ATEN VP2120 Seamless Presentation Switch integrates video matrix switch, AV streaming, audio mixing, and collaborative functions into one compact device. With one HDMI input, dual HDMI outputs, plus four bi-directional streaming channels, VP2120 empowers BYOD collaboration for more efficient and productive meetings in huddle spaces and huddle rooms, as well as small- to medium-size meeting rooms.
Stream from Any BYOD Device
The VP2120 allows participants to join meetings wirelessly from laptops and smartphones, making collaboration faster and easier than ever before. Just simply log-in and start sharing your presentation content from the Web GUI or from the ATEN Video Presentation Control App on any Apple or Android mobile device.
Simultaneous Bi-directional Multistreaming
Expedite collaboration with bi-directional content streaming among 4 participants simultaneously. Click the “Start Sharing” button to stream-in presentation content from your laptop or mobile device, or “Go Live” to stream-out presentation content in real-time to participants located in different rooms or separate floors.
Quad View Flexibility with Auto Layout
The built-in multi-view mode allows up to 4 streamed-in sources to be displayed in quad view on a single screen, and can dynamically adjust its layout according to the number of sources available. Participants can select a streaming-in source to enlarge and make full-screen, enhancing the flexibility of spontaneous presentation adjustments to meet the needs of fast-moving discussions.
Real-time Whiteboard Annotation
The Whiteboard facilitates discussions by enabling multiple participants to take notes and make annotations on any file in real-time. It provides an intuitive experience by featuring text input, pencil, and image uploads, as well as drag-and-drop and enlarge functions. Whiteboard contents can be saved and shared for efficient post-meeting follow-up.
Instant Chat Room Sharing
The Chat Room enhances interaction and information sharing between participants. Participants can instantly chat with each other or send files to all participants at once to ensure that everyone is on the same page and has access to relevant information for the meeting.
Mobile App for Engaging Collaboration
Join meetings via the ATEN Video Presentation Control App that allows you to share content and collaborate directly from your smartphone. This free app features sharing, Whiteboard, and Chat Room, as well as control capabilities to help you deliver smooth, engaging, and productive meetings.
Data Protection with Secure Connections
VP2120 connects to your existing network infrastructure which ensures the layer of corporate IT security protection needed, especially when it comes to sharing wirelessly. Log-ins can be controlled by randomly generated room codes to ensure that only related people have access to the meeting and the data shared during it.
Specs
| Technical details |
| Compliance certificates |
RoHS |
| Ports & interfaces |
| Video port type |
HDMI |
| HDMI ports quantity |
3 |
| HDMI in |
1 |
| Number of HDMI outputs |
2 |
| USB port type |
USB Type-A |
| RJ-45 input ports |
1 |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
169 mm |
| Depth |
200 mm |
| Height |
44 mm |
| Weight |
1.14 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Features |
| Material |
Metal |
| Product colour |
Black |
| Consumer Electronics Control (CEC) support |
Yes |
| Extended display identification data (EDID) |
Yes |
| HDCP |
Yes |
| LED indicators |
Power |
| HDCP version |
1.4 |
Features
ATEN VP2120. Video port type: HDMI, USB port type: USB Type-A. Material: Metal, Product colour: Black, LED indicators: Power. Width: 169 mm, Depth: 200 mm, Height: 44 mm
Product Description
The ATEN VP2120 Seamless Presentation Switch integrates video matrix switch, AV streaming, audio mixing, and collaborative functions into one compact device. With one HDMI input, dual HDMI outputs, plus four bi-directional streaming channels, VP2120 empowers BYOD collaboration for more efficient and productive meetings in huddle spaces and huddle rooms, as well as small- to medium-size meeting rooms.
Stream from Any BYOD Device
The VP2120 allows participants to join meetings wirelessly from laptops and smartphones, making collaboration faster and easier than ever before. Just simply log-in and start sharing your presentation content from the Web GUI or from the ATEN Video Presentation Control App on any Apple or Android mobile device.
Simultaneous Bi-directional Multistreaming
Expedite collaboration with bi-directional content streaming among 4 participants simultaneously. Click the “Start Sharing” button to stream-in presentation content from your laptop or mobile device, or “Go Live” to stream-out presentation content in real-time to participants located in different rooms or separate floors.
Quad View Flexibility with Auto Layout
The built-in multi-view mode allows up to 4 streamed-in sources to be displayed in quad view on a single screen, and can dynamically adjust its layout according to the number of sources available. Participants can select a streaming-in source to enlarge and make full-screen, enhancing the flexibility of spontaneous presentation adjustments to meet the needs of fast-moving discussions.
Real-time Whiteboard Annotation
The Whiteboard facilitates discussions by enabling multiple participants to take notes and make annotations on any file in real-time. It provides an intuitive experience by featuring text input, pencil, and image uploads, as well as drag-and-drop and enlarge functions. Whiteboard contents can be saved and shared for efficient post-meeting follow-up.
Instant Chat Room Sharing
The Chat Room enhances interaction and information sharing between participants. Participants can instantly chat with each other or send files to all participants at once to ensure that everyone is on the same page and has access to relevant information for the meeting.
Mobile App for Engaging Collaboration
Join meetings via the ATEN Video Presentation Control App that allows you to share content and collaborate directly from your smartphone. This free app features sharing, Whiteboard, and Chat Room, as well as control capabilities to help you deliver smooth, engaging, and productive meetings.
Data Protection with Secure Connections
VP2120 connects to your existing network infrastructure which ensures the layer of corporate IT security protection needed, especially when it comes to sharing wirelessly. Log-ins can be controlled by randomly generated room codes to ensure that only related people have access to the meeting and the data shared during it.
