Stock Status: 1x unit in stock

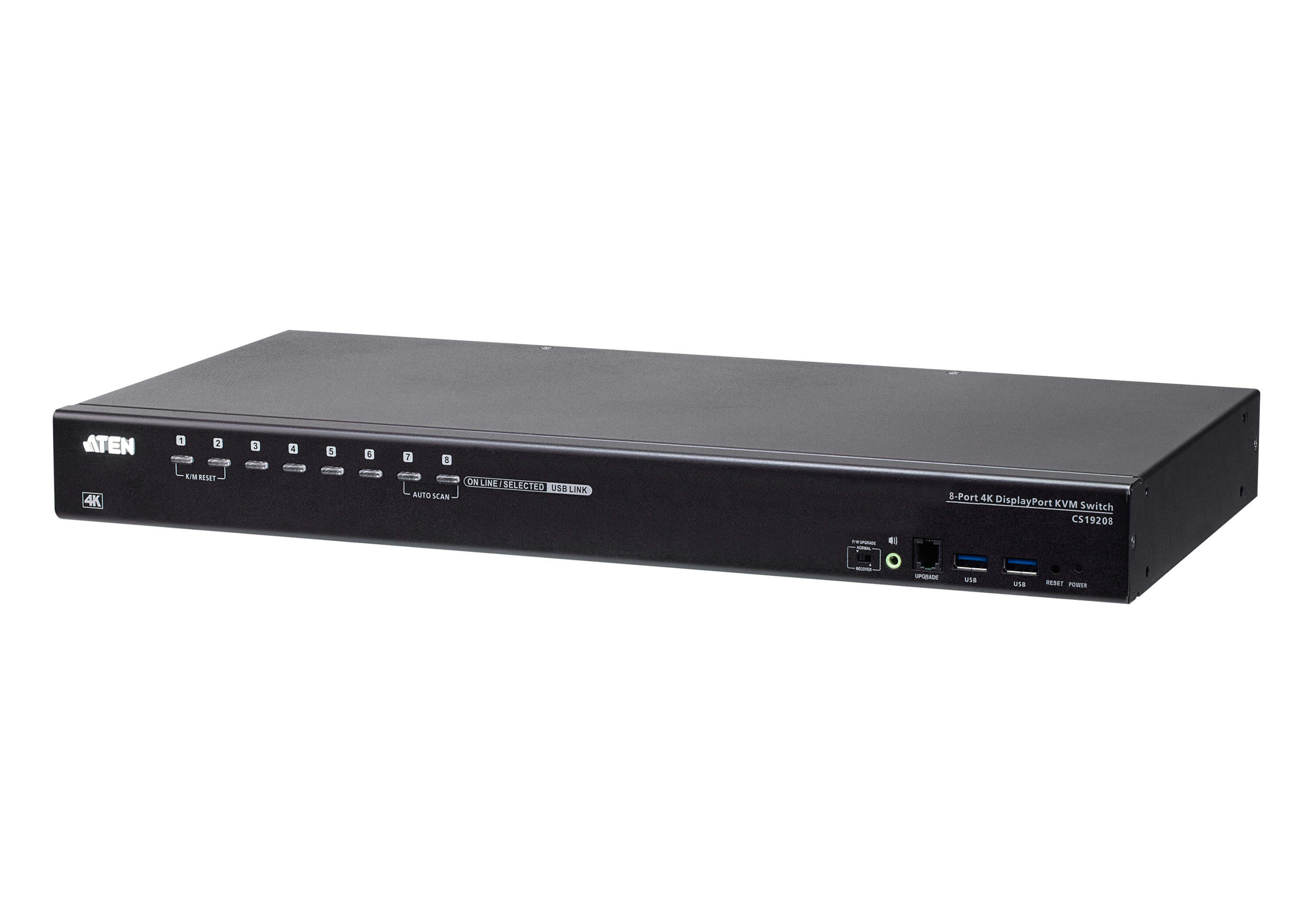

The ATEN CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch can effectively access and control up to 8 DisplayPort computers from a single USB keyboard, USB mouse, and monitor console. With its dual interface console, users can choose between DisplayPort/HDMI video output supporting high video quality up to 4K DCI (4096 x 2160 @ 60Hz), presenting crystal-clear visuals.
1x CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch with Rack Mounting Kit
2x LIN5-20K1-K13G DisplayPort 1.4 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Audio Cables
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x 0X02-0017-000G Foot Pad Set (4 pcs)
1x 0AD8-8012-33MG + LIN2-418K-E12G Power Adapter
1x User Instructions
Specs
| Ports & interfaces |
| Number of computers controlled |
8 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Console ports |
3.5mm headphone, DisplayPort, HDMI, USB A |
| DisplayPorts quantity |
8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
8 |
| Console USB ports quantity |
2 |
| USB hub |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity |
2 |
| USB connector type |
USB Type-A, USB Type-B |
| Audio connections |
Yes |
| Headphone outputs |
9 |
| Number of microphone inputs |
1 |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
432.4 mm |
| Depth |
214.3 mm |
| Height |
44 mm |
| Weight |
3.75 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage relative humidity (H-H) |
0 - 80% |
| Power |
| Input voltage |
12 V |
| Power consumption (typical) |
18.44 W |
| Display |
| Built-in display |
No |
| Packaging content |
| Quick installation guide |
Yes |
| Manual |
Yes |
| Design |
| Product colour |
Black |
| Housing material |
Metal |
| LED indicators |
Yes |
| Push button |
Yes |
| Hot keys |
Yes |
| Performance |
| HD type |
4K Ultra HD |
| Maximum resolution |
4096 x 2160 pixels |
| Video bandwidth |
60 Hz |
| Scan interval |
1,5,255 s |
| Packaging data |
| Package width |
133 mm |
| Package depth |
499 mm |
| Package height |
324 mm |
| Package weight |
4.83 kg |
Features
ATEN CS19208-AT-E. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Input voltage: 12 V, Power consumption (typical): 18.44 W. Width: 432.4 mm, Depth: 214.3 mm, Height: 44 mm
Product Description
The ATEN CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch can effectively access and control up to 8 DisplayPort computers from a single USB keyboard, USB mouse, and monitor console. With its dual interface console, users can choose between DisplayPort/HDMI video output supporting high video quality up to 4K DCI (4096 x 2160 @ 60Hz), presenting crystal-clear visuals.
1x CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch with Rack Mounting Kit
2x LIN5-20K1-K13G DisplayPort 1.4 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Audio Cables
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x 0X02-0017-000G Foot Pad Set (4 pcs)
1x 0AD8-8012-33MG + LIN2-418K-E12G Power Adapter
1x User Instructions
