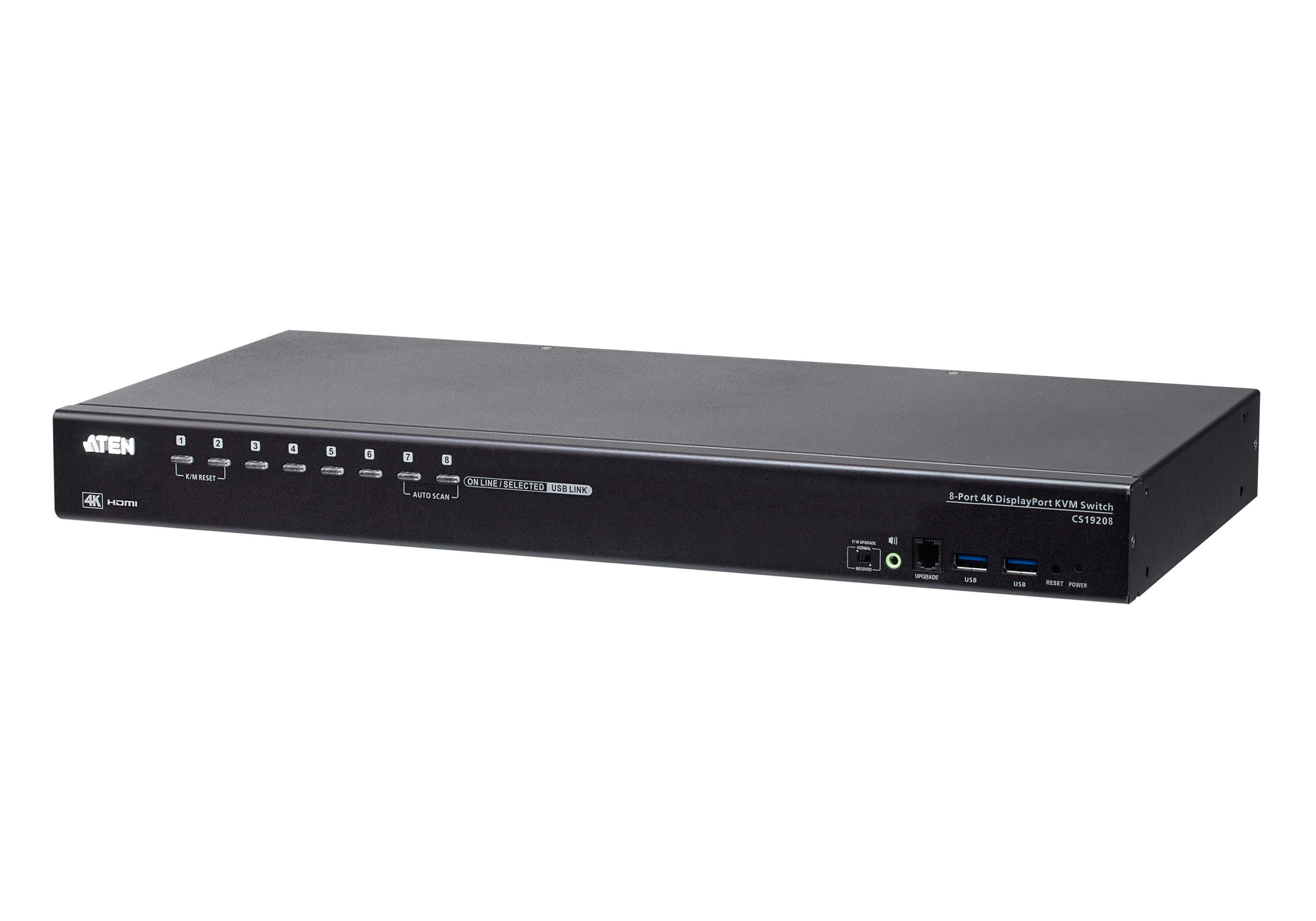

The ATEN CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch can effectively access and control up to 8 DisplayPort computers from a single USB keyboard, USB mouse, and monitor console. With its dual interface console, users can choose between DisplayPort/HDMI video output supporting high video quality up to 4K DCI (4096 x 2160 @ 60Hz), presenting crystal-clear visuals.
To meet the needs of easy expansion and flexibility, the CS19208 can be cascaded to two levels to control up to 128 computers from a single console. Furthermore, the CS19208 supports multi-display function by stacking up to eight CS19208 units to compare and analyze information on 8 monitors at most, which substantially streamlines the working environment.
With two patented ATEN technology – Video DynaSync™ and EDID Expert™ , the CS19208 can optimize display resolution, accelerate switching between ports and power up smoothly while eliminating boot-up display problems.
Besides, the CS19208 comes with a built-in USB 3.1 Gen 1 hub delivering data transfer rates up to 5 Gbps, allowing users to speed up operations and share USB peripherals instantly. For user-friendly port selection methods, the CS19208 offers pushbuttons, hotkeys, RS-232 commands, and OSD with newly-designed UI, bringing effortless and intuitive operations.
To eliminate security concern, a two-level password authorization is available to enhance security protection for accessing and controlling computers. Consolidating these advantageous functionalities, the CS19208 is ideal for server room/computer room management applied in industries with requirements for high-quality images and multitasking, such as Enterprise, Government, Production, Telecom, Finance, Medical Healthcare, Industrial Automation, etc.
Specs
| Ports & interfaces |
| Number of computers controlled |
128 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Console ports |
3.5mm headphone, DisplayPort, HDMI, USB A |
| DisplayPorts quantity |
8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
8 |
| Console USB ports quantity |
6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity |
2 |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
214.3 mm |
| Depth |
432.4 mm |
| Height |
44 mm |
| Weight |
3.11 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Power |
| Power consumption (typical) |
18.44 W |
| Packaging content |
| Cables included |
Audio (3.5mm), DisplayPort, USB |
| Manual |
Yes |
| Design |
| Rack mounting |
Yes |
| Product colour |
Black |
| Housing material |
Metal |
| LED indicators |
Yes |
| Performance |
| HD type |
4K Ultra HD |
| Maximum resolution |
4096 x 2160 pixels |
| Video bandwidth |
60 Hz |
| Auto scan delay (min) |
0 s |
| Auto scan delay (max) |
255 s |
| Firmware upgradeable |
Yes |
