Stock Status: 1x unit in stock

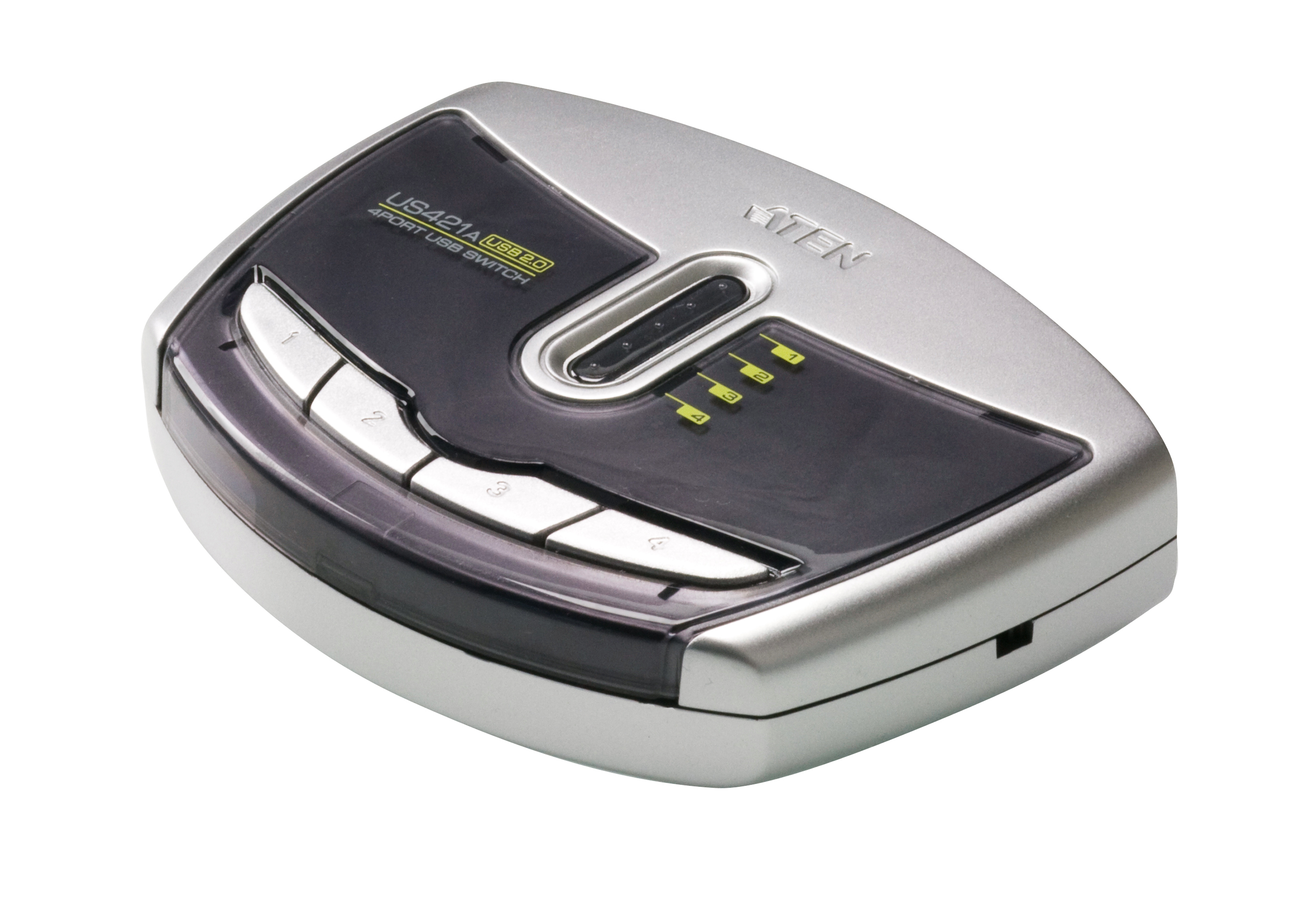

The US421A is a 4-port USB 2.0 Peripheral Switch that allows up to 4 computers to share the use of a single USB peripheral device (such as a printer, scanner, mass storage drive, etc.) on a one-at-a-time basis.
The peripheral focus can be given to a computer manually by using pushbuttons on the switch, using the software-based configuration utility, or by the Auto Switch function.
Compatible with both Windows and Mac, and with multifunction printer support, the US421A is the ideal way to share the latest USB 2.0 peripherals in a multimedia office environment.
Specs
| Ports & interfaces |
| Number of computers controlled |
4 |
| Keyboard port type |
No |
| Mouse port type |
No |
| Console ports |
USB B |
| USB 2.0 Type-B ports quantity |
4 |
| Console USB ports quantity |
4 |
| USB connector type |
USB Type-A, USB Type-B |
| USB version |
2.0 |
| Console port |
USB |
| Weight & dimensions |
| Width |
79.6 mm |
| Depth |
104 mm |
| Height |
22 mm |
| Weight |
97 g |
| Operational conditions |
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Power |
| USB powered |
Yes |
| Display |
| Built-in display |
No |
| Design |
| Rack mounting |
No |
| Product colour |
Black, Silver |
| Housing material |
Plastic |
| LED indicators |
Yes |
| Push button |
Yes |
| Performance |
| Data transfer rate (max) |
0.48 Gbit/s |
| Plug and Play |
Yes |
| Logistics data |
| Quantity per pack |
1 pc(s) |
Features
ATEN US421A. Console ports: USB B, USB connector type: USB Type-A, USB Type-B, Console port: USB. Data transfer rate (max): 0.48 Gbit/s. Product colour: Black, Silver, Housing material: Plastic. Width: 79.6 mm, Depth: 104 mm, Height: 22 mm. Quantity per pack: 1 pc(s)
Product Description
The US421A is a 4-port USB 2.0 Peripheral Switch that allows up to 4 computers to share the use of a single USB peripheral device (such as a printer, scanner, mass storage drive, etc.) on a one-at-a-time basis.
The peripheral focus can be given to a computer manually by using pushbuttons on the switch, using the software-based configuration utility, or by the Auto Switch function.
Compatible with both Windows and Mac, and with multifunction printer support, the US421A is the ideal way to share the latest USB 2.0 peripherals in a multimedia office environment.
