Stock Status: 1x unit in stock

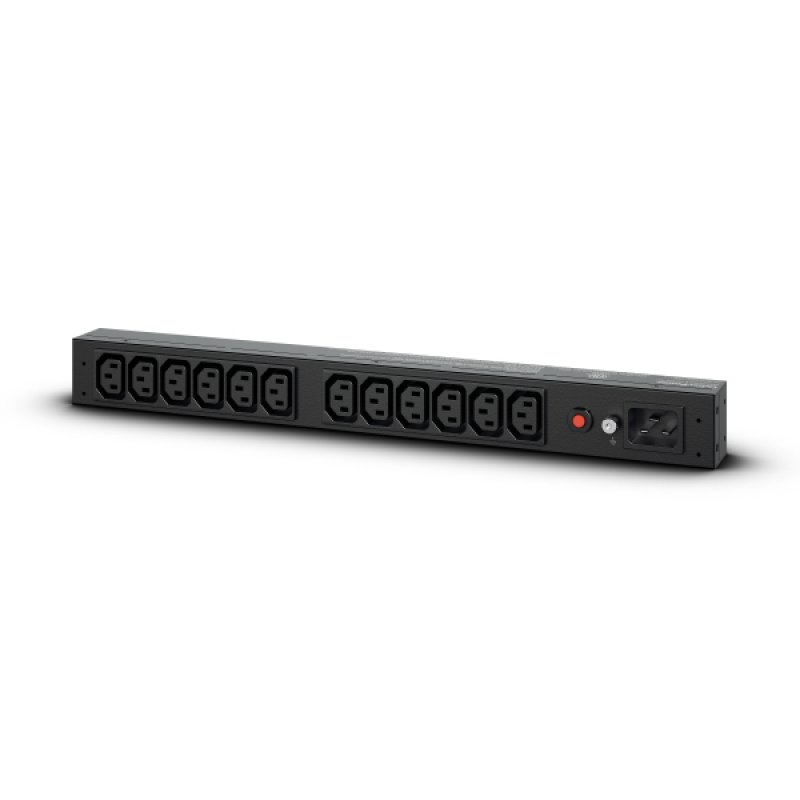

The CyberPower 12-outlet (12 Rear) rack mount basic power distribution unit (PDU20BHVIEC12R) provides 208V/230V 20A output. It distributes power to 12 IEC-320 C13 receptacles from a single IEC-320 C20 plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- 12 IEC-320 C13 output receptacles
- Single IEC-320 C20 plug
- 20-amp electrical capacity with circuit breaker
- 208/230V - 50/60Hz
- 1U rack mount
- 10-ft. power cord
Specs
| Weight & dimensions |
| Width |
445 mm |
| Depth |
38.1 mm |
| Height |
44.5 mm |
| Weight |
900 g |
| Weight (imperial) |
0.907 kg (2 lbs) |
| Dimensions (W x D x H) (imperial) |
444.5 x 38.1 x 44.5 mm (17.5 x 1.5 x 1.75") |
| Operational conditions |
| Operating temperature (T-T) |
32 - 95 °F |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Power |
| Nominal input voltage |
200 - 240 V |
| Maximum current |
16 A |
| AC input frequency |
50 / 60 Hz |
| Nominal output voltage |
200 - 240 V |
| Power protection features |
Overload |
| Surge protection |
Yes |
| Circuit breaker |
Yes |
| Ports & interfaces |
| AC outlets quantity |
12 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C20 coupler |
| Packaging content |
| Packaging content |
PDU20BHVIEC12R, User's Manual, Product Registration Card, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit |
| Design |
| PDU types |
Basic |
| Rack capacity |
1U |
| Type |
Single-phase |
| Mounting |
Horizontal/Vertical |
| Housing material |
Steel |
| Product colour |
Black |
| Features |
| Cable length |
3.05 m |
| Logistics data |
| Warranty period |
2 year(s) |
| Packaging data |
| Package weight |
15 kg |
| Package width |
530 mm |
| Package depth |
330 mm |
| Package height |
233 mm |
| Certification |
| Compliance certificates |
RoHS |
| Certification |
UL60950_1 ETL, CSA C22.2 |
| Sustainability |
| Sustainability compliance |
Yes |
Features
CyberPower PDU20BHVIEC12R. PDU types: Basic, Rack capacity: 1U, Type: Single-phase. AC outlets quantity: 12 AC outlet(s), AC outlet types: C13 coupler, Power plug: C20 coupler. Cable length: 3.05 m. Nominal input voltage: 200 - 240 V, Maximum current: 16 A, AC input frequency: 50 / 60 Hz. Compliance certificates: RoHS, Certification: UL60950_1 ETL, CSA C22.2
Product Description
The CyberPower 12-outlet (12 Rear) rack mount basic power distribution unit (PDU20BHVIEC12R) provides 208V/230V 20A output. It distributes power to 12 IEC-320 C13 receptacles from a single IEC-320 C20 plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- 12 IEC-320 C13 output receptacles
- Single IEC-320 C20 plug
- 20-amp electrical capacity with circuit breaker
- 208/230V - 50/60Hz
- 1U rack mount
- 10-ft. power cord
