No compromise silence and performance

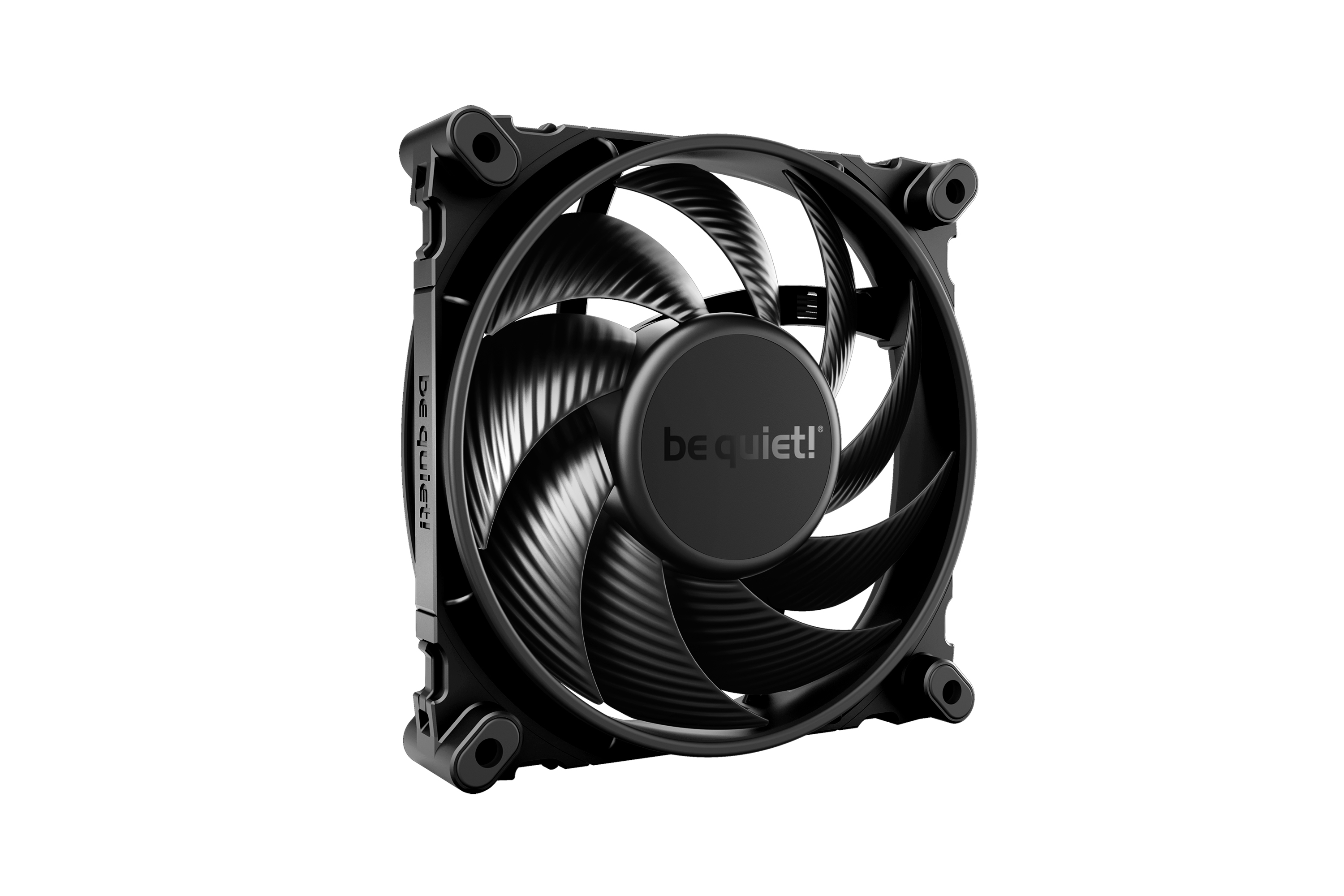

Silent Wings 4 120mm PWM high-speed combines all features of a virtually inaudible with an extremely performant fan. A 6-pol-motor and anti-vibration mountings combined with fan blades optimized for maximum airflow make Silent Wings 4 120mm PWM high-speed the perfect choice for the most demanding applications in high-end systems.
Specs
| Weight & dimensions |
| Width |
120 mm |
| Depth |
120 mm |
| Height |
25 mm |
| Weight |
190 g |
| Cable length |
0.5 m |
| Package width |
141 mm |
| Package depth |
192 mm |
| Package height |
31 mm |
| Package weight |
346 g |
| Power |
| Power consumption (typical) |
2.4 W |
| Voltage |
5 - 13.2 V |
| Rated voltage |
12 V |
| Rated current |
0.2 A |
| Maximum current |
0.22 A |
| Other features |
| Country of origin |
China |
| Packaging content |
| Screws included |
Yes |
| Number of screws |
4 |
| Number of clips |
4 |
| Design |
| Product colour |
Black |
| Fan connector |
4-pin |
| Certification |
CE / ROHS / RU / UKCA / TÜV / WEEE |
| Performance |
| Suitable location |
Computer case |
| Type |
Fan |
| Fan diameter |
12 cm |
| Rotational speed (max) |
2500 RPM |
| Noise level (high speed) |
31.2 dB |
| Maximum airflow |
76.7 cfm |
| Airflow |
130.31 m³/h |
| Maximum air pressure |
3.96 mmH2O |
| Pulse-width modulation (PWM) support |
Yes |
| Bearing type |
Fluid Dynamic Bearing (FDB) |
| Quantity per pack |
1 pc(s) |
| Mean time between failures (MTBF) |
300000 h |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
| Products per shipping (inner) case |
40 pc(s) |
| Shipping (inner) case width |
38.7 cm |
| Shipping (inner) case length |
43.2 cm |
| Shipping (inner) case height |
37.5 cm |
| Shipping (inner) case gross weight |
15 kg |
Features
be quiet! SILENT WINGS 4 | 120mm PWM high-speed. Type: Fan, Fan diameter: 12 cm, Rotational speed (max): 2500 RPM, Airflow: 130.31 m³/h, Maximum air pressure: 3.96 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 5 - 13.2 V. Width: 120 mm, Depth: 120 mm, Height: 25 mm. Product colour: Black
Product Description
No compromise silence and performance
Silent Wings 4 120mm PWM high-speed combines all features of a virtually inaudible with an extremely performant fan. A 6-pol-motor and anti-vibration mountings combined with fan blades optimized for maximum airflow make Silent Wings 4 120mm PWM high-speed the perfect choice for the most demanding applications in high-end systems.
