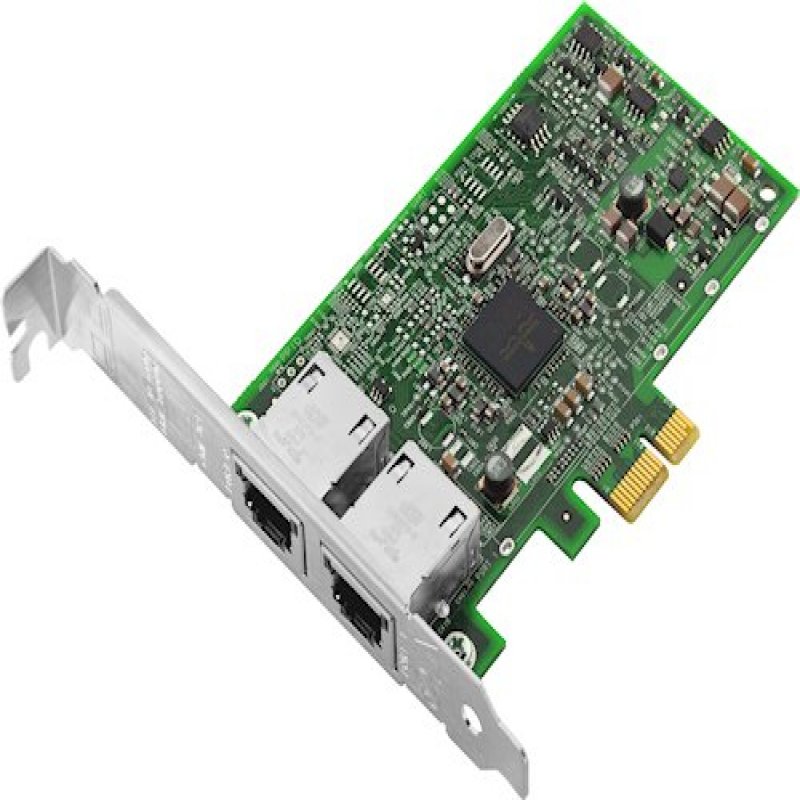

The Broadcom NetXtreme Gigabit Ethernet Adapters are a family of high performance PCI Express adapters. The adapters are available with either two ports or four ports and are supported on ThinkSystem and System x servers.
This product guide provides essential presales information to understand the NetXtreme GbE offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
Specs
| Networking |
| Maximum data transfer rate |
1000 Mbit/s |
| Networking standards |
IEEE 802.1Q,IEEE 802.3az |
| Ethernet LAN |
Y |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000BaseT(X) |
| Jumbo frames support |
Y |
| Jumbo frames |
9600 |
| iSCSI support |
Y |
| LAN controller |
Broadcom BCM5720 |
| System requirements |
| Compatible operating systems |
Microsoft Windows Server 2008 HPC Edition, Windows 2008HPC
Microsoft Windows Server 2008 R2
Microsoft Windows Server 2008, Datacenter x64 Edition
Microsoft Windows Server 2008, Enterprise x64 Edition
Microsoft Windows Server 2008, Enterprise x86 Edition
M |
| Weight & dimensions |
| Width |
109 mm |
| Depth |
19 mm |
| Height |
69 mm |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
PCI Express |
| Interface |
Ethernet |
| Ethernet LAN (RJ-45) ports |
2 |
| PCI version |
2.0 |
| PCI Card form factor |
Full-height (low-profile) |
| Other features |
| Flow control support |
Y |
| Design |
| Internal |
Y |
| Product colour |
Green |
| LED indicators |
Y |
| Certification |
EN55022
EN55024
EN60950 / CE
EN 61000-3-2
EN 61000-3-3
ICES-003, Issue-004
IEC 950 CB Scheme
FCC 47 CFR Part 15 Class A
UL 1950
CSA C22.2 950-95
VCCI
AS/NZSCISPR 22 / C-tick
RRL for KC
BSMI
UL 94-/V |
| Packaging data |
| Quantity |
1 |
| Sustainability |
| Sustainability certificates |
RoHS |
Features
Lenovo AUZX. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s. Product colour: Green
Product Description
The Broadcom NetXtreme Gigabit Ethernet Adapters are a family of high performance PCI Express adapters. The adapters are available with either two ports or four ports and are supported on ThinkSystem and System x servers.
This product guide provides essential presales information to understand the NetXtreme GbE offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
