Stock Status: 1x unit in stock

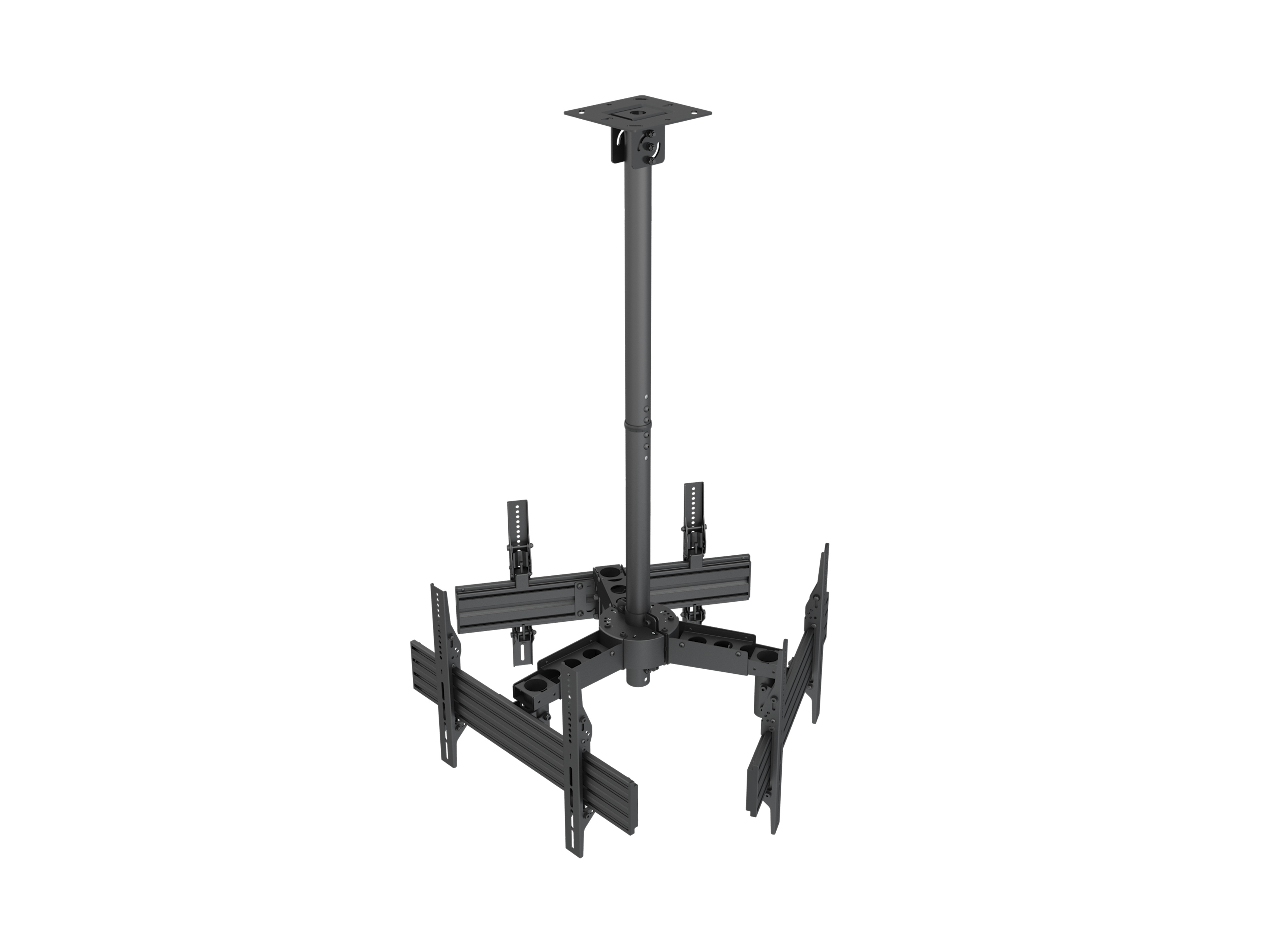

Multibrackets Pro Series M Ceiling Mount Pro MBC3U is our innovative - ready to be installed Triple Side-Display Ceiling Mount.
The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Ceiling Mount Pro MBC3U is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.
With its modular construction installers have vast possibilities to change, update and reconfigure its design if ideas change over time then Pro Series can follow.
Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.
The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. The Pro Series includes hardware so that a basic installation should not be a hassle.
Multibrackets Pro Series Public Ceiling Mounts is ideal for any large screen digital signage ceiling application.
Specs
| Weight & dimensions |
| Weight |
23 kg |
| Width |
3380 mm |
| Depth |
1020 mm |
| Height |
1170 mm |
| Ergonomics |
| Height adjustment |
Y |
| Height adjustment type |
Manual |
| Height adjustment range |
580 - 1550 mm |
| Tilt angle range |
0 - 15° |
| Swivel angle |
360° |
| Angle of rotation |
8° |
| Cable management |
Y |
| Ceiling mounting tube length (min) |
58 cm |
| Ceiling mounting tube length (max) |
155 cm |
| Weight & dimensions |
| Width |
3380 mm |
| Depth |
1020 mm |
| Height |
1170 mm |
| Weight |
23 kg |
| Ergonomics |
| Height adjustment |
Y |
| Height adjustment type |
Manual |
| Height adjustment range |
580 - 1550 mm |
| Tilt angle range |
0 - 15° |
| Swivel angle |
360° |
| Angle of rotation |
8° |
| Ceiling mounting tube length (min) |
58 cm |
| Ceiling mounting tube length (max) |
155 cm |
| Mounting |
| Maximum weight capacity |
90 kg |
| Maximum screen size compatibility |
165.1 cm (65") |
| Minimum screen size compatibility |
101.6 cm (40") |
| Suitable for |
Public display |
| Minimum VESA mount |
100 x 100 mm |
| Maximum VESA mount |
800 x 600 mm |
| Number of displays supported |
3 |
| Panel mounting interface |
100 x 100,600 x 400,800 x 600 |
| Maximum weight capacity |
90 kg |
| Maximum screen size |
165.1 cm (65") |
| Mounting type |
Ceiling |
| Minimum VESA mount |
100 x 100 mm |
| Maximum VESA mount |
800 x 600 mm |
| Minimum screen size |
101.6 cm (40") |
| Panel mounting interface |
100 x 100,600 x 400,800 x 600 |
| Number of displays supported |
3 |
| Design |
| Product colour |
Black |
| Housing material |
Aluminium, Steel |
| Certification |
TÜV, CE |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
300 mm |
| Package depth |
860 mm |
| Package height |
210 mm |
| Package weight |
28 kg |
| Package width |
300 mm |
| Package depth |
860 mm |
| Package height |
210 mm |
| Package weight |
28 kg |
| Quantity per pack |
1 pc(s) |
| Logistics data |
| Shipping (inner) case width |
30 cm |
| Shipping (inner) case length |
86 cm |
| Shipping (inner) case height |
21 cm |
| Shipping (inner) case weight |
26.6 kg |
| Quantity per shipping (inner) case |
1 pc(s) |
| Shipping (inner) case width |
30 cm |
| Shipping (inner) case length |
86 cm |
| Shipping (inner) case height |
21 cm |
| Shipping (inner) case weight |
26.6 kg |
| Quantity per shipping (inner) case |
1 pc(s) |
| Shipping (inner) case gross weight |
26.6 kg |
| Products per shipping (inner) case |
1 pc(s) |
| Design |
| Product colour |
Black |
| Housing material |
Aluminium,Steel |
| Cord management |
Y |
| Certification |
TÜV, CE |
Features
Multibrackets M Ceiling Mount Pro MBC3U. Maximum weight capacity: 90 kg, Minimum screen size: 101.6 cm (40"), Maximum screen size: 165.1 cm (65"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 800 x 600 mm. Height adjustment range: 580 - 1550 mm, Tilt angle range: 0 - 15°, Swivel angle: 360°. Product colour: Black
Product Description
Multibrackets Pro Series M Ceiling Mount Pro MBC3U is our innovative - ready to be installed Triple Side-Display Ceiling Mount.
The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Ceiling Mount Pro MBC3U is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.
With its modular construction installers have vast possibilities to change, update and reconfigure its design if ideas change over time then Pro Series can follow.
Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.
The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. The Pro Series includes hardware so that a basic installation should not be a hassle.
Multibrackets Pro Series Public Ceiling Mounts is ideal for any large screen digital signage ceiling application.
