Stock Status: 1x unit in stock
The Cisco® 10GBASE SFP+ modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.
Main features of Cisco 10GBASE SFP+ modules include:
-Smallest 10G form factor.
-Supports 10GBASE Ethernet.
-Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a Cisco switch.
-Provides flexibility of interface choice.
-Supports "pay-as-you-populate" model.
-Supports the Cisco quality identification (ID) feature that enables a Cisco switch to identify whether the module is certified and tested by Cisco.
-Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link.
The Cisco 10GBASE-SR Module supports a link length of 26m on standard Fiber Distributed Data Interface (FDDI)-grade multimode fiber (MMF). Using 2000 MHz*km MMF (OM3), up to 300m link lengths are possible.
Specs
| Weight & dimensions |
| Weight |
75 g |
| Width |
13.4 mm |
| Depth |
56.5 mm |
| Height |
8.5 mm |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Other features |
| Dimensions (WxDxH) |
13.4 x 56.5 x 8.5 mm |
| Interface |
SFP |
| Connector(s) |
LC/PC |
| Fiber type |
MMF |
| Performance |
| Maximum transfer distance |
300 m |
| Wavelength |
850 nm |
| Management features |
| Hot-swap |
Y |
Features

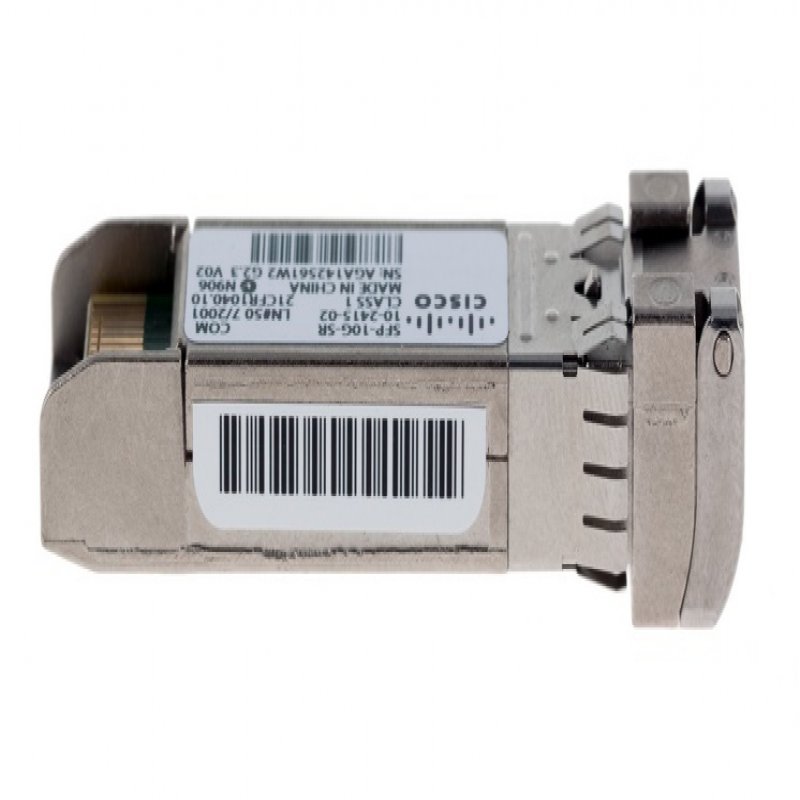

Cisco SFP-10G-SR=. Connectivity technology: Wired. Maximum transfer distance: 300 m, Wavelength: 850 nm. Width: 13.4 mm, Depth: 56.5 mm, Height: 8.5 mm. Interface: SFP, Connector(s): LC/PC, Fiber type: MMF
Product Description
The Cisco® 10GBASE SFP+ modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.
Main features of Cisco 10GBASE SFP+ modules include:
-Smallest 10G form factor.
-Supports 10GBASE Ethernet.
-Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a Cisco switch.
-Provides flexibility of interface choice.
-Supports "pay-as-you-populate" model.
-Supports the Cisco quality identification (ID) feature that enables a Cisco switch to identify whether the module is certified and tested by Cisco.
-Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link.
The Cisco 10GBASE-SR Module supports a link length of 26m on standard Fiber Distributed Data Interface (FDDI)-grade multimode fiber (MMF). Using 2000 MHz*km MMF (OM3), up to 300m link lengths are possible.
