Stock Status: 1x unit in stock
Incredibly powerful Thunderbolt Dock delivers up to 210W

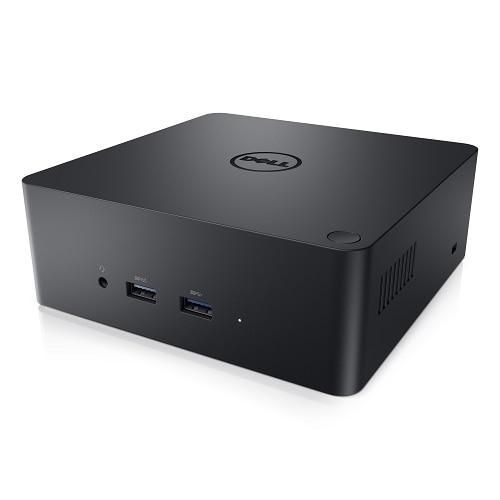

Introducing Dell’s most powerful dock to date, the Dell Precision Dual USB-C Thunderbolt Dock - TB18DC for Precision 7530 and 7730 workstations, offering incredibly high power delivery of up to 210W. Charge up to 80% of your Precision 7530 or 7730 within an hour, and be fully charged in under two hours with Dell ExpressCharge. You’ll be ready to move at a moment’s notice with plenty of battery backing you up.
Lightning fast data transfer speeds
Transfer large files at lightning fast speeds of up to 40Gbps when you connect Thunderbolt storage devices
One cable for both docking and power
Leave your power brick at home and conveniently plug in one cable to dock and power your laptop. Boost productivity with the ability to connect up to three Full HD displays, or two 4K displays, and Thunderbolt/USB peripherals with a single cable.
Flexible placement with 0.8m cable length
With the flexibility of a long, 0.8m cable length you can place your dock just about anywhere in your workspace.
Most manageable with Dell Business Class features
The dock supports Dell Business Class features which allows for easy manageability. ITDMs will be able to remotely troubleshoot, manage systems, and secure dock ports.
Specs
| Weight & dimensions |
| Width |
145 mm |
| Depth |
145 mm |
| Height |
52 mm |
| Height (front) |
5.2 cm |
| Height (rear) |
5.2 cm |
| Weight |
720 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| HDMI ports quantity |
1 |
| Microphone in |
Y |
| Headphone outputs |
1 |
| DisplayPorts quantity |
2 |
| Thunderbolt 3 ports quantity |
1 |
| Headphone connectivity |
3.5 mm |
| Line-in |
Y |
| Line-out |
Y |
| USB connector type |
USB Type-A, USB Type-B |
| DC-in jack |
Y |
| Power |
| Power source type |
DC |
| AC input voltage |
120-230 V |
| AC input frequency |
50 - 60 Hz |
| Power supply |
210 W |
| Packaging content |
| Warranty card |
Y |
| Cables included |
Thunderbolt |
| Manual |
Y |
| Drivers included |
Y |
| Networking |
| Ethernet LAN |
Y |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Copper ethernet cabling technology |
10BASE-T,100BASE-T,100BASE-TX,1000BASE-T,1000BASE-TX |
| Performance |
| Product colour |
Black |
| Card reader integrated |
N |
| Maximum digital resolution |
3840 x 2160 pixels |
| Number of displays supported |
3 |
| Cable lock slot |
Y |
| Compatibility |
Precision Mobile Workstation 7530, 7730 |
| Software |
| Windows operating systems supported |
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Wind |
| Linux operating systems supported |
Ubuntu 16.04 |
Features
DELL TB18DC. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B, Headphone connectivity: 3.5 mm. Ethernet LAN data rates: 10,100,1000 Mbit/s, Copper ethernet cabling technology: 10BASE-T,100BASE-T,100BASE-TX,1000BASE-T,1000BASE-TX. Product colour: Black, Maximum digital resolution: 3840 x 2160 pixels, Compatibility: Precision Mobile Workstation 7530, 7730. Power source type: DC, AC input voltage: 120-230 V, AC input frequency: 50 - 60 Hz. Windows operating systems supported: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10..., Linux operating systems supported: Ubuntu 16.04
Product Description
Incredibly powerful Thunderbolt Dock delivers up to 210W
Introducing Dell’s most powerful dock to date, the Dell Precision Dual USB-C Thunderbolt Dock - TB18DC for Precision 7530 and 7730 workstations, offering incredibly high power delivery of up to 210W. Charge up to 80% of your Precision 7530 or 7730 within an hour, and be fully charged in under two hours with Dell ExpressCharge. You’ll be ready to move at a moment’s notice with plenty of battery backing you up.
Lightning fast data transfer speeds
Transfer large files at lightning fast speeds of up to 40Gbps when you connect Thunderbolt storage devices
One cable for both docking and power
Leave your power brick at home and conveniently plug in one cable to dock and power your laptop. Boost productivity with the ability to connect up to three Full HD displays, or two 4K displays, and Thunderbolt/USB peripherals with a single cable.
Flexible placement with 0.8m cable length
With the flexibility of a long, 0.8m cable length you can place your dock just about anywhere in your workspace.
Most manageable with Dell Business Class features
The dock supports Dell Business Class features which allows for easy manageability. ITDMs will be able to remotely troubleshoot, manage systems, and secure dock ports.
