Stock Status: 1x unit in stock

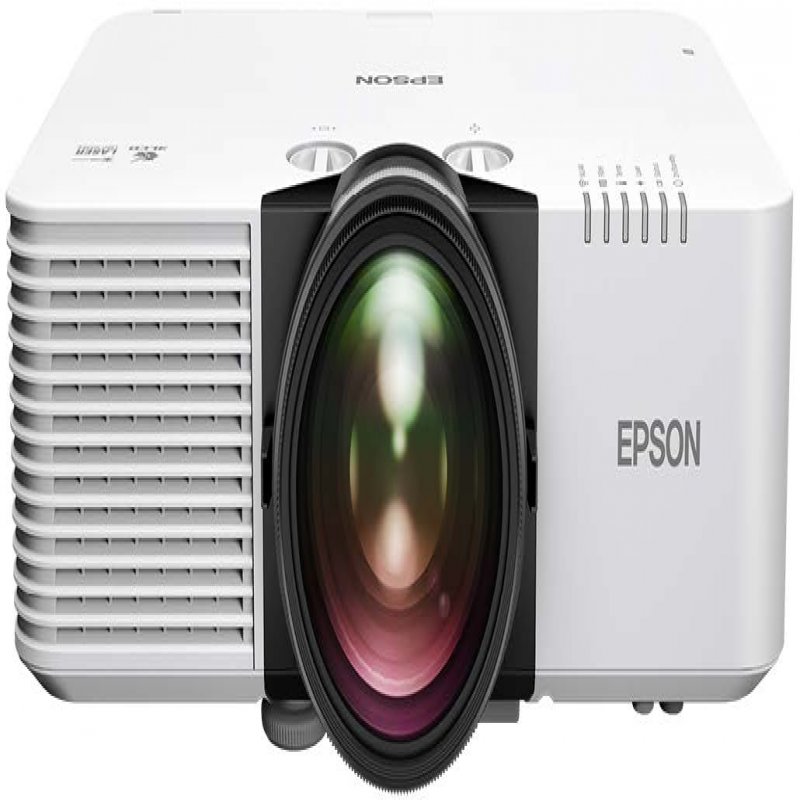

Designed for compact spaces, the EB-L690SU short-throw offers 6,200 lumens of bright WUXGA resolution, HDR and advanced installation features. It provides up to 30,000 hours of maintenance-free projection in Eco mode, lens shift, 1.7x zoom and 10W speakers. Ideal for professional applications with flexible control options via HDBaseT, LAN, and wireless.
Spectacular short throw professional projector
Create stunning, shadow-free presentations in compact spaces with a short throw ratio of 0.79–1.36:1, built-in lens shift and WUXGA resolution. Featuring 1.7x optical zoom, corner focus and display sizes up to 400", this high-performance display is ideal for sports simulators, visitor attractions, retail and more. Its compact design, low noise and sleek white chassis deliver bright, vibrant, crystal-clear images, even in well-lit environments, ensuring exceptional visuals.
Flexible installation for professional setups
Designed for easy installation, the EB-L690SU can be quickly configured to deliver optimal performance in any room layout. Features such as lens shift, horizontal and vertical keystone correction, and 360° projection ensure precise image positioning. Options like split-screen capabilities, edge blending, and geometry correction, along with the optional ELPEC01 camera and Epson Projector Professional Tool, provide fast setup and calibration, offering flexibility for complex installations.
Smart control for seamless experience
Enhance usability with NFC for easy large-scale rollouts using the Epson Projector Config Tool. The user-friendly OSD menu simplifies navigation, while Epson’s EPMC cloud monitoring allows effortless remote management. Fully compatible with Crestron XiO Cloud, it offers centralised control, and OTA firmware updates ensure the display remains up-to-date for a seamless experience.
Peace of mind with high durability and support
Engineered for long-lasting performance, the EB-L690SU features fit-and-forget laser technology, backed by a 3-year warranty. It minimises maintenance needs, reduces downtime, and offers peace of mind with Epson’s renowned after-sales support.
Environmentally friendly design
Built with sustainability in mind, our projectors are manufactured using 100% renewable electricity and packaged in 100% recyclable cardboard. With low maintenance and energy consumption and benefits from end-of-life recycling and energy recovery services across Europe.
Stream and share easily
With Apple AirPlay 2 and Miracast connectivity, sharing content is quick and simple - users can wirelessly mirror their device screens to the display for seamless collaboration. The USB-A port also enables PC-free streaming, while additional options like HDBaseT and HDMI daisy-chaining further enhance flexibility.
Specs
| Weight & dimensions |
| Weight |
8.9 kg |
| Width |
440 mm |
| Depth |
362 mm |
| Height |
151 mm |
| Operational conditions |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Projector |
| Projector brightness |
6200 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
WUXGA (1920x1200) |
| Contrast ratio (typical) |
5000000:1 |
| Native aspect ratio |
16:10 |
| Screen size compatibility |
1524 - 10160 mm (60 - 400") |
| Supported aspect ratios |
16:10, 16:6, 21:9 |
| Projection distance |
1.02 - 11.89 m |
| Projection distance (wide) |
1 - 7 m |
| Projection distance (tele) |
1.8 - 11.9 m |
| Number of colours |
1.07 billion colours |
| Projector brightness (economic mode) |
4340 ANSI lumens |
| Keystone correction, horizontal |
-30 - 30° |
| Keystone correction, vertical |
-30 - 30° |
| Video |
| Analog signal format system |
Not supported |
| Full HD |
Yes |
| 3D |
No |
| Video colour modes |
Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation |
| Display |
| Built-in display |
Yes |
| Display |
LCD |
| Display diagonal |
1.7 cm (0.67") |
| Lens system |
| Focus |
Manual |
| Focal length range |
11.6 - 19.9 mm |
| Aperture range (F-F) |
1.7 - 2.1 |
| Zoom capability |
Yes |
| Zoom type |
Manual |
| Zoom ratio |
1.2:1 |
| Throw ratio |
0.79 - 1.36:1 |
| Horizontal lens shift range |
-20 - 20% |
| Vertical lens shift range |
-50 - 50% |
| Power |
| Power source |
AC |
| Power consumption (typical) |
336 W |
| Power consumption (standby) |
0.4 W |
| Power consumption (max) |
399 W |
| Power consumption (economy mode) |
233 W |
| AC input frequency |
50/60 Hz |
| AC adapter output voltage |
100 - 240 V |
| Ports & interfaces |
| VGA (D-Sub) ports quantity |
0 |
| HDMI ports quantity |
2 |
| DVI port |
No |
| Serial interface type |
RS-232C |
| HDBaseT port |
Yes |
| USB 2.0 ports quantity |
3 |
| USB 2.0 Type-A ports quantity |
2 |
| USB 2.0 Type-B ports quantity |
1 |
| Networking |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Miracast |
Yes |
| Apple AirPlay 2 support |
Yes |
| Storage |
| Card reader integrated |
No |
| Packaging content |
| Remote control included |
Yes |
| Batteries included |
Yes |
| Cables included |
Power |
| Other features |
| Supported network protocols |
HTTPS, SNMP, ESC/VP.net, PJLink |
| RS-232C |
Yes |
| Design |
| Product type |
Short throw projector |
| Market positioning |
Education |
| Product colour |
White |
| Placement |
Ceiling, Desktop |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Multimedia |
| Built-in speaker(s) |
Yes |
| RMS rated power |
10 W |
| Technical details |
| Warranty period |
3 year(s) |
| Features |
| Noise level |
34 dB |
| Interactive |
No |
| Noise level (economic mode) |
25 dB |
| HDCP |
Yes |
| Preset modes |
Cinema, Dynamic, Presentation |
| On Screen Display (OSD) |
Yes |
| HDCP version |
2.3 |
| Password protection |
Yes |
| Light source |
| Light source type |
Laser |
| Service life of light source |
20000 h |
| Service life of light source (economic mode) |
30000 h |
Features
Epson EB-L690SU. Projector brightness: 6200 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 11.6 - 19.9 mm, Aperture range (F-F): 1.7 - 2.1. Video colour modes: Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation. Serial interface type: RS-232C
Product Description
Designed for compact spaces, the EB-L690SU short-throw offers 6,200 lumens of bright WUXGA resolution, HDR and advanced installation features. It provides up to 30,000 hours of maintenance-free projection in Eco mode, lens shift, 1.7x zoom and 10W speakers. Ideal for professional applications with flexible control options via HDBaseT, LAN, and wireless.
Spectacular short throw professional projector
Create stunning, shadow-free presentations in compact spaces with a short throw ratio of 0.79–1.36:1, built-in lens shift and WUXGA resolution. Featuring 1.7x optical zoom, corner focus and display sizes up to 400", this high-performance display is ideal for sports simulators, visitor attractions, retail and more. Its compact design, low noise and sleek white chassis deliver bright, vibrant, crystal-clear images, even in well-lit environments, ensuring exceptional visuals.
Flexible installation for professional setups
Designed for easy installation, the EB-L690SU can be quickly configured to deliver optimal performance in any room layout. Features such as lens shift, horizontal and vertical keystone correction, and 360° projection ensure precise image positioning. Options like split-screen capabilities, edge blending, and geometry correction, along with the optional ELPEC01 camera and Epson Projector Professional Tool, provide fast setup and calibration, offering flexibility for complex installations.
Smart control for seamless experience
Enhance usability with NFC for easy large-scale rollouts using the Epson Projector Config Tool. The user-friendly OSD menu simplifies navigation, while Epson’s EPMC cloud monitoring allows effortless remote management. Fully compatible with Crestron XiO Cloud, it offers centralised control, and OTA firmware updates ensure the display remains up-to-date for a seamless experience.
Peace of mind with high durability and support
Engineered for long-lasting performance, the EB-L690SU features fit-and-forget laser technology, backed by a 3-year warranty. It minimises maintenance needs, reduces downtime, and offers peace of mind with Epson’s renowned after-sales support.
Environmentally friendly design
Built with sustainability in mind, our projectors are manufactured using 100% renewable electricity and packaged in 100% recyclable cardboard. With low maintenance and energy consumption and benefits from end-of-life recycling and energy recovery services across Europe.
Stream and share easily
With Apple AirPlay 2 and Miracast connectivity, sharing content is quick and simple - users can wirelessly mirror their device screens to the display for seamless collaboration. The USB-A port also enables PC-free streaming, while additional options like HDBaseT and HDMI daisy-chaining further enhance flexibility.
