| Weight & dimensions |
| Weight |
5.7 kg |
| Width |
367 mm |
| Depth |
400 mm |
| Height |
149 mm |
| Package width |
490 mm |
| Package depth |
730 mm |
| Package height |
335 mm |
| Package weight |
18.5 kg |
| Operational conditions |
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Projector |
| Projector brightness |
3500 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
WXGA (1280x800) |
| Contrast ratio (typical) |
300:1 |
| Native aspect ratio |
16:10 |
| Screen size compatibility |
1524 - 2540 mm (60 - 100") |
| Supported aspect ratios |
16:10 |
| Projection distance |
0.4 - 0.6 m |
| Projection distance (wide) |
0 - 0.4 m |
| Projection distance (tele) |
0 - 0.6 m |
| Contrast ratio (dynamic) |
14000:1 |
| Number of colours |
1.073 billion colours |
| Projector brightness (economic mode) |
2900 ANSI lumens |
| Keystone correction, horizontal |
±3° |
| Keystone correction, vertical |
±3° |
| Matrix size |
1.5 cm (0.59") |
| Video |
| Full HD |
No |
| 3D |
No |
| HD-Ready |
Yes |
| Video processing |
10 bit |
| Colour modes (2D) |
Cinema, Dynamic |
| Video colour modes |
Blackboard, Cinema, Dynamic, Presentation, sRGB |
| Display |
| Built-in display |
No |
| Lens system |
| Focus |
Manual |
| Focal length range |
0 - 3.76 mm |
| Zoom capability |
Yes |
| Zoom ratio |
1.35:1 |
| Digital zoom |
1.35x |
| Power |
| Power source |
AC |
| Power consumption (typical) |
354 W |
| Power consumption (standby) |
0.39 W |
| Power consumption (PowerSave) |
310 W |
| AC input voltage |
220 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Ports & interfaces |
| VGA (D-Sub) ports quantity |
3 |
| HDMI ports quantity |
3 |
| Composite video in |
1 |
| DVI port |
No |
| USB 2.0 ports quantity |
2 |
| Audio (L/R) in |
1 |
| Serial interface type |
RS-232 |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| USB connector type |
USB Type-A, USB Type-B |
| Mobile High-Definition Link (MHL) |
Yes |
| AC (power) in |
Yes |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Storage |
| Card reader integrated |
No |
| Packaging content |
| Remote control included |
Yes |
| Remote control type |
IR |
| Batteries included |
Yes |
| Cables included |
USB |
| Manual |
Yes |
| Bundled software |
EasyMP Monitor, EasyMP Multi PC Projection |
| Other features |
| RS-232 ports |
1 |
| Design |
| Product type |

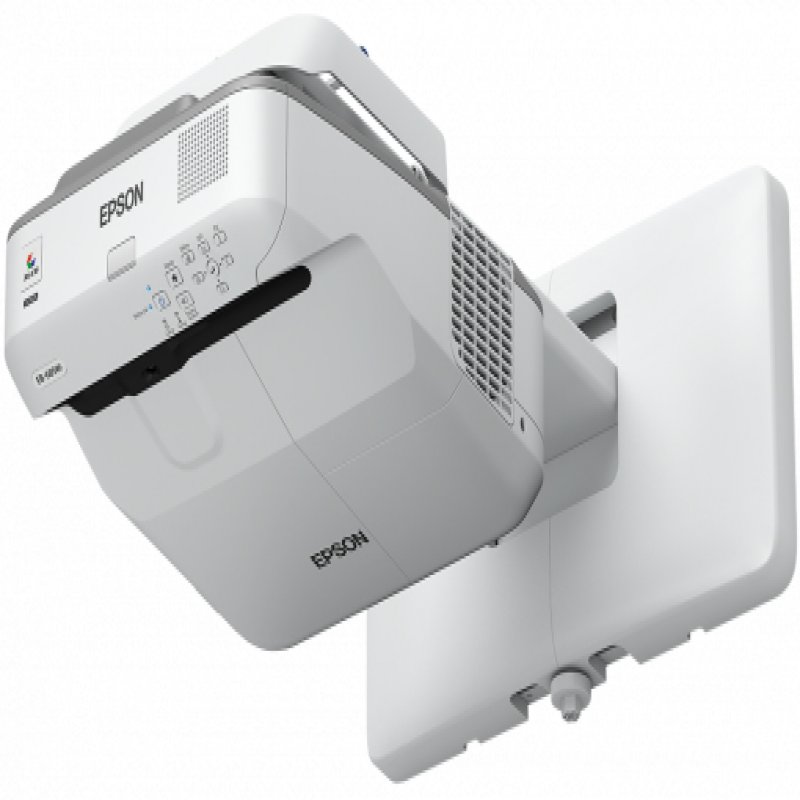

Ultra short throw projector |
| Product colour |
Grey, White |
| Placement |
Wall |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Multimedia |
| Built-in speaker(s) |
Yes |
| RMS rated power |
16 W |
| Number of built-in speakers |
1 |
| Software |
| Windows operating systems supported |
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 |
| Mac compatibility |
Yes |
| Mac operating systems supported |
Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Features |
| Noise level |
35 dB |
| Noise level (economic mode) |
28 dB |
| On Screen Display (OSD) |
Yes |
| Air filter |
Yes |
| 2D/3D frequency image |
100 - 120 Hz |
| Country of origin |
Philippines |
| Password protection |
Yes |
| Light source |
| Light source type |
Lamp |
| Service life of light source |
5000 h |
| Service life of light source (economic mode) |
10000 h |
| Lamp power |
250 W |
| Logistics data |
| Quantity per pack |
1 pc(s) |
| Products per pallet |
12 pc(s) |
| Pallet gross length |
120 cm |
| Pallet gross width |
80 cm |
| Pallet gross height |
141 cm |
| Products per pallet layer |
2 pc(s) |
| Products per pallet layer (UK) |
2 pc(s) |
| Products per pallet (UK) |
12 pc(s) |
| Pallet length (UK) |
120 cm |
| Pallet width (UK) |
100 cm |
| Pallet height (UK) |
141 cm |
