Stock Status: 1x unit in stock

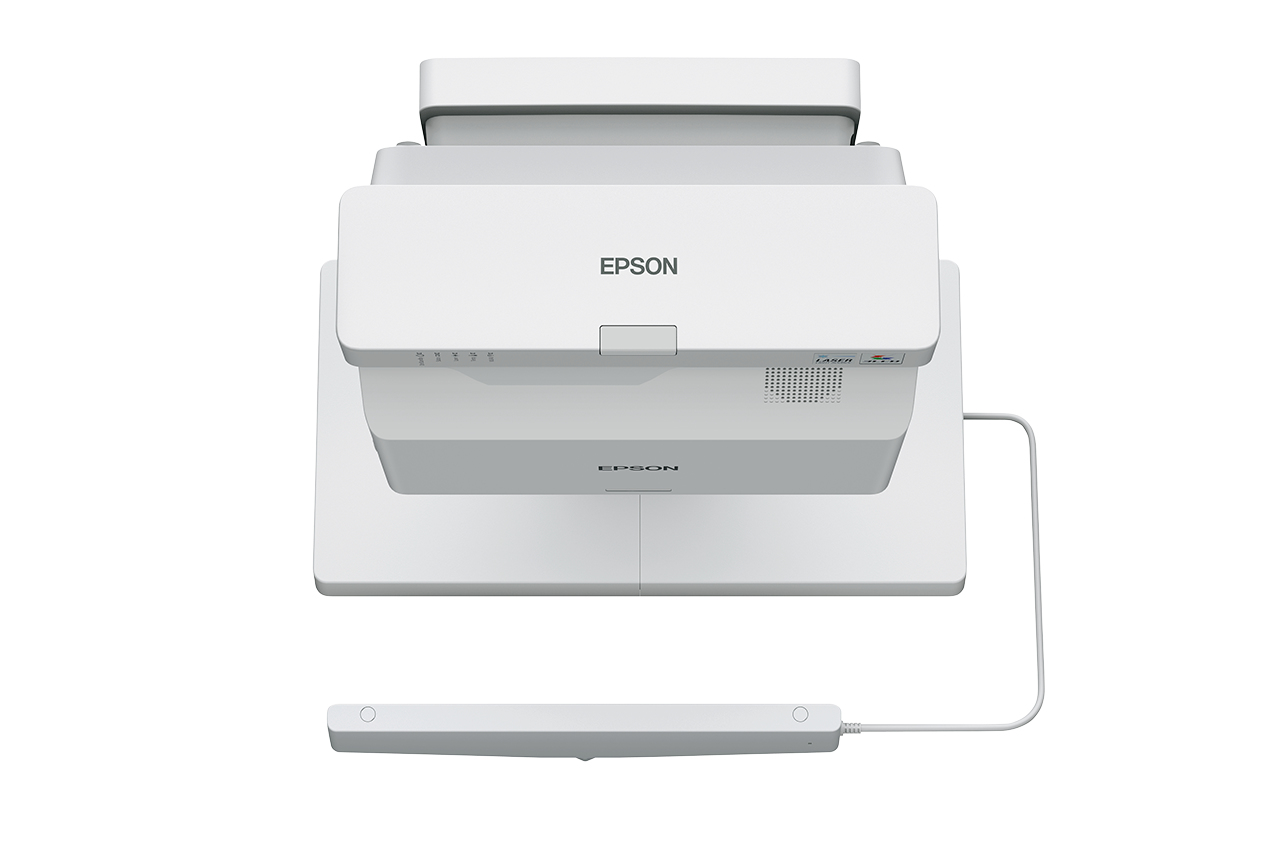

Agile USTi laser display
Project your vision, with a Full HD interactive large screen display up to 100" that will enhance engagement, learning and productivity.
Whatever the size of class or meeting room, unrestricted and interactive learning sessions are possible with this bright, compact and affordable touch-display solution.
The EB-770Fi's bright image, scalable up to 100", is clearly visible from every angle and at a distance, and content can easiliy be shared or streamed directly from multiple devices for the ultimate collaborative experience.
Specs
| Weight & dimensions |
| Weight |
6 kg |
| Width |
356 mm |
| Depth |
395 mm |
| Height |
133 mm |
| Operational conditions |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Projector |
| Projector brightness |
4100 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
1080p (1920x1080) |
| Contrast ratio (typical) |
2500000:1 |
| Native aspect ratio |
16:9 |
| Screen size compatibility |
1524 - 2540 mm (60 - 100") |
| Number of colours |
1.07 billion colours |
| Vertical scan range |
192 - 240 Hz |
| Keystone correction, horizontal |
-3 - 3° |
| Keystone correction, vertical |
-3 - 3° |
| Heat dissipation |
895 BTU/h |
| Video |
| Analog signal format system |
Not supported |
| Full HD |
Yes |
| 3D |
No |
| Lens system |
| Focus |
Manual |
| Fixed focal length |
3.7 mm |
| F-number (relative aperture) |
1.6 |
| Zoom capability |
Yes |
| Zoom ratio |
1.35:1 |
| Throw ratio |
0.25 - 0.35:1 |
| Power |
| Power source |
AC |
| Power consumption (typical) |
197 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (PowerSave) |
199 W |
| AC input frequency |
50/60 Hz |
| AC adapter output voltage |
100 - 240 V |
| Ports & interfaces |
| VGA (D-Sub) ports quantity |
2 |
| HDMI ports quantity |
3 |
| DVI port |
No |
| USB 2.0 ports quantity |
4 |
| Serial interface type |
RS-232C |
| USB 2.0 Type-A ports quantity |
2 |
| USB 2.0 Type-B ports quantity |
2 |
| Microphone in |
Yes |
| Networking |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Storage |
| Card reader integrated |
No |
| Packaging content |
| Remote control included |
Yes |
| Batteries included |
Yes |
| Cables included |
AC, USB |
| Design |
| Product type |
Ultra short throw projector |
| Market positioning |
Presentation |
| Product colour |
White |
| Placement |
Ceiling, Desktop, Wall |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Multimedia |
| Built-in speaker(s) |
Yes |
| RMS rated power |
16 W |
| Features |
| Noise level |
37 dB |
| Interactive |
Yes |
| Interactive input supported |
Interactive pen/Touch |
| Noise level (economic mode) |
27 dB |
| Light source |
| Light source type |
Laser |
| Service life of light source |
20000 h |
| Service life of light source (economic mode) |
30000 h |
Features
Epson EB-770Fi. Projector brightness: 4100 ANSI lumens, Projection technology: 3LCD, Projector native resolution: 1080p (1920x1080). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Fixed focal length: 3.7 mm, Zoom ratio: 1.35:1. Serial interface type: RS-232C. Ethernet LAN data rates: 10,100 Mbit/s, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Product Description
Agile USTi laser display
Project your vision, with a Full HD interactive large screen display up to 100" that will enhance engagement, learning and productivity.
Whatever the size of class or meeting room, unrestricted and interactive learning sessions are possible with this bright, compact and affordable touch-display solution.
The EB-770Fi's bright image, scalable up to 100", is clearly visible from every angle and at a distance, and content can easiliy be shared or streamed directly from multiple devices for the ultimate collaborative experience.
