Stock Status: 1x unit in stock
Keep it cool
The patented cooling plate transfers the resulting heat from the SSD to the housing and cools the SSD optimally. This prevents the early reduction of the transfer rate to protect from overheating. With the IB-1817M-C31, data can be sent permanently from A to B at a maximum transfer rate of up to 10 Gbit/s.
Time is valuable
The IB-1817M-C31 is compatible with M.2 cards of 30, 42, 60 and 80 mm length, operating system-independent and suitable for a variety of applications such as high-speed storage, cloning a drive or running a mobile operating system. All this happens with a data transfer rate with up to 1000 Mb per second. Compared to data transfer with a SATA drive, a data volume of 50 gigabytes is now transferred in 50 seconds instead of 1:36 minutes.
Click - Safe
With the IB-1817M-C31, sensitive data on the installed M.2 SSD can be protected from changes by a simple switch. The write protection switch can be moved to the desired position using the supplied mini tool and a small hand movement. Click - safe.
Specs
| Weight & dimensions |
| Width |
40 mm |
| Depth |
105 mm |
| Height |
15 mm |
| Weight |
100 g |
| Cable length |
0.2 m |
| Package width |
100 mm |
| Package depth |
25 mm |
| Package height |
200 mm |
| Package weight |
205 g |
| Ports & interfaces |
| USB connectivity |
Yes |
| USB version |
3.2 Gen 2 (3.1 Gen 2) |
| USB connector type |
USB Type-C |
| USB connector gender |
Female |
| USB ports quantity |
1 |
| System requirements |
| Windows operating systems supported |
Yes |
| Mac compatibility |
Yes |
| Mac operating systems supported |
Yes |
| Storage |
| Storage drive size |
M.2 |
| Supported storage drive interfaces |
PCI Express 3.0 |
| Number of storage drives supported |
1 |
| Supported storage drive heights |
22 mm |
| Supported storage drive lengths |
30,42,60,80 mm |
| NVMe |
Yes |
| Packaging content |
| Cables included |
USB Type-A to USB Type-C, USB Type-C to USB Type-C |
| Screws included |
Yes |
| Screwdriver included |
Yes |
| Quick installation guide |
Yes |
| Performance |
| Data transfer rate |
10 Gbit/s |
| Chipset |
JMS583 |
| Plug and Play |
Yes |
| Country of origin |
China |
| Design |
| Product type |
SSD enclosure |
| Product colour |
Grey |
| Material |
Aluminium |
| LED indicators |
Yes |
| Power |
| Power source type |
USB |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
Features

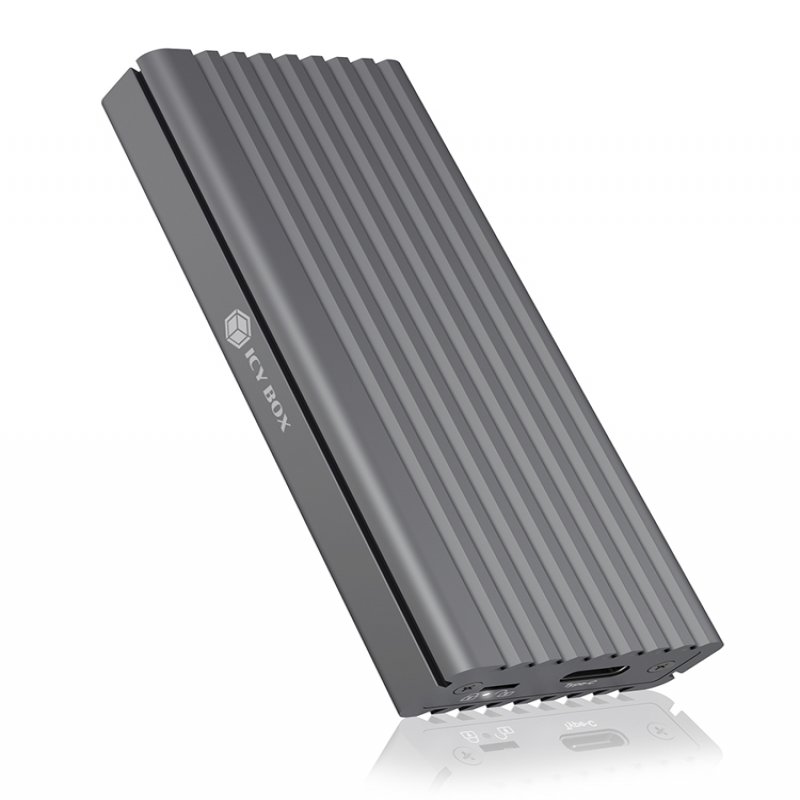

ICY BOX IB-1817M-C31. Product type: SSD enclosure. Number of storage drives supported: 1, Storage drive size: M.2, Supported storage drive interfaces: PCI Express 3.0. Data transfer rate: 10 Gbit/s. Product colour: Grey. USB connector type: USB Type-C
Product Description
Keep it cool
The patented cooling plate transfers the resulting heat from the SSD to the housing and cools the SSD optimally. This prevents the early reduction of the transfer rate to protect from overheating. With the IB-1817M-C31, data can be sent permanently from A to B at a maximum transfer rate of up to 10 Gbit/s.
Time is valuable
The IB-1817M-C31 is compatible with M.2 cards of 30, 42, 60 and 80 mm length, operating system-independent and suitable for a variety of applications such as high-speed storage, cloning a drive or running a mobile operating system. All this happens with a data transfer rate with up to 1000 Mb per second. Compared to data transfer with a SATA drive, a data volume of 50 gigabytes is now transferred in 50 seconds instead of 1:36 minutes.
Click - Safe
With the IB-1817M-C31, sensitive data on the installed M.2 SSD can be protected from changes by a simple switch. The write protection switch can be moved to the desired position using the supplied mini tool and a small hand movement. Click - safe.
