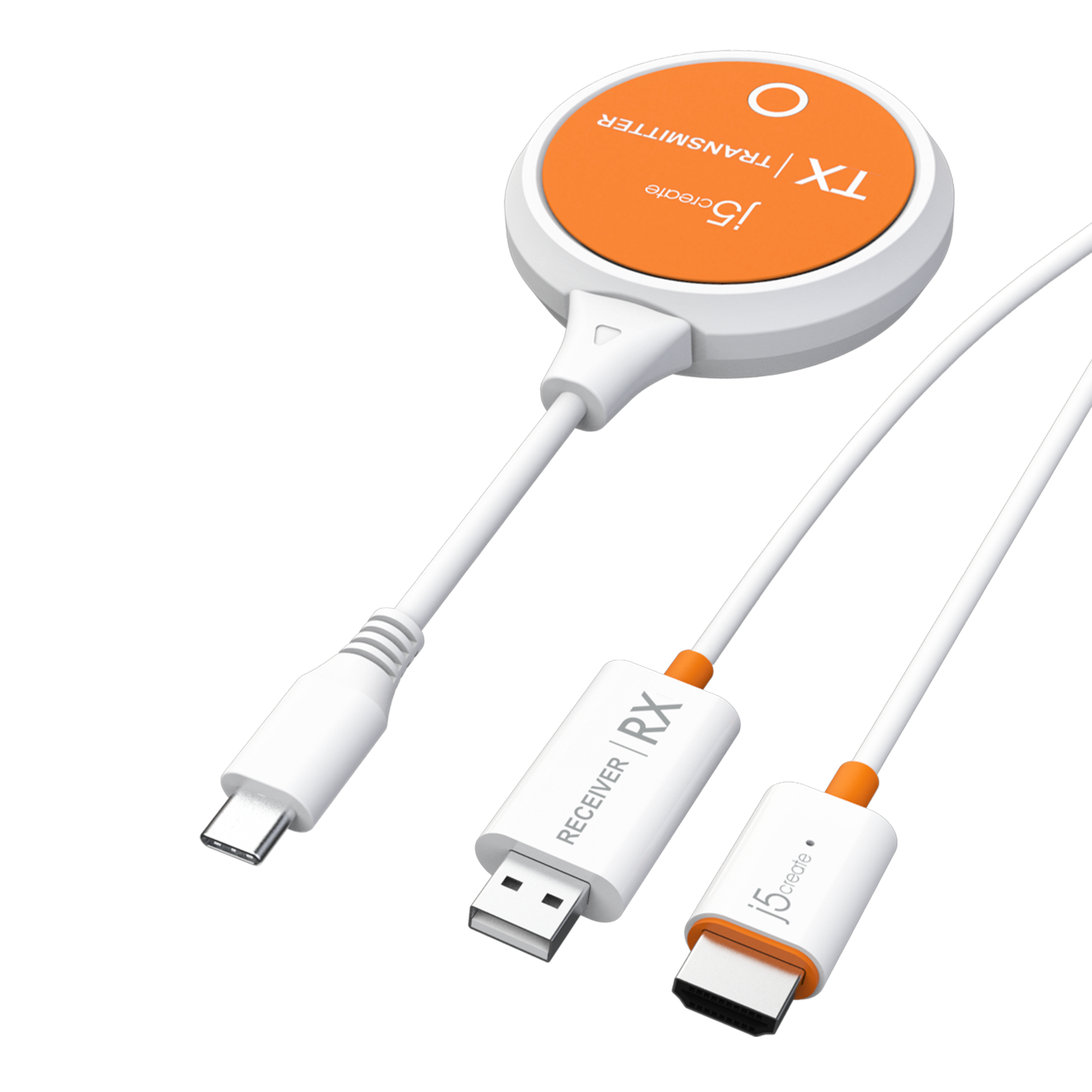

Eliminate the need and expense for cables by wirelessly sending what’s on your laptop, tablet, or mobile phone to your HDTV with this HDMI™ Extender. It transmits audio and video signal from a USB-C® equipped device to an HDMI™ enabled TV, projector, or monitor, creating a dedicated AV connection without an existing network. Enjoy a large screen experience by simply connecting the USB-C® transmitter to your compatible device and then connect the HDMI™ receiver to your TV.
Specs
| Technical details |
| Warranty period |
2 year(s) |
| Ports & interfaces |
| Connectivity technology |
Wireless |
| Wi-Fi |
Yes |
| HDMI version |
1.3 |
| USB connector type |
USB Type-C |
| Video out |
HDMI |
| Weight & dimensions |
| Width |
65 mm |
| Depth |
17 mm |
| Height |
65 mm |
| Weight |
77 g |
| Receiver dimensions (WxDxH) |
24 x 57 x 10.5 mm |
| Receiver weight |
31.5 g |
| Transmitter dimensions (WxDxH) |
65 x 65 x 17 mm |
| Transmitter weight |
54 g |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
193 mm |
| Package depth |
125 mm |
| Package height |
22.5 mm |
| Package weight |
182 g |
| Package type |
Box |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
0 - 85% |
| Storage relative humidity (H-H) |
0 - 85% |
| Power |
| Power source type |
USB |
| Operating voltage |
5 V |
| Power consumption (typical) |
1.7 W |
| USB powered |
Yes |
| Current |
1 A |
| Packaging content |
| Cables included |
USB Type-A |
| Quick start guide |
Yes |
| IR receiver included |
Yes |
| Packaging content |
1 x JVAW62 ScreenCast USB-C® Wireless Display HDMI™ Extender (1 x Transmitter & 1 x Receiver), 1 x USB™ Type-A extension cable (23.6”), 1 x Quick Installation Guide (QIG) |
| Features |
| Type |
AV transmitter & receiver |
| Maximum resolution |
1920 x 1080 pixels |
| Cable types supported |
HDMI |
| Maximum transfer distance |
15 m |
| Maximum refresh rate |
60 Hz |
| Audio output channels |
2.1 channels |
| Supported graphics resolutions |
1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Bandwidth |
40 MHz |
| Security algorithms |
WPA2 |
| Antenna type |
Internal antenna |
| HDCP |
Yes |
| Material |
ABS |
| Firmware upgradeable |
Yes |
| Plug and Play |
Yes |
| Networking standards |
IEEE 802.11ac |
| HDCP version |
1.4 |
| Product colour |
Orange, White |
| Integrated antenna |
Yes |
| Frequency range |
2.4 - 5 GHz |
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Logistics data |
| Minimum order quantity |
18 pc(s) |
| Export Control Classification Number (ECCN) |
EAR99 |
| Master (outer) case width |
226 mm |
| Master (outer) case length |
445 mm |
| Master (outer) case height |
190 mm |
| Master (outer) case gross weight |
4.12 kg |
| Products per master (outer) case |
18 pc(s) |
| Master (outer) case GTIN (EAN/UPC) |
24712795086144 |
Features
j5create JVAW62 ScreenCast USB-C® Wireless Display HDMI™ Extender, White and Orange. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1080 pixels, Cable types supported: HDMI. Connectivity technology: Wireless, USB connector type: USB Type-C, Video out: HDMI. Power source type: USB, Operating voltage: 5 V, Power consumption (typical): 1.7 W. Width: 65 mm, Depth: 17 mm, Height: 65 mm. Quantity per pack: 1 pc(s), Package width: 193 mm, Package depth: 125 mm
Product Description
Eliminate the need and expense for cables by wirelessly sending what’s on your laptop, tablet, or mobile phone to your HDTV with this HDMI™ Extender. It transmits audio and video signal from a USB-C® equipped device to an HDMI™ enabled TV, projector, or monitor, creating a dedicated AV connection without an existing network. Enjoy a large screen experience by simply connecting the USB-C® transmitter to your compatible device and then connect the HDMI™ receiver to your TV.
