Stock Status: 1x unit in stock

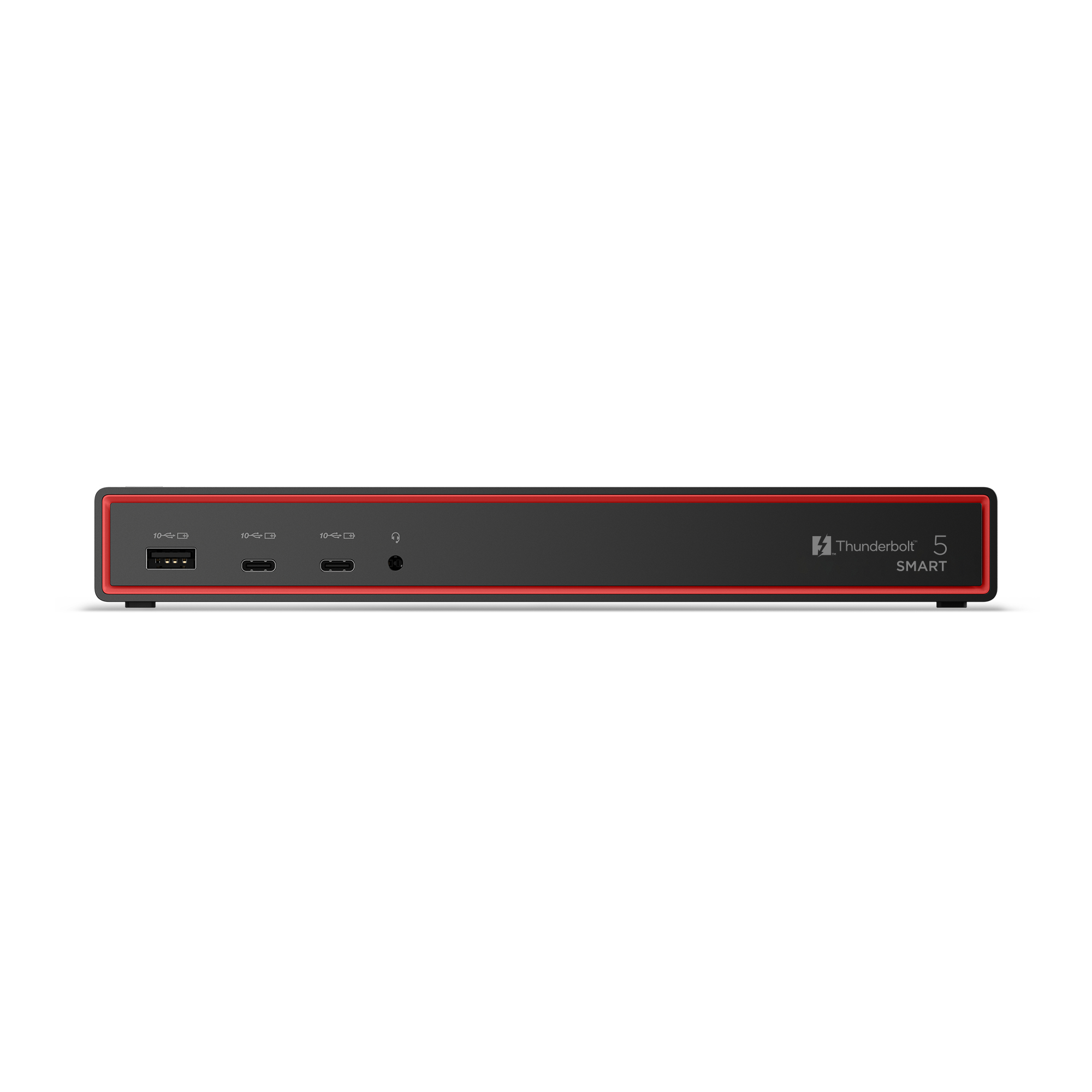

New Generation Docking Station Power House. The robust way to maximize productivity and the workspace, the brand new ThinkPad® Thunderbolt™ 5 Smart Dock 7500 is the flagship in our new series of docks offering a smarter way to work. Capable of driving up to three 8K 60Hz displays and up to 120Gbps data speeds, the dock ushers in the next generation of Intel® Thunderbolt™ 5 connectivity for commercial users and new generation cloud-based management console powered by AWS for IT managers.
Specs
| Weight & dimensions |
| Width |
235 mm |
| Depth |
80 mm |
| Height |
30 mm |
| Weight |
585 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
Thunderbolt 5 |
| USB 2.0 ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery revision |
3.1 |
| USB Power Delivery up to |
180 W |
| HDMI version |
2.1 |
| DisplayPorts quantity |
2 |
| DisplayPort version |
2.1 |
| Thunderbolt 5 ports quantity |
2 |
| Combo headphone/mic port |
Yes |
| Power |
| Power source type |
AC |
| Power supply |
265 W |
| Packaging content |
| Warranty card |
Yes |
| AC adapter included |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 95% |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
2500 Mbit/s |
| Performance |
| Product colour |
Black |
| Card reader integrated |
No |
| Colour name |
Eclipse Black |
| HD type |
8K Ultra HD |
| Number of displays supported |
4 |
| Maximum refresh rate |
60 Hz |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Certification |
FCC/ICES
CE
KCC
RCM
BSMI
NCC
VCCI
CB
cULus
EAC
TUV-Mark
Ukraine DoC
NOM
IFT
TELEC
UKCA
VNTA
WPC ETA
SRRC
SDPPI
IMDA
SIRIM
NBTC
SUBTEL
KVALITET/RATEL
MCIT
ANRT
UCC
INACOM
CITRA
TRA
NTC
PSRC
ARTCI
INCM
Thunderbolt Cert
EVO |
| Software |
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
260 mm |
| Package depth |
165 mm |
| Package height |
74 mm |
| Package weight |
1.73 kg |
Features
Lenovo ThinkPad Thunderbolt 5 Smart Dock 7500. Connectivity technology: Wired, Host interface: Thunderbolt 5, USB Power Delivery up to: 180 W. Ethernet LAN data rates: 2500 Mbit/s. Product colour: Black, Colour name: Eclipse Black, HD type: 8K Ultra HD. Power source type: AC, Power supply: 265 W. Width: 235 mm, Depth: 80 mm, Height: 30 mm
Product Description
New Generation Docking Station Power House. The robust way to maximize productivity and the workspace, the brand new ThinkPad® Thunderbolt™ 5 Smart Dock 7500 is the flagship in our new series of docks offering a smarter way to work. Capable of driving up to three 8K 60Hz displays and up to 120Gbps data speeds, the dock ushers in the next generation of Intel® Thunderbolt™ 5 connectivity for commercial users and new generation cloud-based management console powered by AWS for IT managers.
