A SMARTER WAY TO WORK.

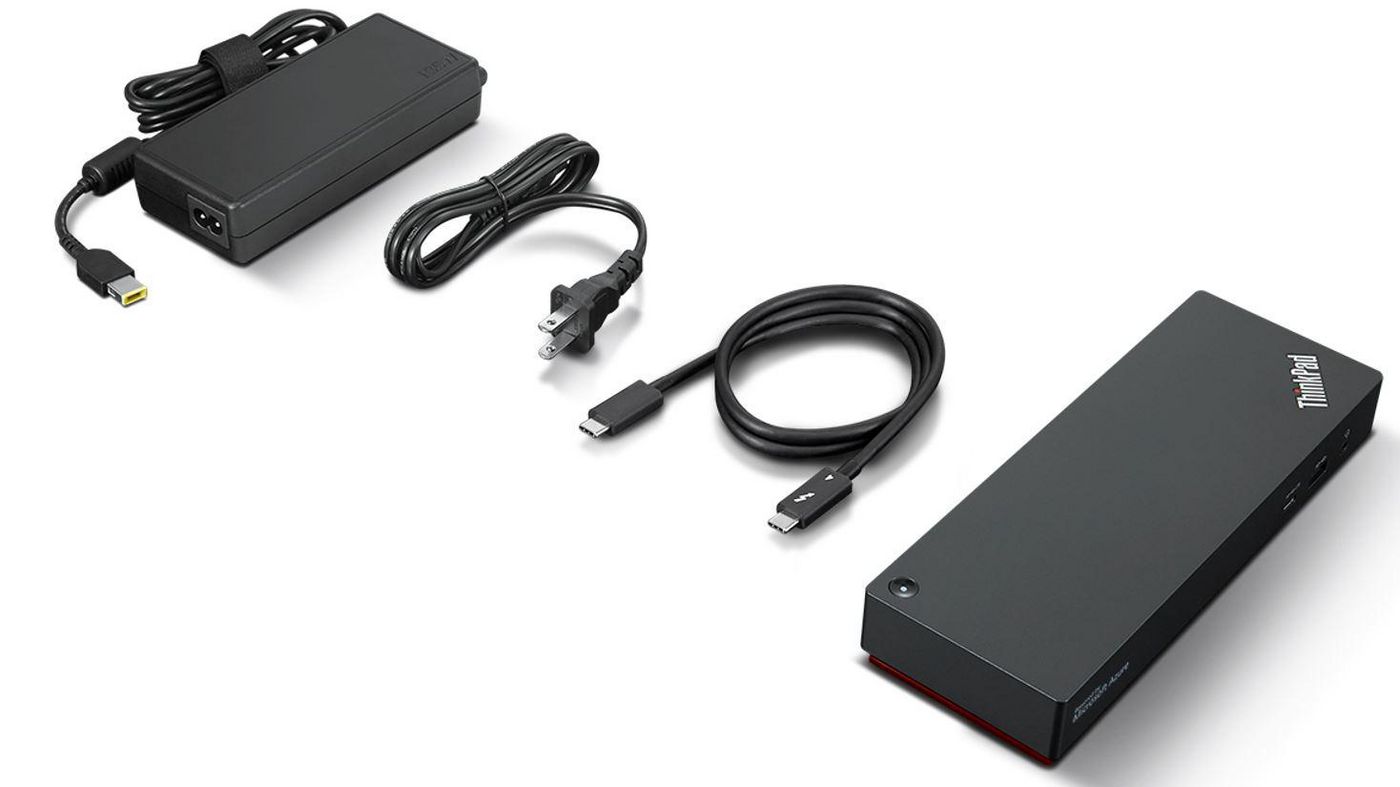

The robust way to maximize productivity and the workspace, the Lenovo™ ThinkPad® Universal Thunderbolt™ 4 Smart Dock (40B10 is the leader in our new series of docks offering a smarter way to work. Capable of driving 8k displays and 40Gbps data speeds, the dock ushers in the next generation of Intel® Thunderbolt™ 4 connectivity for commercial users and a new cloud-based management paradigm for IT managers. And it’s all powered by Microsoft Azure Sphere.
Specs
| Weight & dimensions |
| Width |
220 mm |
| Depth |
80 mm |
| Height |
30 mm |
| Weight |
460 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
Thunderbolt 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
2 |
| DisplayPort version |
1.4 |
| Thunderbolt 4 ports quantity |
1 |
| Combo headphone/mic port |
Y |
| Headphone connectivity |
3.5 mm |
| DC-in jack |
Y |
| Power |
| Power source type |
DC |
| Input current |
6.75 A |
| Power consumption (max) |
100 W |
| Packaging content |
| Cables included |
AC, Thunderbolt |
| AC adapter included |
Y |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Networking |
| Ethernet LAN |
Y |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
| Product colour |
Black |
| Data transfer rate |
40 Gbit/s |
| Number of displays supported |
4 |
| Maximum refresh rate |
60 Hz |
| Certification |
cULus, FCC, ICES, NOM |
| Software |
| Windows operating systems supported |
Y |
| Packaging data |
| Package width |
270 mm |
| Package depth |
195 mm |
| Package height |
85 mm |
| Package weight |
1.23 kg |
Features
Lenovo ThinkPad Universal Thunderbolt 4 Smart Dock. Connectivity technology: Wired, Host interface: Thunderbolt 4, Headphone connectivity: 3.5 mm. Product colour: Black, Data transfer rate: 40 Gbit/s, Maximum refresh rate: 60 Hz. Power source type: DC, Input current: 6.75 A, Power consumption (max): 100 W. Width: 220 mm, Depth: 80 mm, Height: 30 mm. Package width: 270 mm, Package depth: 195 mm, Package height: 85 mm
Product Description
A SMARTER WAY TO WORK.
The robust way to maximize productivity and the workspace, the Lenovo™ ThinkPad® Universal Thunderbolt™ 4 Smart Dock (40B10 is the leader in our new series of docks offering a smarter way to work. Capable of driving 8k displays and 40Gbps data speeds, the dock ushers in the next generation of Intel® Thunderbolt™ 4 connectivity for commercial users and a new cloud-based management paradigm for IT managers. And it’s all powered by Microsoft Azure Sphere.
