Stock Status: 1x unit in stock
The Broadcom NetXtreme Gigabit Ethernet Adapters are a family of high performance PCIe and OCP adapters. The adapters are available with either two ports or four ports and are supported on ThinkSystem and System x servers.
This product guide provides essential presales information to understand the NetXtreme GbE offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
Specs
| Networking |
| Maximum data transfer rate |
1000 Mbit/s |
| Networking standards |
IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wake-on-LAN ready |
Yes |
| LAN controller |
Broadcom BCM5719 |
| System requirements |
| Compatible operating systems |
Microsoft Windows Server version 1709, Microsoft Windows Server version 1803, Red Hat Enterprise Linux 6.10, Red Hat Enterprise Linux 6.9, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 7.4, Red Hat Enterprise Linux 7.5, Red Hat Enterprise Linux 7 |
| Server operating systems supported |
SUSE Linux Enterprise Server 12, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Weight & dimensions |
| Width |
69 mm |
| Depth |
132 mm |
| Height |
19 mm |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
PCI Express |
| Interface |
Ethernet |
| Ethernet LAN (RJ-45) ports |
4 |
| PCI version |
2.0 |
| Operational conditions |
| Operating temperature (T-T) |
10 - 35 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Other features |
| Minimum operating temperature |
10 °C |
| Maximum operating temperature |
35 °C |
| Flow control support |
Yes |
| Design |
| Internal |
Yes |
| Component for |
Server |
| Product colour |
Green, Stainless steel |
| Certification |
EN55022, EN55024, EN60950 / CE, EN 61000-3-2, EN 61000-3-3, ICES-003, Issue-004, IEC 950 CB Scheme, FCC 47 CFR Part 15 Class A, UL 1950, CSA C22.2 950-95, VCCI, AS/NZSCISPR 22 / C-tick, RRL for KC, BSMI, UL 94-/V |
| Compatible products |
R635 (7Y98 / 7Y99), R655 (7Y00 / 7Z01) |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Technical details |
| Compliance certificates |
RoHS |
Features

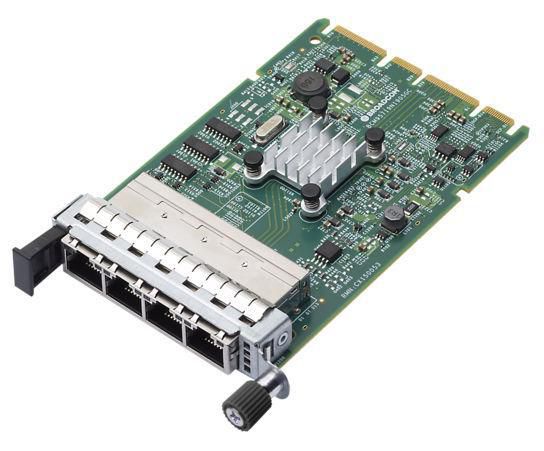

Lenovo Broadcom 5719. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s. Product colour: Green, Stainless steel
Product Description
The Broadcom NetXtreme Gigabit Ethernet Adapters are a family of high performance PCIe and OCP adapters. The adapters are available with either two ports or four ports and are supported on ThinkSystem and System x servers.
This product guide provides essential presales information to understand the NetXtreme GbE offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
