Stock Status: 1x unit in stock

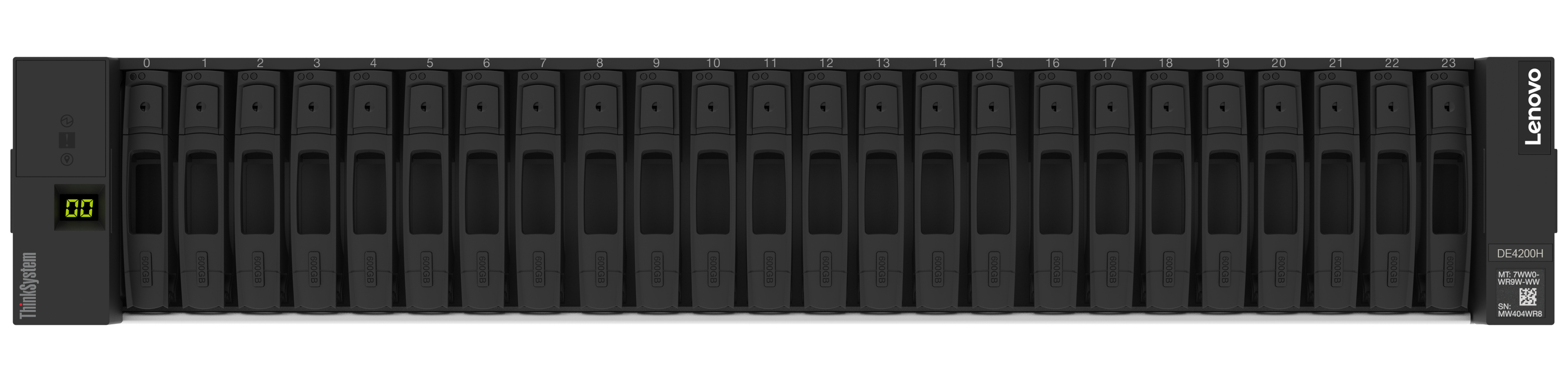

Lenovo ThinkSystem DE4200H is a scalable, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. The ThinkSystem DE4200H delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features.
Specs
| Weight & dimensions |
| Width |
449 mm |
| Depth |
511 mm |
| Height |
85 mm |
| Weight |
24.6 kg |
| Power |
| Power supply unit (PSU) capacity |
913 W |
| Redundant power supply (RPS) support |
Yes |
| Hot-swap PSU |
Yes |
| AC input voltage |
100 - 240 V |
| Operational conditions |
| Operating temperature (T-T) |
10 - 40 °C |
| Operating relative humidity (H-H) |
8 - 90% |
| Storage temperature (T-T) |
-10 - 50 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating altitude |
0 - 3050 m |
| Ports & interfaces |
| Host ports |
12 |
| Serial interface type |
RJ-45, USB C |
| RJ-45 ports quantity |
1 |
| Storage |
| Supported storage drive types |
HDD & SSD |
| Number of storage drives supported |
24 |
| Maximum supported storage capacity |
1470000 TB |
| Supported storage drive interfaces |
SAS |
| Storage drive sizes supported |
2.5" |
| RAID levels |
0, 1, 3, 5, 6, 10 |
| Data transfer rate |
12 Gbit/s |
| Hot-swap drive bays |
Yes |
| Performance |
| Maximum number of controllers supported |
2 |
| Cache size (max) |
64 GB |
| Maximum number of hosts supported |
256 |
| Design |
| Device class |
Small & Medium Business |
| Chassis type |
Rack (2U) |
| Product colour |
Black |
| LED indicators |
Yes |
| Built-in display |
Yes |
Features
Lenovo ThinkSystem DE4200H 2U24. Chassis type: Rack (2U), Device class: Small & Medium Business. Number of storage drives supported: 24, Supported storage drive types: HDD & SSD, Supported storage drive interfaces: SAS, Storage drive sizes supported: 2.5". Width: 449 mm, Depth: 511 mm, Height: 85 mm, Weight: 24.6 kg. Product colour: Black
Product Description
Lenovo ThinkSystem DE4200H is a scalable, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. The ThinkSystem DE4200H delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features.
