Stock Status: 1x unit in stock

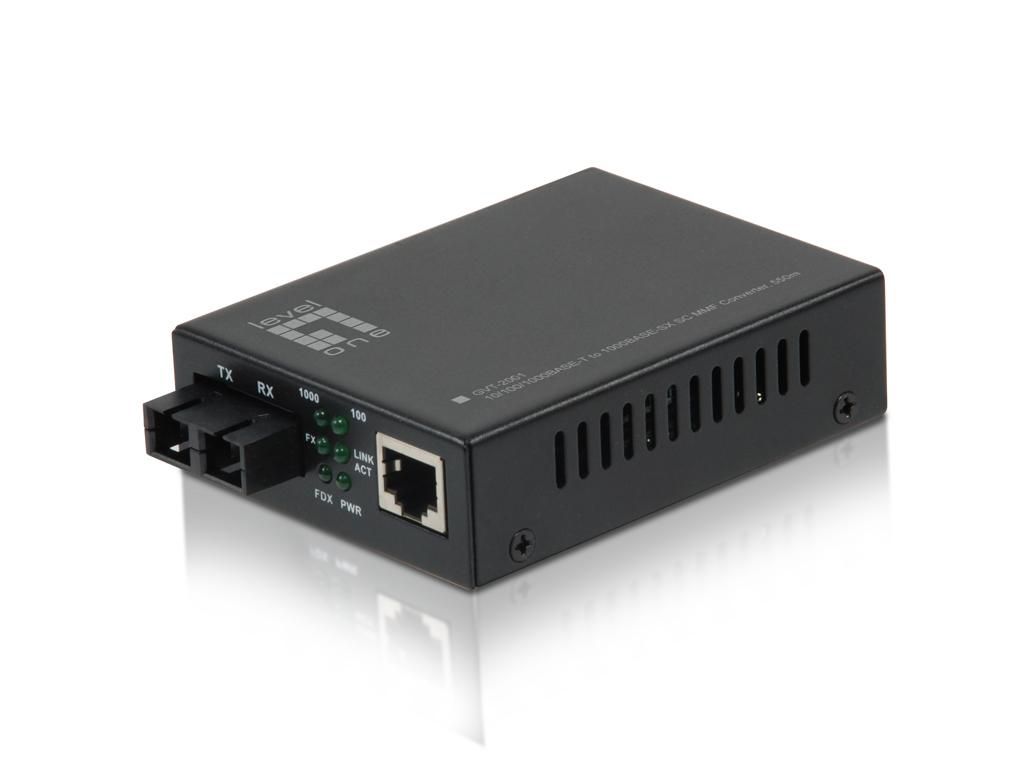

The GVT-2001 MMF SC media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100/1000Base-T RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T, 100Base-TX and 1000Base-T auto-sensing. Used in multi-mode with fibre-optic cabling, this can extend a network range up to 550m.
The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as cut through and smart pass through mode.
The GVT-2001 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” converter rack, which can accommodate up to 14 units for use in a central wiring closet.
Specs
| Networking |
| Maximum data transfer rate |
1000 Mbit/s |
| Converter input interface |
10Base-T, 100Base-TX, 1000Base-T |
| Converter output interface |
1000Base-LX, 1000Base-SX |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Jumbo frames support |
Yes |
| Jumbo frames |
9000 |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| Store-and-forward |
Yes |
| Duplex system |
Full |
| Link Loss Carry Forward (LLCF) supported |
Yes |
| Link Loss Return (LLR) supported |
Yes |
| Cable types supported |
Cat5, Cat5e |
| Weight & dimensions |
| Width |
94 mm |
| Depth |
70 mm |
| Height |
25 mm |
| Weight |
420 g |
| Ports & interfaces |
| Fiber optic connector |
SC |
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber ports quantity |
1 |
| DC-in jack |
Yes |
| Power |
| Input voltage |
5 - 12 V |
| Input current |
2 A |
| Operational conditions |
| Operating temperature (T-T) |
-40 - 75 °C |
| Storage temperature (T-T) |
-10 - 55 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Packaging content |
| AC adapter included |
Yes |
| Quick installation guide |
Yes |
| Performance |
| Maximum transfer distance |
550 m |
| Wavelength |
850 nm |
| Fiber mode structure |
Multi-mode |
| Logistics data |
| Country of origin |
China |
| Harmonized System (HS) code |
85176990 |
| Packaging data |
| Package width |
235 mm |
| Package depth |
125 mm |
| Package height |
55 mm |
| Package weight |
530 g |
| Package type |
Box |
| Certification |
| Compliance certificates |
RoHS |
| Certification |
CE, FCC |
| Features |
| Internal |
No |
| LED indicators |
Activity, Link, Power |
| Product colour |
Black |
Features
LevelOne RJ45 to SC Gigabit Media Converter, Multi-Mode Fiber, 550m. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, 1000Base-T, Converter output interface: 1000Base-LX, 1000Base-SX. Maximum transfer distance: 550 m, Wavelength: 850 nm, Fiber mode structure: Multi-mode. LED indicators: Activity, Link, Power, Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 5 - 12 V, Input current: 2 A
Product Description
The GVT-2001 MMF SC media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100/1000Base-T RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T, 100Base-TX and 1000Base-T auto-sensing. Used in multi-mode with fibre-optic cabling, this can extend a network range up to 550m.
The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as cut through and smart pass through mode.
The GVT-2001 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” converter rack, which can accommodate up to 14 units for use in a central wiring closet.
