Stock Status: 1x unit in stock
At a Glance

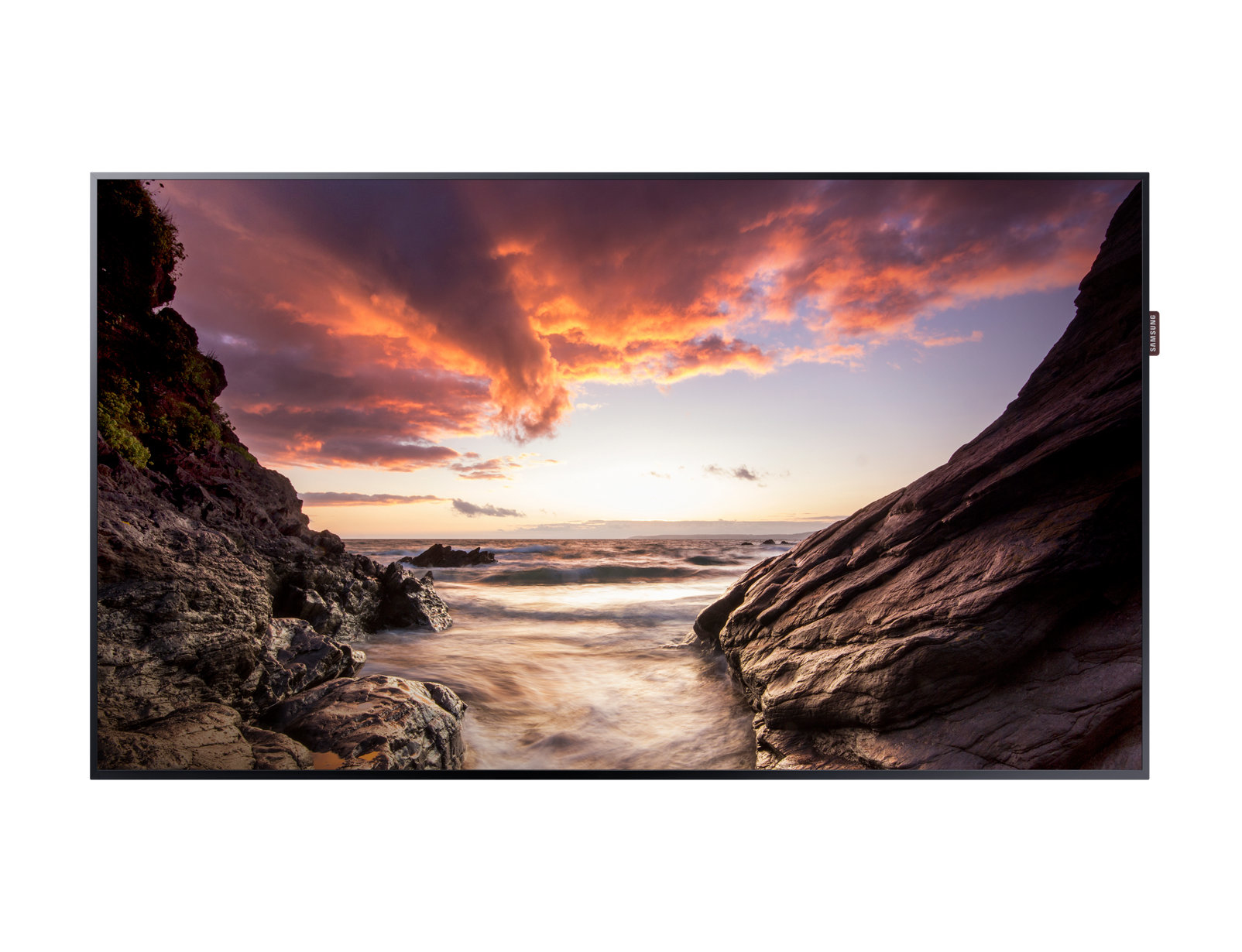

Samsung PHF-P Series high brightness commercial displays feature an ultra-slim and narrow design. They're built for 24/7 run-time and have an embedded System-on-Chip (SoC) media player for simple remote content management. The non-glare panel offers improved visibility, plus IP5X certified dust protection allows for smooth installation.
- Next gen Smart Signage Platform (SSP) 4.0 powered by Tizen OS for powerful, streamlined 24/7 remote content management
- IP5X certified dust protection provides proven durability for smooth installation without the need for additional housing
- Non-glare, high brightness panel offers improved visibility in bright ambient light
- Ultra-slim, ADA-Compliant profile of just 1.1" chassis depth and 6.9mm bezel width
Built for 24/7 Use & IP5X Certified for Dust Protection
PHF-P Series displays are built for dependable 24/7 continuous use with commercial-level cooling technologies and are proven durable with IP5X certified dust protection. So you can install your signage smoothly in dusty environments without the need for additional housing, while meeting around the clock operating requirements. They also feature anti-vibration technologies to protect sensitive components.
Non-Glare, High Brightness Panel for Improved Visibility
The non-glare, high brightness panel features 700nit brightness to improve visibility of your message in bright ambient light.
System-on-Chip Platform for Simple Remote Content Management
Powered by an embedded System-on-Chip (SoC) semiconductor and quad core CPU with 8GB of storage, Samsung's SMART Signage Platform is an open and integrated player side media platform that provides a powerful, streamlined digital signage solution, with digital signage software like MagicInfo T for PC-less content creation, scheduling and playing and remotely managing content.
Ultra-Slim, ADA-Compliant Profile of Just 1.1”
The PHF-P Series features an ultra-thin 6.9mm bezel and 1.1" chassis depth for an elegant, sophisticated look. And they’re ADA-compliant when installed with the appropriate mount.
Enhanced Web Compatibility
Samsung B2B SDK allows developers to build web-based apps for customer functionality and greater interactivity.
More Content Possibilities
PHF-P Series displays are designed to use content from various external sources including Samsung PIMs. Samsung PIMs use Intel® Open Pluggable Specification (OPS) connectivity to enable power and video source delivery through a single cable. No additional power cord is necessary.
Full Connectivity
Discover versatile connectivity options to display a full range of exceptional content that speaks to your audience. Connections include DVI-I, Display Port 1.2, HDMI, USB 2.0, RS232C/RJ45 and more.
Built-In Wi-Fi®
Enjoy the versatility of expanded connectivity to mobile devices, from easy media sharing and screen control to simple content mirroring from a tablet or mobile phone to your display.
Specs
| Weight & dimensions |
| Width |
957.6 mm |
| Depth |
27.9 mm |
| Height |
548.6 mm |
| Weight |
9.39 kg |
| Display |
| Display diagonal |
109.2 cm (43") |
| Display type |
LED |
| Display resolution |
1920 x 1080 pixels |
| Display brightness |
700 cd/m² |
| HD type |
Full HD |
| Touchscreen |
N |
| Response time |
8 ms |
| LED backlighting type |
Edge-LED BLU |
| Contrast ratio (typical) |
3000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display technology |
LED |
| Packaging data |
| Package width |
1036.3 mm |
| Package depth |
129.5 mm |
| Package height |
627.4 mm |
| Package weight |
11.4 kg |
| Audio |
| Built-in speaker(s) |
Y |
| Number of built-in speakers |
2 |
| RMS rated power |
20 W |
| Power |
| Power consumption (typical) |
108 W |
| Power consumption (standby) |
0.5 W |
| Energy efficiency class |
C |
| Annual energy consumption |
150 kWh |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Ports & interfaces |
| HDMI ports quantity |
2 |
| DVI port |
Y |
| DisplayPorts quantity |
2 |
| USB port |
Y |
| Ethernet LAN |
Y |
| Wi-Fi |
Y |
| DVI-I ports quantity |
1 |
| USB ports quantity |
2 |
| USB version |
2.0 |
| Ethernet LAN (RJ-45) ports |
1 |
| Audio (L/R) in |
1 |
| Audio (L/R) out |
1 |
| RS-232C |
Y |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Other features |
| SMART Signage TV (SSTV) |
Y |
| Quick start guide |
Y |
| DisplayPort version |
1.2 |
| Plug and Play |
Y |
| Annual energy consumption |
150 kWh |
| Energy efficiency class (old) |
C |
| Design |
| Design |
Digital signage flat panel |
| Product colour |
Black |
| Placement supported |
Indoor |
| VESA mounting |
Y |
| Orientation |
Horizontal/Vertical |
| Panel mounting interface |
200 x 200 mm |
| Bezel width (bottom) |
8.9 mm |
| Bezel width (side) |
6.9 mm |
| Bezel width (top) |
6.9 mm |
| Product design |
Digital signage flat panel |
| Performance |
| Purpose |
Universal |
| TV tuner integrated |
N |
| On Screen Display (OSD) |
Y |
| Operating hours (hours/days) |
24/7 |
| HDCP |
Y |
| Technical details |
| Sustainability certificates |
RoHS, ENERGY STAR |
| Computer system |
| Computer system |
Y |
| Processor family |
ARM Cortex |
| Processor model |
A12 |
| Processor frequency |
1.3 GHz |
| Processor cores |
4 |
| Internal memory |
2.5 GB |
| Internal storage capacity |
8 GB |
| Certificates |
| Energy Star certified |
Y |
| RoHS compliance |
Y |
| Packaging content |
| Handheld remote control |
Y |
| Batteries included |
Y |
| Cables included |
AC |
| Remote control included |
Y |
Features
Samsung LH43PHFPMGC. Display diagonal: 109.2 cm (43"), Display technology: LED, Display resolution: 1920 x 1080 pixels. RMS rated power: 20 W. Product design: Digital signage flat panel, Product colour: Black, Placement supported: Indoor. Purpose: Universal, Operating hours (hours/days): 24/7. Power consumption (typical): 108 W, Power consumption (standby): 0.5 W, AC input voltage: 100 - 240 V
Product Description
At a Glance
Samsung PHF-P Series high brightness commercial displays feature an ultra-slim and narrow design. They're built for 24/7 run-time and have an embedded System-on-Chip (SoC) media player for simple remote content management. The non-glare panel offers improved visibility, plus IP5X certified dust protection allows for smooth installation.
- Next gen Smart Signage Platform (SSP) 4.0 powered by Tizen OS for powerful, streamlined 24/7 remote content management
- IP5X certified dust protection provides proven durability for smooth installation without the need for additional housing
- Non-glare, high brightness panel offers improved visibility in bright ambient light
- Ultra-slim, ADA-Compliant profile of just 1.1" chassis depth and 6.9mm bezel width
Built for 24/7 Use & IP5X Certified for Dust Protection
PHF-P Series displays are built for dependable 24/7 continuous use with commercial-level cooling technologies and are proven durable with IP5X certified dust protection. So you can install your signage smoothly in dusty environments without the need for additional housing, while meeting around the clock operating requirements. They also feature anti-vibration technologies to protect sensitive components.
Non-Glare, High Brightness Panel for Improved Visibility
The non-glare, high brightness panel features 700nit brightness to improve visibility of your message in bright ambient light.
System-on-Chip Platform for Simple Remote Content Management
Powered by an embedded System-on-Chip (SoC) semiconductor and quad core CPU with 8GB of storage, Samsung's SMART Signage Platform is an open and integrated player side media platform that provides a powerful, streamlined digital signage solution, with digital signage software like MagicInfo T for PC-less content creation, scheduling and playing and remotely managing content.
Ultra-Slim, ADA-Compliant Profile of Just 1.1”
The PHF-P Series features an ultra-thin 6.9mm bezel and 1.1" chassis depth for an elegant, sophisticated look. And they’re ADA-compliant when installed with the appropriate mount.
Enhanced Web Compatibility
Samsung B2B SDK allows developers to build web-based apps for customer functionality and greater interactivity.
More Content Possibilities
PHF-P Series displays are designed to use content from various external sources including Samsung PIMs. Samsung PIMs use Intel® Open Pluggable Specification (OPS) connectivity to enable power and video source delivery through a single cable. No additional power cord is necessary.
Full Connectivity
Discover versatile connectivity options to display a full range of exceptional content that speaks to your audience. Connections include DVI-I, Display Port 1.2, HDMI, USB 2.0, RS232C/RJ45 and more.
Built-In Wi-Fi®
Enjoy the versatility of expanded connectivity to mobile devices, from easy media sharing and screen control to simple content mirroring from a tablet or mobile phone to your display.
