Stock Status: 1x unit in stock

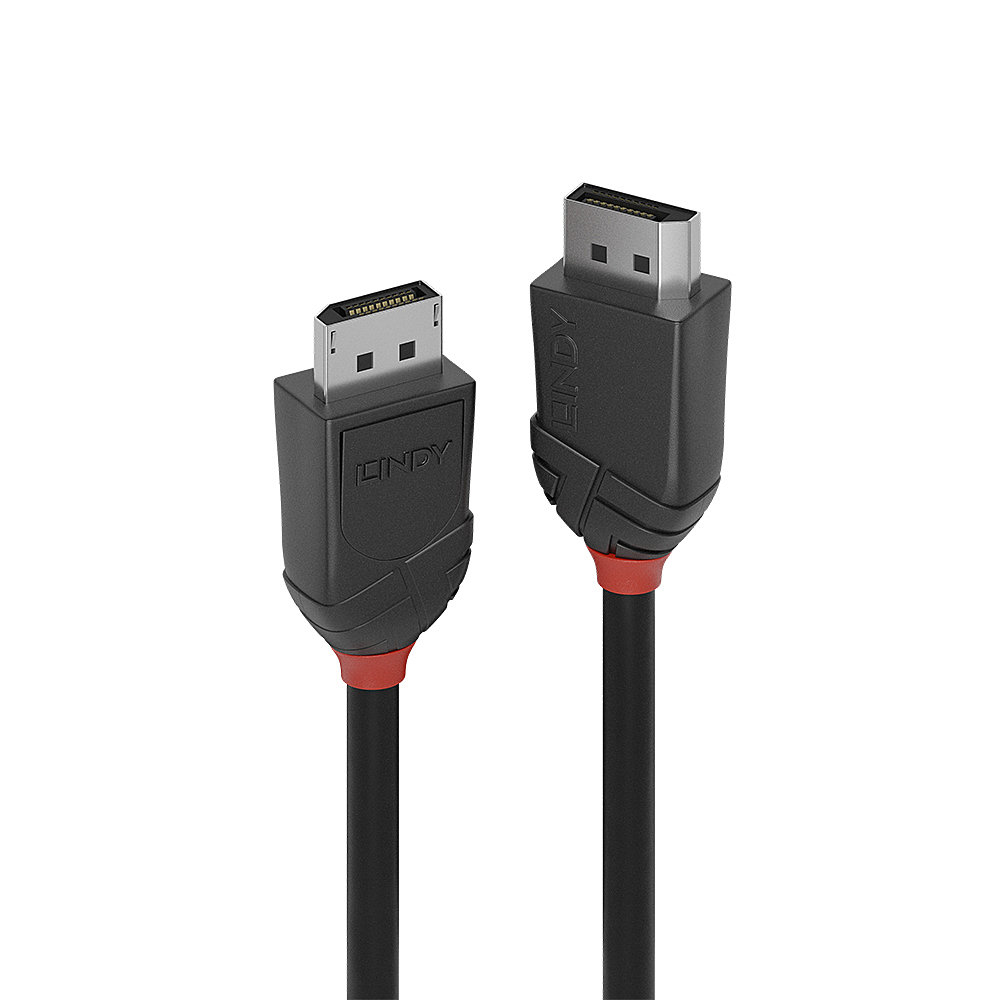

Entry level DisplayPort cable for home and small office applications
Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 10bit
Robust PVC housing, nickel connectors, 24K gold plated contacts
Triple shielded cable, corrosion resistant copper 30AWG conductors
DisplayPort 1.2, 4K, 3D, 21.6Gbps; 10 year warranty
From the Lines cable connectivity concept developed by Lindy, Black Line DisplayPort cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
Black Line DisplayPort cables feature triple shielded construction with 30AWG copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit are supported. Black Line DisplayPort cables are also capable of transmitting 32 channel audio and Dolby True HD. Black Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.
Black Line DisplayPort cables are available in lengths: 0.5m, 1m, 1.5m, 2m and 3m
Specs
| Features |
| Cable length |
1 m |
| Connector 1 |
DisplayPort |
| Connector 2 |
DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Maximum resolution |
4096 x 2160 pixels |
| Product colour |
Black |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Connector contacts plating |
Gold |
| DisplayPort version |
1.2 |
| Supported graphics resolutions |
4096 x 2160 |
| Supported video modes |
2160p |
| Cable material |
Copper |
| Cable shielding |
Copper |
| Jacket material |
Polyvinyl chloride (PVC) |
| Connector housing material |
Acrylonitrile butadiene styrene (ABS) |
| AWG wire size |
30 |
| Data transfer rate |
21.6 Gbit/s |
| Contact material |
Phosphor bronze |
| Connector material |
Nickel |
| Plug and Play |
Yes |
| Bend radius (min) |
4.8 cm |
| Colour sampling |
4:4:4 |
| Cable type |
Round cable |
| Nominal attenuation |
300kHz-825MHz - 5dB, 825MHz-2.475GHz - 5dB, 2.475GHz-4.125GHz - 12dB, 4.125GHz-5.1GHz - 20dB |
| Certification |
RoHS, REACH, UL |
| Operational conditions |
| Operating temperature (T-T) |
-20 - 80 °C |
| Storage temperature (T-T) |
-25 - 85 °C |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
| Packaging data |
| Cable diameter |
6 mm |
| Connector 1 dimensions (WxDxH) |
21 x 38.9 x 13.6 mm |
| Connector 2 dimensions (WxDxH) |
21 x 38.9 x 13.6 mm |
| Quantity per pack |
1 pc(s) |
| Package type |
Polybag |
| Sustainability |
| Sustainability certificates |
RoHS |
Features
Lindy 1m DisplayPort 1.2 Cable, Black Line. Cable length: 1 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Sustainability certificates: RoHS. Cable diameter: 6 mm, Connector 1 dimensions (WxDxH): 21 x 38.9 x 13.6 mm, Connector 2 dimensions (WxDxH): 21 x 38.9 x 13.6 mm
Product Description
Entry level DisplayPort cable for home and small office applications
Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 10bit
Robust PVC housing, nickel connectors, 24K gold plated contacts
Triple shielded cable, corrosion resistant copper 30AWG conductors
DisplayPort 1.2, 4K, 3D, 21.6Gbps; 10 year warranty
From the Lines cable connectivity concept developed by Lindy, Black Line DisplayPort cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
Black Line DisplayPort cables feature triple shielded construction with 30AWG copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit are supported. Black Line DisplayPort cables are also capable of transmitting 32 channel audio and Dolby True HD. Black Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.
Black Line DisplayPort cables are available in lengths: 0.5m, 1m, 1.5m, 2m and 3m
