Stock Status: 1x unit in stock

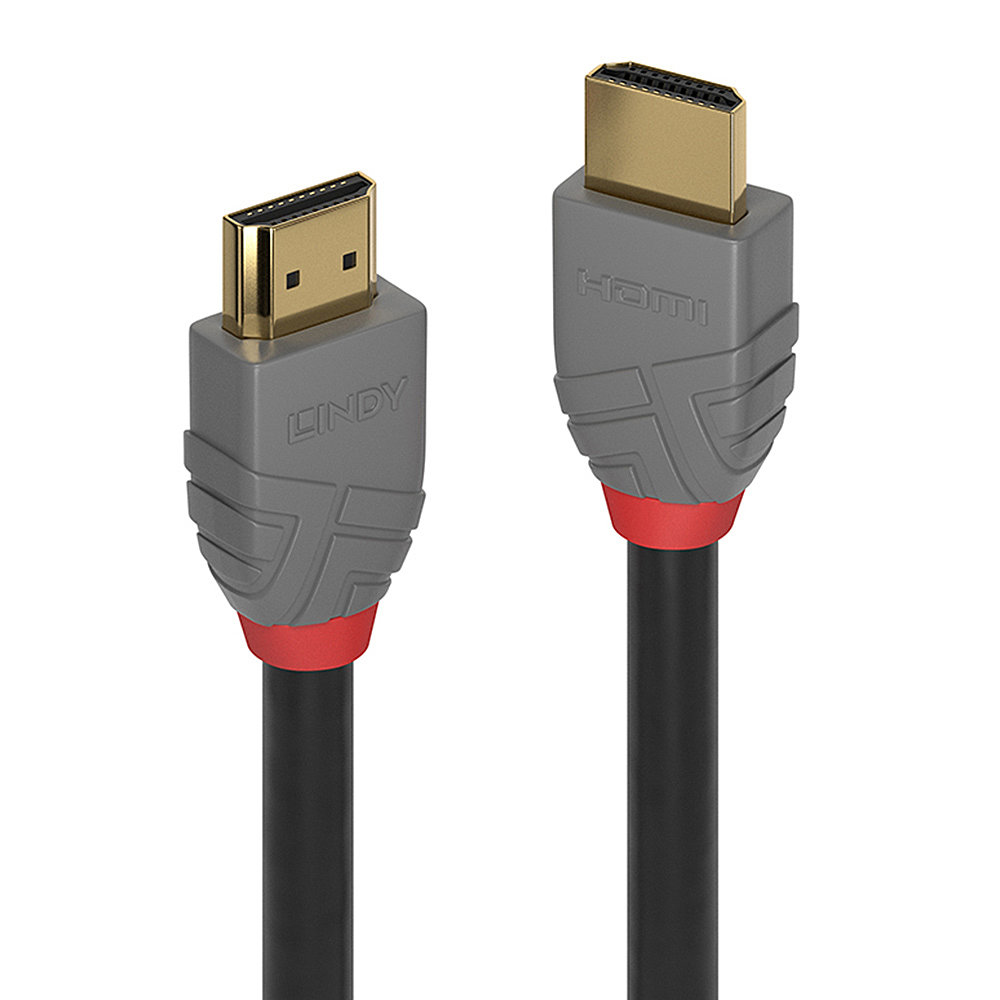

From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line HDMI cables are premium connections that feature triple shielded with 24AWG copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:2:0 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
These HDMI 2.0 cables support 10.2Gbps bandwidth capacity in cable lengths from 7.5m up to 20m.
Anthra Line HDMI cables are available in lengths from 0.3m to 20m.
Specs
| Features |
| Cable length |
7.5 m |
| Connector 1 |
HDMI Type A (Standard) |
| Connector 2 |
HDMI Type A (Standard) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Product colour |
Black, Grey |
| Connector contacts plating |
Gold |
| Quantity per pack |
1 pc(s) |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| HDMI version |
2.0 |
| 3D |
Yes |
| Supported graphics resolutions |
3840 x 2160 |
| Dolby technologies |
DTS-HD Master Audio, Dolby TrueHD |
| Data transfer rate |
10.2 Gbit/s |
| Maximum refresh rate |
60 Hz |
| AWG wire size |
24 |
| Contact material |
Phosphor bronze |
| Connector housing material |
Polyvinyl chloride (PVC) |
| Cable material |
Copper |
| Cable type |
Round cable |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Shield material |
Aluminium |
| Bending radius (min) |
9.8 cm |
| Colour sampling |
4:2:0 |
| Nominal attenuation |
300kHz-825MHz --- 15dB
825MHz-2.475GHz --- 15 - 29dB
2.475GHz-4.125GHz --- 29 - 44dB
4.125GHz-5.1GHz --- 44 - 48dB |
| Certification |
RoHS, REACH, UL |
| Weight & dimensions |
| Cable diameter |
9.8 mm |
| Connector 1 dimensions (WxDxH) |
21.4 x 41.44 x 12.7 mm |
| Connector 2 dimensions (WxDxH) |
21.4 x 41.44 x 12.7 mm |
| Package type |
Polybag |
| Operational conditions |
| Operating temperature (T-T) |
-20 - 80 °C |
| Storage temperature (T-T) |
-25 - 85 °C |
| Technical details |
| Compliance certificates |
RoHS |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
Features
Lindy 7.5m Standard HDMI Cable, Anthra Line. Cable length: 7.5 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, HDMI version: 2.0, 3D, Data transfer rate: 10.2 Gbit/s, Product colour: Black, Grey
Product Description
From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line HDMI cables are premium connections that feature triple shielded with 24AWG copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:2:0 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
These HDMI 2.0 cables support 10.2Gbps bandwidth capacity in cable lengths from 7.5m up to 20m.
Anthra Line HDMI cables are available in lengths from 0.3m to 20m.
