Stock Status: 1x unit in stock

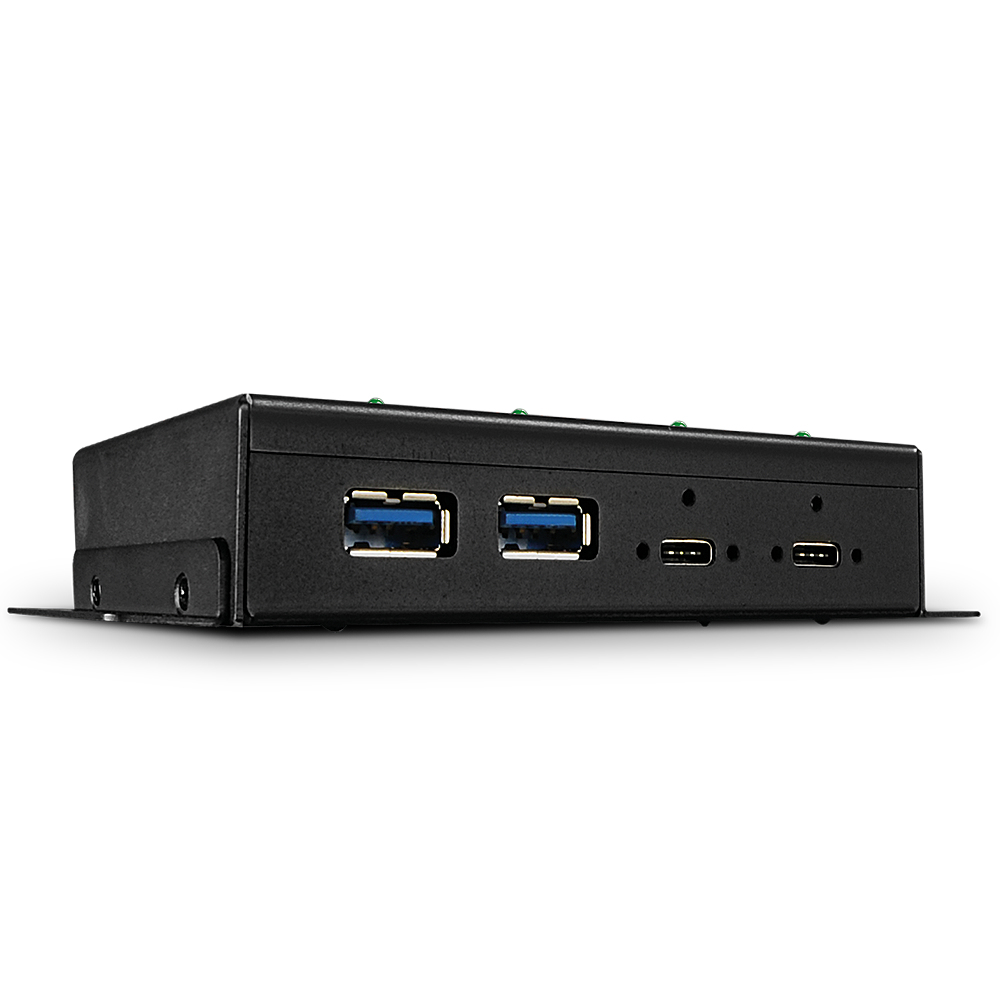

The Lindy 4 Port USB 3.2 Metal Hub has been designed to provide reliable performance in demanding operating environments at USB 3.2 Gen 2 speeds up to 10 Gbps.
This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection.
With robust metal housing and integrated mounting brackets this hub is the ideal solution for industrial environments. All Type C sockets of the hub allow the connection of single or dual screw USB 3.2 cables which are compliant with USB-IF Type C locking specification.
Each port features individual short circuit protection - and all 4 USB ports support the Battery Charging specification 1.2 with a total charging power of 17.5 Watt for all 4 ports. The hub can be powered by the included power supply or the terminal block, ensuring flexible, secure and uninterrupted electricity supplies.Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specs
| Operational conditions |
| Operating temperature (T-T) |
32 - 122 °F |
| Storage temperature (T-T) |
-25 - 85 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Power |
| Input voltage |
5 V |
| Input current |
4 A |
| Weight & dimensions |
| Width |
135 mm |
| Depth |
60 mm |
| Height |
24 mm |
| Weight |
229 g |
| Ports & interfaces |
| Ports quantity |
4 |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Hub interfaces |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| Terminal block port |
Yes |
| DC-in jack |
Yes |
| Packaging content |
| AC adapter included |
Yes |
| Cables included |
USB Type-C |
| Manual |
Yes |
| Logistics data |
| Harmonized System (HS) code |
84719000 |
| Packaging data |
| Package width |
230 mm |
| Package depth |
198 mm |
| Package height |
63 mm |
| Package weight |
667 g |
| Features |
| Data transfer rate |
10000 Mbit/s |
| Product colour |
Black |
| Housing material |
Metal |
| Certification |
CE, FCC, RoHS, REACH |
Features
Lindy 4 Port USB 3.2 Gen 2 Type C Metal Hub. Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, Hub interfaces: USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Data transfer rate: 10000 Mbit/s, Product colour: Black, Housing material: Metal. Input voltage: 5 V, Input current: 4 A. Width: 135 mm, Depth: 60 mm, Height: 24 mm. Package width: 230 mm, Package depth: 198 mm, Package height: 63 mm
Product Description
The Lindy 4 Port USB 3.2 Metal Hub has been designed to provide reliable performance in demanding operating environments at USB 3.2 Gen 2 speeds up to 10 Gbps.
This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection.
With robust metal housing and integrated mounting brackets this hub is the ideal solution for industrial environments. All Type C sockets of the hub allow the connection of single or dual screw USB 3.2 cables which are compliant with USB-IF Type C locking specification.
Each port features individual short circuit protection - and all 4 USB ports support the Battery Charging specification 1.2 with a total charging power of 17.5 Watt for all 4 ports. The hub can be powered by the included power supply or the terminal block, ensuring flexible, secure and uninterrupted electricity supplies.Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
