Stock Status: 1x unit in stock

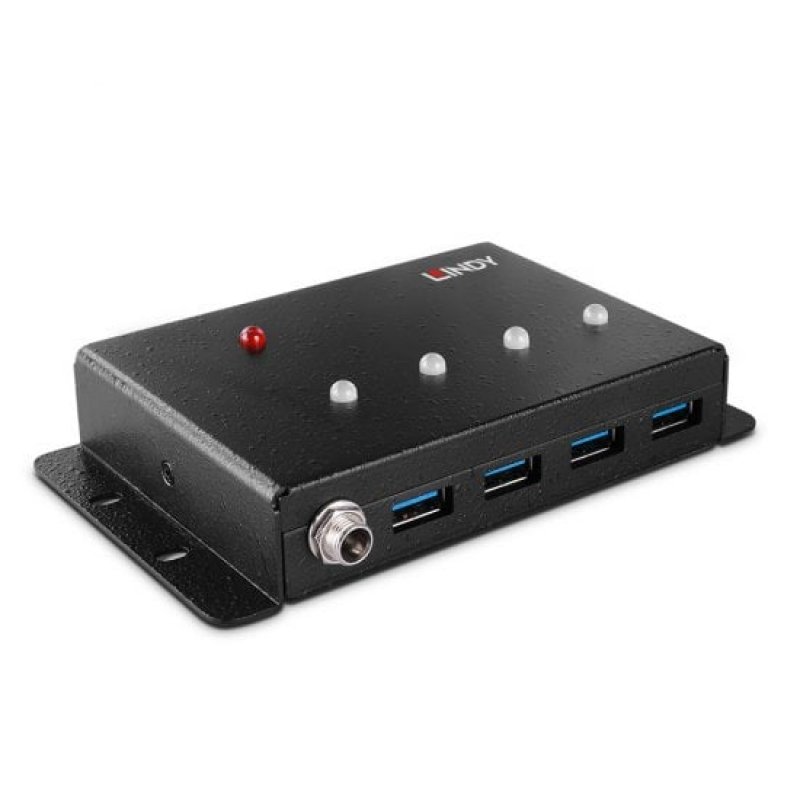

The Lindy 4 Port USB 3.0 Metal Hub has been designed to provide reliable performance in demanding operational environments. This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection. With robust metal housing and integrated mounting brackets this Hub is the ideal solution for use in industrial environments.
Backwards compatibility with USB 2.0/1.1/1.0 means the hub can simultaneously support older USB peripherals or systems that lack USB 3.0 capabilities, extending their lifetime and giving a greater return on investment. The hub also supports MTT technology which guarantees highest possible throughput speed for USB 1.1 devices.
Each port features individual short circuit protection, while the included power supply ensures secure and uninterrupted electricity supply.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specs
| Operational conditions |
| Maximum operating temperature |
50 °C |
| Operating temperature (T-T) |
-20 - 60 °F |
| Operating relative humidity (H-H) |
0 - 90% |
| Power |
| Power supply type |
DC |
| Weight & dimensions |
| Width |
125 mm |
| Depth |
74.6 mm |
| Height |
22 mm |
| Weight |
256 g |
| Ports & interfaces |
| Ports quantity |
4 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Hub interfaces |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Packaging content |
| Manual |
Yes |
| Technical details |
| Compliance certificates |
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
260 mm |
| Package depth |
180 mm |
| Package height |
70 mm |
| Package weight |
650 g |
| Package type |
Box |
| Features |
| Data transfer rate |
5000 Mbit/s |
| Product colour |
Black |
| Housing material |
Metal |
| LED indicators |
Yes |
| Cable type |
Round cable |
| Cable length |
0.8 m |
| Certification |
CE, UKCA, FCC, RoHS & REACH, California Proposition 65 |
| Sustainability |
| Sustainability certificates |
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Sustainability compliance |
Yes |
Features
Lindy 4 Port USB 3.0 Metal Hub. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Black, Housing material: Metal. Power supply type: DC. Width: 125 mm, Depth: 74.6 mm, Height: 22 mm. Quantity per pack: 1 pc(s), Package width: 260 mm, Package depth: 180 mm
Product Description
The Lindy 4 Port USB 3.0 Metal Hub has been designed to provide reliable performance in demanding operational environments. This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection. With robust metal housing and integrated mounting brackets this Hub is the ideal solution for use in industrial environments.
Backwards compatibility with USB 2.0/1.1/1.0 means the hub can simultaneously support older USB peripherals or systems that lack USB 3.0 capabilities, extending their lifetime and giving a greater return on investment. The hub also supports MTT technology which guarantees highest possible throughput speed for USB 1.1 devices.
Each port features individual short circuit protection, while the included power supply ensures secure and uninterrupted electricity supply.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
