Stock Status: 1x unit in stock

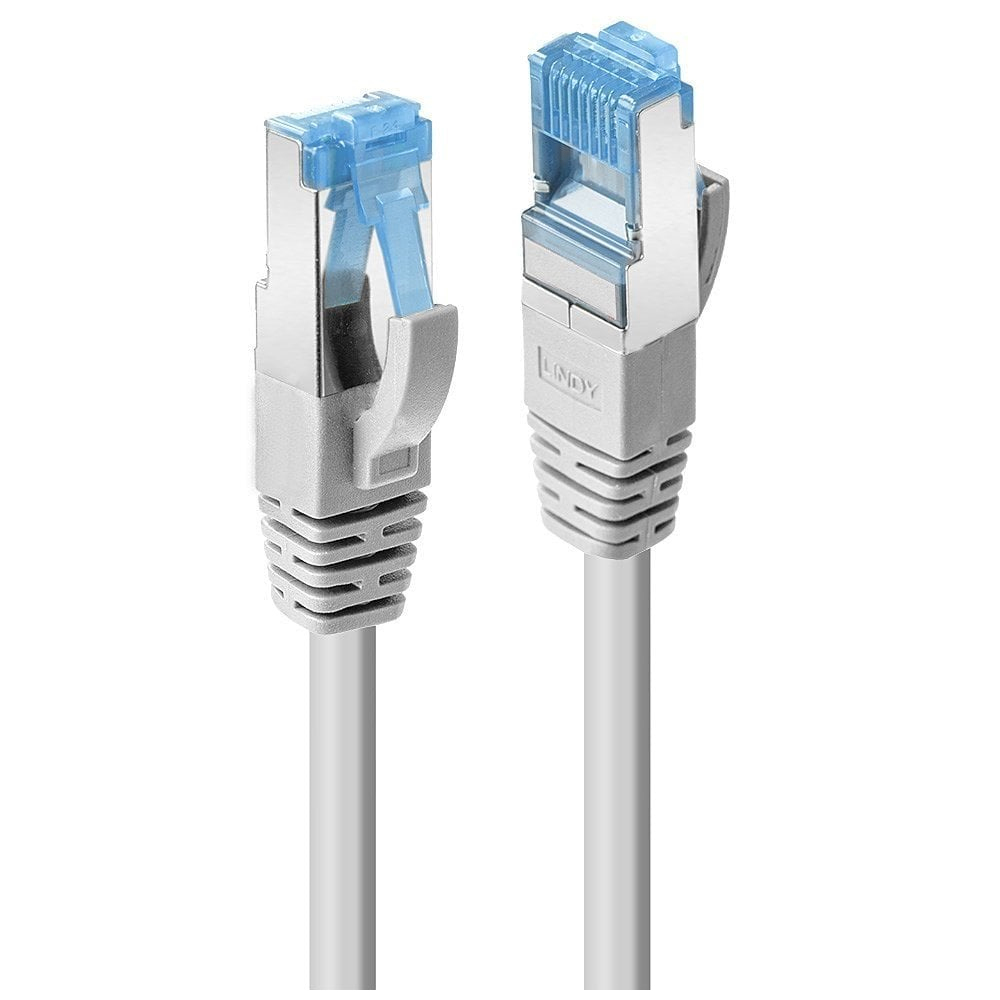

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths:0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m, 50m, 70m, 100m.
Available colours: Black, Blue, Grey, Red, White
Specs
| Weight & dimensions |
| Width |
11.6 mm |
| Depth |
21.5 mm |
| Height |
8.3 mm |
| Outer diameter |
6 mm |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package type |
Polybag |
| Operational conditions |
| Operating temperature (T-T) |
-10 - 60 °C |
| Storage temperature (T-T) |
-20 - 75 °C |
| Features |
| Cable length |
100 m |
| Cable standard |
Cat6a |
| Cable shielding |
S/FTP (S-STP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Product colour |
Grey |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Connector contacts plating |
Nickel |
| Connector shielding |
Yes |
| Connector shield material |
Aluminium |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Cable shape |
Round |
| Conductor material |
Copper |
| Cable class |
Ea |
| Cabling technology |
10GBase-T |
| Ethernet interface type |
10 Gigabit Ethernet |
| AWG wire size |
27 |
| Data transfer rate |
1000 Mbit/s |
| Frequency |
500 MHz |
| Bend radius (min) |
7.2 cm |
| Snagless cable boot |
Yes |
| Plug and Play |
Yes |
| Nominal attenuation |
49.3dB/100m @ 500MHz |
| Certification |
RoHS, REACH, UL |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
| Technical details |
| Sustainability certificates |
UL ECOLOGO |
| Compliance certificates |
REACH, RoHS |
| Sustainability compliance |
Yes |
Features
Lindy 100m Cat.6A S/FTP LSZH Cable, Grey. Cable length: 100 m, Cable standard: Cat6a, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Nickel, Data transfer rate: 1000 Mbit/s, Product colour: Grey
Product Description
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths:0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m, 50m, 70m, 100m.
Available colours: Black, Blue, Grey, Red, White
