Stock Status: 1x unit in stock
High performance hub with active cable that provides an extended 10m connection between a computer and up to 4 USB 3.0 devices
Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of over 40m (depending on the cable configurations used)
Supports the full USB 3.0 SuperSpeed bandwidth for speeds of 5Gbps
Easy to use – connects to the device’s existing USB cable (5m maximum)
2 year warranty

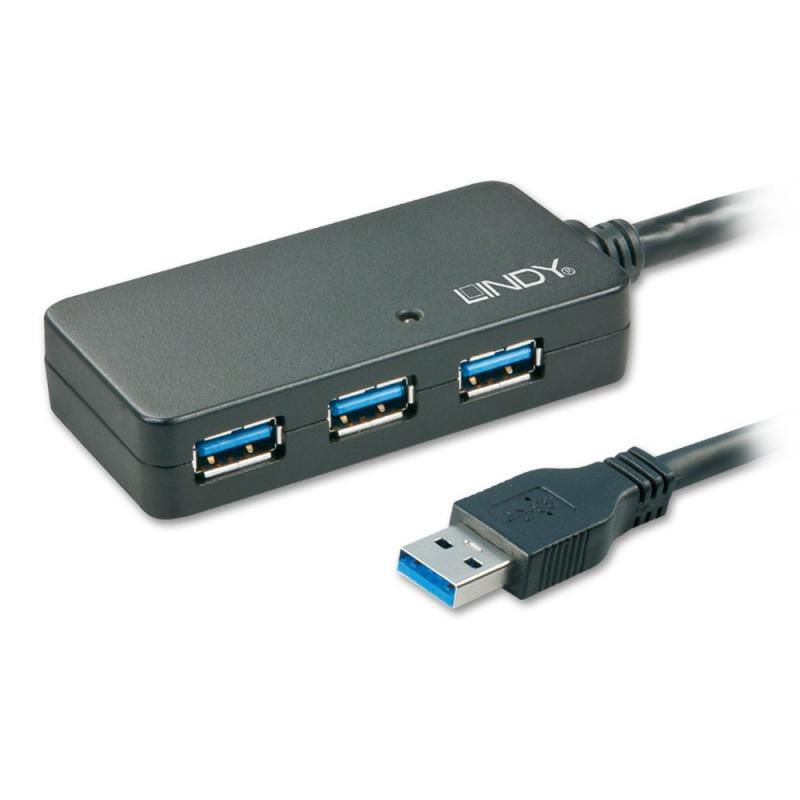

The Lindy USB Active Extension Hub Pro is a high performance hub with active cable that allows access to four USB 3.0 SuperSpeed peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension hub is perfect for transferring large data volumes quickly and reliably.
This 10m extension hub can be used standalone or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to about 40m (depending on the cable configurations used).
Please note that only the USB 3.0 Active Extension Pro 8m (Nr. 43158) or 15m (Nr. 43229) can be connected directly to your computer. If you are creating an extension using multiple units from the Extension Pro System then the first unit must always be the USB 3.0 Active Extension Pro 8m (Nr. 43158) or 15m (Nr. 43229). Once the first cable has been connected, you can then cascade further cables to achieve a maximum distance of 40m. The final part of the extension can be any of the three parts of the Extension Pro System. If you need to extend multiple devices or if you connect a USB device with high power requirement, then you should use the 10m Hub Pro unit (Nr. 43159) with it’s power supply as the final part of the extension.
This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specs
| Operational conditions |
| Operating temperature (T-T) |
-20 - 60 °F |
| Power |
| Power note |
3.5/1.35mm DC |
| Weight & dimensions |
| Width |
80 mm |
| Depth |
38 mm |
| Height |
15 mm |
| Weight |
790 g |
| Connector 1 dimensions (WxDxH) |
15 x 42 x 8 mm |
| Ports & interfaces |
| Ports quantity |
4 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Hub interfaces |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| DC-in jack |
Y |
| Packaging content |
| Manual |
Y |
| Design |
| Cable shielding |
Aluminum mylar foil |
| Logistics data |
| Harmonized System (HS) code |
84719000 |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
240 mm |
| Package depth |
200 mm |
| Package height |
70 mm |
| Package weight |
900 g |
| Package type |
Box |
| Features |
| Data transfer rate |
5000 Mbit/s |
| Product colour |
Black |
| Housing material |
Plastic |
| LED indicators |
Y |
| Cable type |
Round cable |
| Plating material |
Nickel |
| AWG wire size |
24/24/20 |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Cable length |
10 m |
| Cable diameter |
7 mm |
| Conductor material |
Tinned copper |
| Contact material |
Brass |
| Connector contacts plating |
Gold |
| Plug and Play |
Y |
| Bend radius (min) |
3.6 cm |
| Transmission medium |
Twisted pair |
| Nominal attenuation |
0.064MHz - 0.08dB
0.256MHz - 0.11dB
0.512MHz - 0.13dB
0.772MHz - 0.15dB
1.0MHz - 0.20dB
4MHz - 0.39dB
8MHz - 0.57dB
12MHz - 0.67dB
24MHz - 0.95dB
48MHz - 1.35dB
96MHz - 1.90dB
200MHz - 3.20dB
400MHz - 5.80dB |
| Certification |
CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
Features
Lindy 10m USB 3.0 Active Extension Hub Pro 4 Port. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Black, Housing material: Plastic. Power note: 3.5/1.35mm DC. Width: 80 mm, Depth: 38 mm, Height: 15 mm. Quantity per pack: 1 pc(s), Package width: 240 mm, Package depth: 200 mm
Product Description
High performance hub with active cable that provides an extended 10m connection between a computer and up to 4 USB 3.0 devices
Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of over 40m (depending on the cable configurations used)
Supports the full USB 3.0 SuperSpeed bandwidth for speeds of 5Gbps
Easy to use – connects to the device’s existing USB cable (5m maximum)
2 year warranty
The Lindy USB Active Extension Hub Pro is a high performance hub with active cable that allows access to four USB 3.0 SuperSpeed peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension hub is perfect for transferring large data volumes quickly and reliably.
This 10m extension hub can be used standalone or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to about 40m (depending on the cable configurations used).
Please note that only the USB 3.0 Active Extension Pro 8m (Nr. 43158) or 15m (Nr. 43229) can be connected directly to your computer. If you are creating an extension using multiple units from the Extension Pro System then the first unit must always be the USB 3.0 Active Extension Pro 8m (Nr. 43158) or 15m (Nr. 43229). Once the first cable has been connected, you can then cascade further cables to achieve a maximum distance of 40m. The final part of the extension can be any of the three parts of the Extension Pro System. If you need to extend multiple devices or if you connect a USB device with high power requirement, then you should use the 10m Hub Pro unit (Nr. 43159) with it’s power supply as the final part of the extension.
This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
