Stock Status: 1x unit in stock
Converts a DisplayPort signal into VGA
Supports resolutions up to 1920x1080@60Hz
Can be used to add a secondary monitor for extended or mirrored desktop
Compact dimensions for easy installation and use
2 year warranty

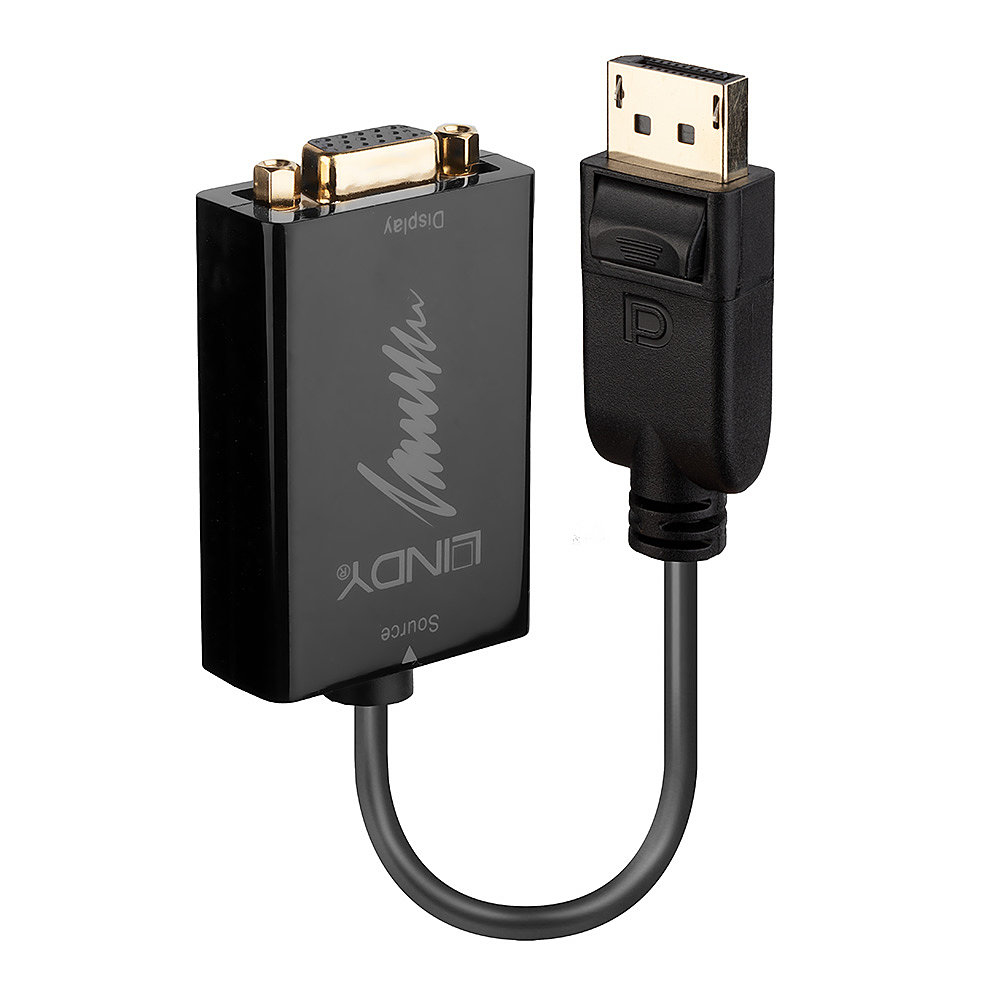

The Lindy DisplayPort to VGA Converter is ideal for connecting a DisplayPort equipped source such as a PC or laptop to a VGA monitor. It supports high definition video resolutions up to 1920x1080@60Hz. Active conversion ensures compatibility with various graphics cards including AMD Eyefinity, NVIDIA surround and Intel Collage.
This converter can also be used to add a secondary monitor for extended or mirrored desktop modes to increase productivity and screen real estate. Internal copper shielding provides enhanced reliability and compatibility. The converter is also ideally suited for travelling due to its compact, lightweight form factor and convenient plug & play installation.
Specs
| Features |
| Cable length |
0.15 m |
| Connector 1 |
VGA (D-Sub) |
| Connector 2 |
DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Connector contacts plating |
Gold |
| DisplayPort version |
1.2 |
| Maximum resolution |
1920 x 1080 pixels |
| Supported graphics resolutions |
1920 x 1080 (HD 1080) |
| Data transfer rate |
10.8 Gbit/s |
| Maximum refresh rate |
60 Hz |
| Bend radius (min) |
7 cm |
| Product colour |
Black |
| Chipset |
ANX9833 |
| Jacket material |
Polyvinyl chloride (PVC) |
| Connector housing material |
Thermoplastic elastomer (TPE) |
| Plug and Play |
Y |
| Certification |
CE, UKCA, FCC, RoHS, REACH |
| Operational conditions |
| Operating temperature (T-T) |
-20 - 80 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Weight & dimensions |
| Cable diameter |
6.5 mm |
| Connector 1 dimensions (WxDxH) |
38 x 61 x 17 mm |
| Connector 2 dimensions (WxDxH) |
20 x 36 x 11 mm |
| Weight |
45 g |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
160 mm |
| Package depth |
20 mm |
| Package height |
160 mm |
| Package type |
Polybag |
| Package weight |
49 g |
Features
Lindy DisplayPort to VGA Active Converter. Cable length: 0.15 m, Connector 1: VGA (D-Sub), Connector 2: DisplayPort. Cable diameter: 6.5 mm, Connector 1 dimensions (WxDxH): 38 x 61 x 17 mm, Connector 2 dimensions (WxDxH): 20 x 36 x 11 mm. Quantity per pack: 1 pc(s), Package width: 160 mm, Package depth: 20 mm
Product Description
Converts a DisplayPort signal into VGA
Supports resolutions up to 1920x1080@60Hz
Can be used to add a secondary monitor for extended or mirrored desktop
Compact dimensions for easy installation and use
2 year warranty
The Lindy DisplayPort to VGA Converter is ideal for connecting a DisplayPort equipped source such as a PC or laptop to a VGA monitor. It supports high definition video resolutions up to 1920x1080@60Hz. Active conversion ensures compatibility with various graphics cards including AMD Eyefinity, NVIDIA surround and Intel Collage.
This converter can also be used to add a secondary monitor for extended or mirrored desktop modes to increase productivity and screen real estate. Internal copper shielding provides enhanced reliability and compatibility. The converter is also ideally suited for travelling due to its compact, lightweight form factor and convenient plug & play installation.
