4K 2-Port HDMI Splitter - Easily split a single HDMI audio/video signal across two HDMI displays in 4K60 UHD and HDR

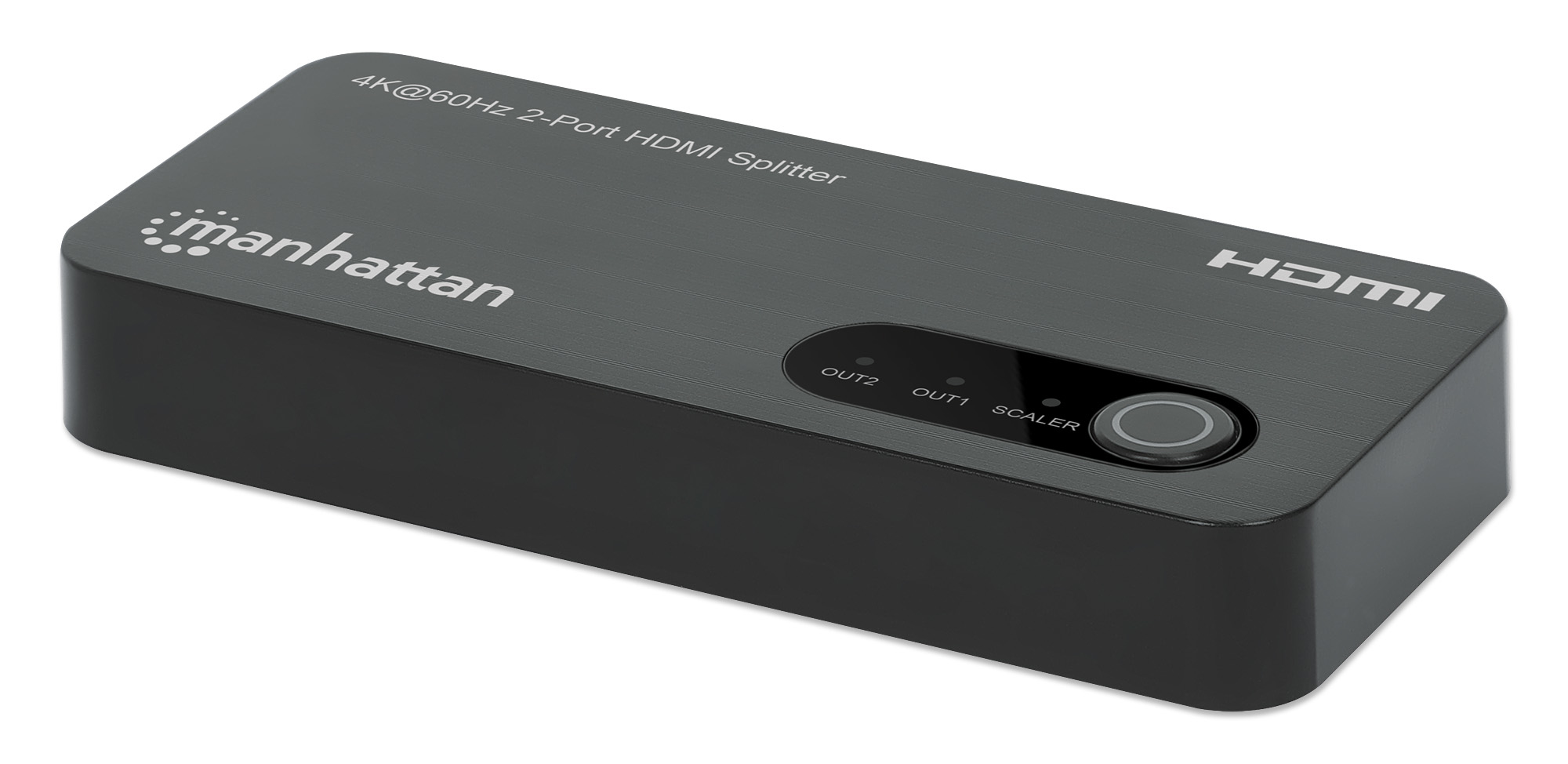

The compact Manhattan 4K@60Hz 2-Port HDMI Splitter duplicates a signal from a single HDMI source to dual displays without distorting or degrading your video.
Flexible solution with downscaling from 4K to 1080p for many A/V Applications
Ideal for trade shows, classrooms, video conferencing, presentations and retail applications, this 1x2 Splitter is a great choice for splitting and distributing a synchronous signal to two displays when source equipment is remotely stored in a secured room or cabinet. Cascade multiple units up to three levels to output HDMI video/audio to additional displays in widely distributed applications. A smart EDID management switch on the unit can downscale a 4K input signal to Full HD (or lower), making installations with older displays hassle-free.
Easy installation and wide compatibility
Full compliance with HDMI 2.0 and HDCP 2.3 ensures that this 2-way Splitter can provide reliable performance. Quickly connect HDMI cables (not included) and the Micro-USB power cable to complete this affordable Ultra-High-Definition, 4K HDMI solution - no software/hardware configuration or complicated settings required. Full backward compatibility with 4K@30Hz and 1080p displays ensures that it will work with any HDMI source or destination device. This 4K Splitter is perfect for digital signage applications, where equipment may vary throughout your site.
High-quality video
With transmission bandwidth up to 18 Gbps, this HDMI Splitter supports UHD resolutions up to 3840x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color. Additional support for High-Dynamic Range (HDR) ensures that video content can be seen with enhanced brightness and superior contrasts.
Specs
| Technical details |
| Maximum cable length |
5 m |
| Compliance certificates |
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Packaging content |
| Manual |
Yes |
| Cables included |
USB Type-A to Micro USB-B |
| Packaging content |
4K@60Hz 2-Port HDMI Splitter with Downscaling
Micro-USB to USB-A power cable, 0.8 m (2.6 ft.)
Instructions |
| Ports & interfaces |
| Video ports quantity |
2 |
| Video port type |
HDMI |
| Video out |
2x HDMI |
| HDMI version |
2.0 |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
45 mm |
| Depth |
102 mm |
| Height |
15 mm |
| Weight |
47 g |
| Power |
| Power consumption (max) |
5 W |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
92 mm |
| Package depth |
125 mm |
| Package height |
17 mm |
| Package weight |
185 g |
| Package type |
Box |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-20 - 80 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Logistics data |
| Master (outer) case width |
270 mm |
| Master (outer) case length |
395 mm |
| Master (outer) case height |
210 mm |
| Master (outer) case gross weight |
7.5 kg |
| Products per master (outer) case |
80 pc(s) |
| Features |
| Maximum resolution |
3840 x 2160 pixels |
| Product colour |
Black |
| Housing material |
Plastic |
| HD type |
4K Ultra HD |
| Maximum refresh rate |
60 Hz |
| Bandwidth |
600 MHz |
| HDCP version |
2.3 |
| Extended display identification data (EDID) |
Yes |
| Cable length |
0.8 m |
| Data transfer rate |
18 Gbit/s |
| HDCP |
Yes |
| Supported video modes |
480p, 576i, 720p, 1080i, 1080p, 2160p |
| LED indicators |
Yes |
| Number of displays supported |
2 |
| Sustainability |
| Sustainability compliance |
Yes |
Features
Manhattan 4K@60Hz 2-Port HDMI Splitter Splits One HDMI Input to Two HDMI Outputs (1x2), 18G, Micro-USB input for power, EDID Switch for Downscaling to 1080p, Black, 3 year warranty. Video port type: HDMI, Video out: 2x HDMI. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, Housing material: Plastic. Power consumption (max): 5 W. Width: 45 mm, Depth: 102 mm, Height: 15 mm. Quantity per pack: 1 pc(s), Package width: 92 mm, Package depth: 125 mm
Product Description
4K 2-Port HDMI Splitter - Easily split a single HDMI audio/video signal across two HDMI displays in 4K60 UHD and HDR
The compact Manhattan 4K@60Hz 2-Port HDMI Splitter duplicates a signal from a single HDMI source to dual displays without distorting or degrading your video.
Flexible solution with downscaling from 4K to 1080p for many A/V Applications
Ideal for trade shows, classrooms, video conferencing, presentations and retail applications, this 1x2 Splitter is a great choice for splitting and distributing a synchronous signal to two displays when source equipment is remotely stored in a secured room or cabinet. Cascade multiple units up to three levels to output HDMI video/audio to additional displays in widely distributed applications. A smart EDID management switch on the unit can downscale a 4K input signal to Full HD (or lower), making installations with older displays hassle-free.
Easy installation and wide compatibility
Full compliance with HDMI 2.0 and HDCP 2.3 ensures that this 2-way Splitter can provide reliable performance. Quickly connect HDMI cables (not included) and the Micro-USB power cable to complete this affordable Ultra-High-Definition, 4K HDMI solution - no software/hardware configuration or complicated settings required. Full backward compatibility with 4K@30Hz and 1080p displays ensures that it will work with any HDMI source or destination device. This 4K Splitter is perfect for digital signage applications, where equipment may vary throughout your site.
High-quality video
With transmission bandwidth up to 18 Gbps, this HDMI Splitter supports UHD resolutions up to 3840x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color. Additional support for High-Dynamic Range (HDR) ensures that video content can be seen with enhanced brightness and superior contrasts.
