Stock Status: 1x unit in stock
Rugged Cordless 1D / 2D USB Barcode Scanner that helps you improve Productivity in Retail, Hospitality, Warehousing, and Harsh Environments

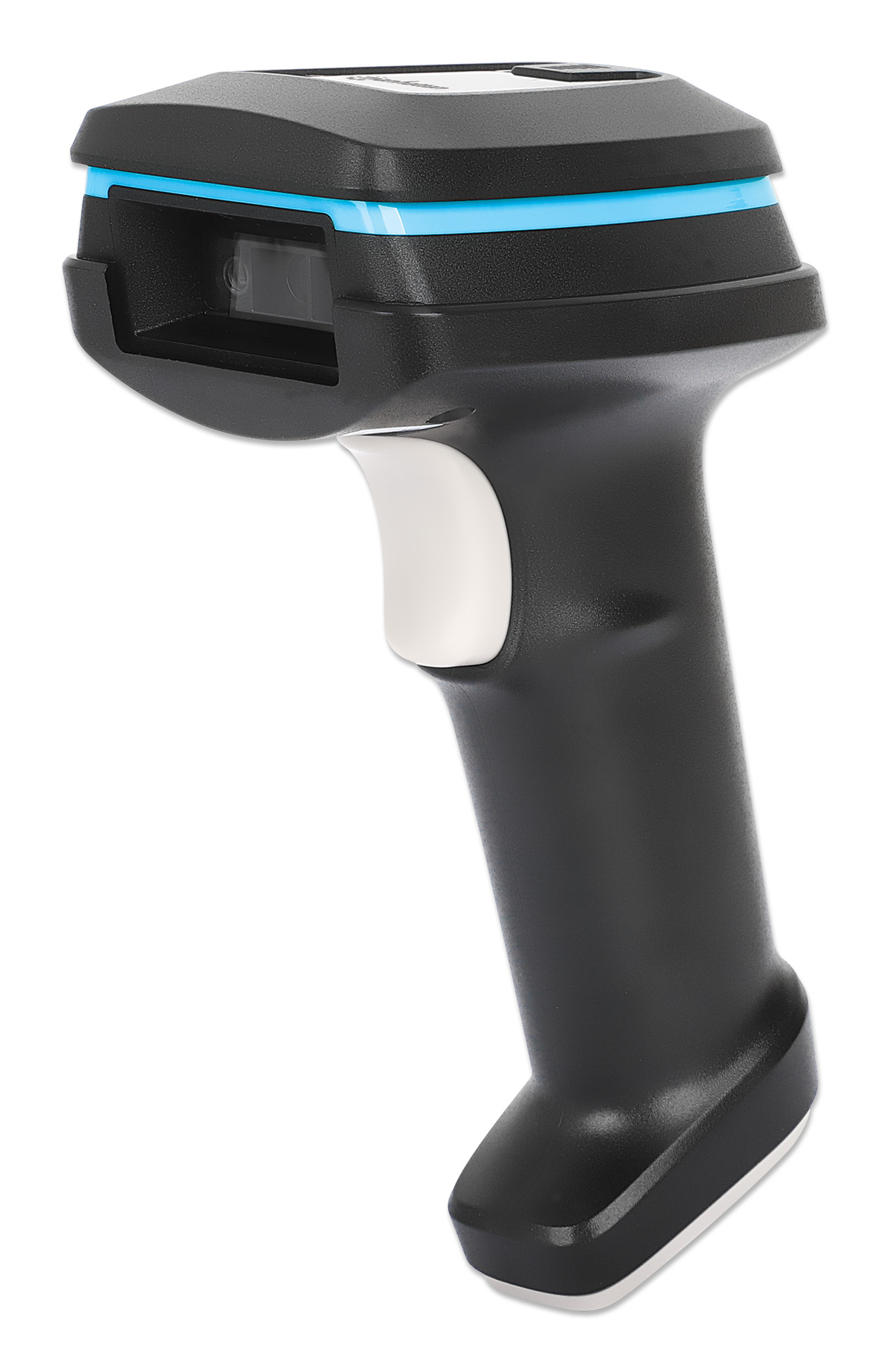

The Manhattan Wireless 2D Long Range LED Barcode Scanner is your durable solution for streamlined data entry and enhanced efficiency to help improve routine transactions and automate paper-based processes. Capture barcodes from mobile devices, 1D and 2D Paper barcodes on items for sale, coupons, loyalty cards and more. This scanner is built for such different industries as retail/point-of-sale, healthcare, hospitality, warehousing or logistics.
Wireless Connectivity with Computers and Mobile Devices
For classic, simple USB plug-and-play installation, just connect the nano receiver to a USB-A port on your PC, MacBook, or similar device. Alternatively, pair the scanner directly via Wireless 4.2 with all devices, including your iPad® and Android tablet. The transmission range from your host device to the scanner is up to 100 m (328 ft.) with the included 2.4 GHz RF dongle or up to 50 m (164 ft.) with Wireless 4.2.
Quick and Accurate Reads Every Time
With its wide scan field and scan depth of up to 450 mm (17.7 in.) , it ensures quick and accurate reads every time. Significantly reduce errors and delays for seamless operations in your daily business.
Versatile Compatibility for Many Symbologies
Equipped with advanced technology, it detects a wide range of popular 1D and 2D symbologies, including UPC, EAN, QR Code, Data Matrix, PDF417, and many more. Whether it's barcodes or intricate QR codes, it handles it all with precision and speed.
Rugged Design for Harsh Environments
Featuring an IP52-rated housing, our scanner is built to withstand harsh environments with protection against dust and water ingress.
Reliable Performance in Any Lighting Condition
Experience maximum reliability even in the most challenging lighting conditions. With an exceptional ambient light tolerance of 100,000 lux, this scanner delivers reliable readings even in direct sunlight, ensuring uninterrupted workflow.
Enhanced Convenience with our Barcode Scanner Stand
For added convenience, pair our scanner with the Manhattan Barcode Scanner Stand #154192 for hands-free operation, ideal for busy retail environments and automated processes.
Specs
| Weight & dimensions |
| Weight |
200 g |
| Width |
67 mm |
| Depth |
87 mm |
| Height |
172 mm |
| Operational conditions |
| Operating temperature (T-T) |
-10 - 50 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
20 - 95% |
| Drop resistance |
1.2 m |
| Power |
| Power source type |
Battery |
| Charging port type |
USB Type-C |
| Battery capacity |
2000 mAh |
| Battery voltage |
3.7 V |
| Charging time |
5 h |
| Power consumption |
280 mA |
| Ports & interfaces |
| Connectivity technology |
Wireless |
| Standard interfaces |
RF Wireless |
| Wireless range |
80 m |
| Cable length |
1 m |
| Scanning |
| Type |
Handheld bar code reader |
| Scanner type |
1D/2D |
| Sensor type |
LED |
| Linear (1D) barcodes supported |
China Post, Codabar, Code 11, Code 128, Code 39, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, GS1-128 (UCC/EAN-128), ISSN, Industrial 2 of 5, Interleaved 2 of 5, MSI, Matrix 2 of 5, Telep |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Data Matrix, Dot Code A, Grid Matrix Code, MaxiCode, MicroPDF417, PDF417, QR Code |
| Optical sensor resolution (W x H) |
1280 x 800 pixels |
| 1D resolution (min) |
0.076 mm |
| 2D resolution (min) |
0.18 mm |
| Working distance |
45 cm |
| Horizontal field of view |
45° |
| Vertical field of view |
36° |
| Read rate (max) |
60 reads/s |
| Light levels (direct sunlight) |
0 - 100000 lx |
| Performance |
| Product colour |
Black |
| Housing material |
Acrylonitrile butadiene styrene (ABS) |
| International Protection (IP) code |
IP52 |
| Protection features |
Drop resistant |
| Print contrast |
20% |
| Mean time between failures (MTBF) |
50000 h |
| Logistics data |
| Products per master (outer) case |
40 pc(s) |
| Master (outer) case gross weight |
12.8 kg |
| Master (outer) case length |
565 mm |
| Master (outer) case width |
360 mm |
| Master (outer) case height |
400 mm |
| Technical details |
| Warranty period |
3 year(s) |
| Compliance certificates |
CE, REACH, RoHS, UKCA, Federal Communications Commission (FCC) |
| Packaging data |
| Cables included |
USB Type-A to USB Type-C |
| Receiver included |
Yes |
| Receiver type |
Nano receiver |
| Package width |
175 mm |
| Package depth |
80 mm |
| Package height |
108 mm |
| Package weight |
320 g |
Features
Manhattan Wireless 2D Handheld Barcode Scanner, 250mm Scan Depth, up to 80m effective range (line of sight), Max Ambient Light 100,000 lux (sunlight), Black, Charging cable (USB-A to USB-C into device) 1m included, Three Year Warranty. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wireless, Standard interfaces: RF Wireless, Wireless range: 80 m. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS), International Protection (IP) code: IP52. Power source type: Battery, Charging port type: USB Type-C, Battery capacity: 2000 mAh. Weight: 200 g, Width: 67 mm, Depth: 87 mm
Product Description
Rugged Cordless 1D / 2D USB Barcode Scanner that helps you improve Productivity in Retail, Hospitality, Warehousing, and Harsh Environments
The Manhattan Wireless 2D Long Range LED Barcode Scanner is your durable solution for streamlined data entry and enhanced efficiency to help improve routine transactions and automate paper-based processes. Capture barcodes from mobile devices, 1D and 2D Paper barcodes on items for sale, coupons, loyalty cards and more. This scanner is built for such different industries as retail/point-of-sale, healthcare, hospitality, warehousing or logistics.
Wireless Connectivity with Computers and Mobile Devices
For classic, simple USB plug-and-play installation, just connect the nano receiver to a USB-A port on your PC, MacBook, or similar device. Alternatively, pair the scanner directly via Wireless 4.2 with all devices, including your iPad® and Android tablet. The transmission range from your host device to the scanner is up to 100 m (328 ft.) with the included 2.4 GHz RF dongle or up to 50 m (164 ft.) with Wireless 4.2.
Quick and Accurate Reads Every Time
With its wide scan field and scan depth of up to 450 mm (17.7 in.) , it ensures quick and accurate reads every time. Significantly reduce errors and delays for seamless operations in your daily business.
Versatile Compatibility for Many Symbologies
Equipped with advanced technology, it detects a wide range of popular 1D and 2D symbologies, including UPC, EAN, QR Code, Data Matrix, PDF417, and many more. Whether it's barcodes or intricate QR codes, it handles it all with precision and speed.
Rugged Design for Harsh Environments
Featuring an IP52-rated housing, our scanner is built to withstand harsh environments with protection against dust and water ingress.
Reliable Performance in Any Lighting Condition
Experience maximum reliability even in the most challenging lighting conditions. With an exceptional ambient light tolerance of 100,000 lux, this scanner delivers reliable readings even in direct sunlight, ensuring uninterrupted workflow.
Enhanced Convenience with our Barcode Scanner Stand
For added convenience, pair our scanner with the Manhattan Barcode Scanner Stand #154192 for hands-free operation, ideal for busy retail environments and automated processes.
