| Power |
| Input voltage |
250 V |
| Input current |
10 A |
| Weight & dimensions |
| Width |
482 mm |
| Depth |
534 mm |
| Height |
89 mm |
| Weight |
11 kg |
| Power |
| Power supply location |
Built-in |
| Power supply unit (PSU) capacity |
250 W |
| Redundant power supply (RPS) support |
Y |
| Power consumption (typical) |
107.3 W |
| Power consumption (sleep) |
51.29 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
47 - 63 Hz |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Networking |
| Ethernet LAN |
Y |
| Wi-Fi |
N |
| Ethernet LAN data rates |
10,100,1000,5000,10000 Mbit/s |
| Ethernet LAN data rate supported (max) |
10000 Mbit/s |
| DHCP client |
Y |
| DHCP server |
Y |
| Jumbo frames support |
Y |
| iSCSI support |
Y |
| Wake-on-LAN ready |
Y |
| Link aggregation |
Y |
| Dynamic DNS (DDNS) |
Y |
| WLAN adapter supported |
Y |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
4 |
| USB port |
Y |
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Fiber ports quantity |
1 |
| Fiber optic connector |
SFP+ |
| Memory |
| Internal memory |
4 GB |
| Internal memory type |
DDR3L |
| Memory clock speed |
1600 MHz |
| Maximum RAM supported |
16 GB |
| Memory slots |
2x SODIMM |
| Flash memory |
512 MB |
| Processor |
| Processor frequency |
2 GHz |
| Processor family |
AMD G |
| Processor model |
GX-420MC |
| Processor cores |
4 |
| Storage |
| Total installed storage capacity |
80 TB |
| Storage drives installed |
Y |
| Installed storage drive type |
HDD |
| Supported storage drive types |
HDD,SSD |
| Number of storage drives supported |
8 |
| Storage drive interface |
Serial ATA III |
| Storage drive size |
3.5" |
| RAID support |
Y |
| Hot-swap drive bays |
Y |
| Supported storage drive interfaces |
Serial ATA,Serial ATA II,Serial ATA III |
| Storage drive sizes supported |
2.5,3.5" |
| RAID levels |
0,1,5+S,5,6,10+HS,10,50,60,JBOD |
| Online RAID migration |
Y |
| Online RAID expansion |
Y |
| RAID rebuild |
Y |
| Supported file systems |
FAT32,HFS+,NTFS,ext3,ext4 |
| Auto-rebuild |
Y |
| Bad block scan |
Y |
| Disk roaming |
Y |
| Packaging content |

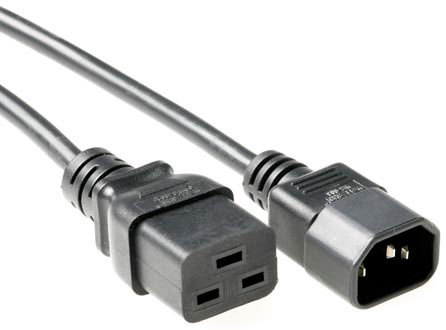

| Cables included |
AC,LAN (RJ-45) |
| Quick installation guide |
Y |
| Features |
| Cable colour |
Black |
| Connector gender |
Male/Female |
| Cable length |
2 m |
| Connector 1 |
C19 coupler |
| Connector 2 |
C14 coupler |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Cable type |
H05VV-F |
| Number of cable cores |
3 |
| Core size |
1 mm² |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Product colour |
Black |
| Performance |
| Type |
NAS |
| Device class |
Small & Medium Business |
| Backup function |
Y |
| Backup features |
Cloud,iSCSI LUN |
| Number of users |
4096 user(s) |
| Noise level |
36.4 dB |
| Third-party support |
Y |
| Video input channels |
8 channels |
| Snapshot |
Y |
| Management protocols |
SNMP |
| Security algorithms |
256-bit AES,FIPS 140-2,HTTPS,SNMP,SSH |
| Access Control List (ACL) |
Y |
| Web-based management |
Y |
| Reset button |
Y |
| On/off switch |
Y |
| Built-in BitTorrent client |
Y |
| Built-in iTunes server |
Y |
| Built-in FTP server |
Y |
| Browser supported |
Apple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox |
| System log |
Y |
| Hot spare |
Y |
| S.M.A.R.T. support |
Y |
| Share folder |
512 |
| Share folder access right management |
Y |
| Universal Plug and Play (UPnP) |
Y |
| Design |
| Chassis type |
Rack (2U) |
| Product colour |
Aluminium,Black |
| LED indicators |
HDD,LAN,Power,Status,USB |
| Software |
| Operating system installed |
QNAP Turbo System |
| Operating system version |
4.3.4 |
| Windows operating systems supported |
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 |
| Linux operating systems supported |
Y |
| Mac operating systems supported |
Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
| Server operating systems supported |
Windows Server 2003,Windows Server 2008,Windows Server 2008 R2,Windows Server 2012 R2,Windows Server 2016 |
