Stock Status: 1x unit in stock
Functionality you need for presentations and digital signage

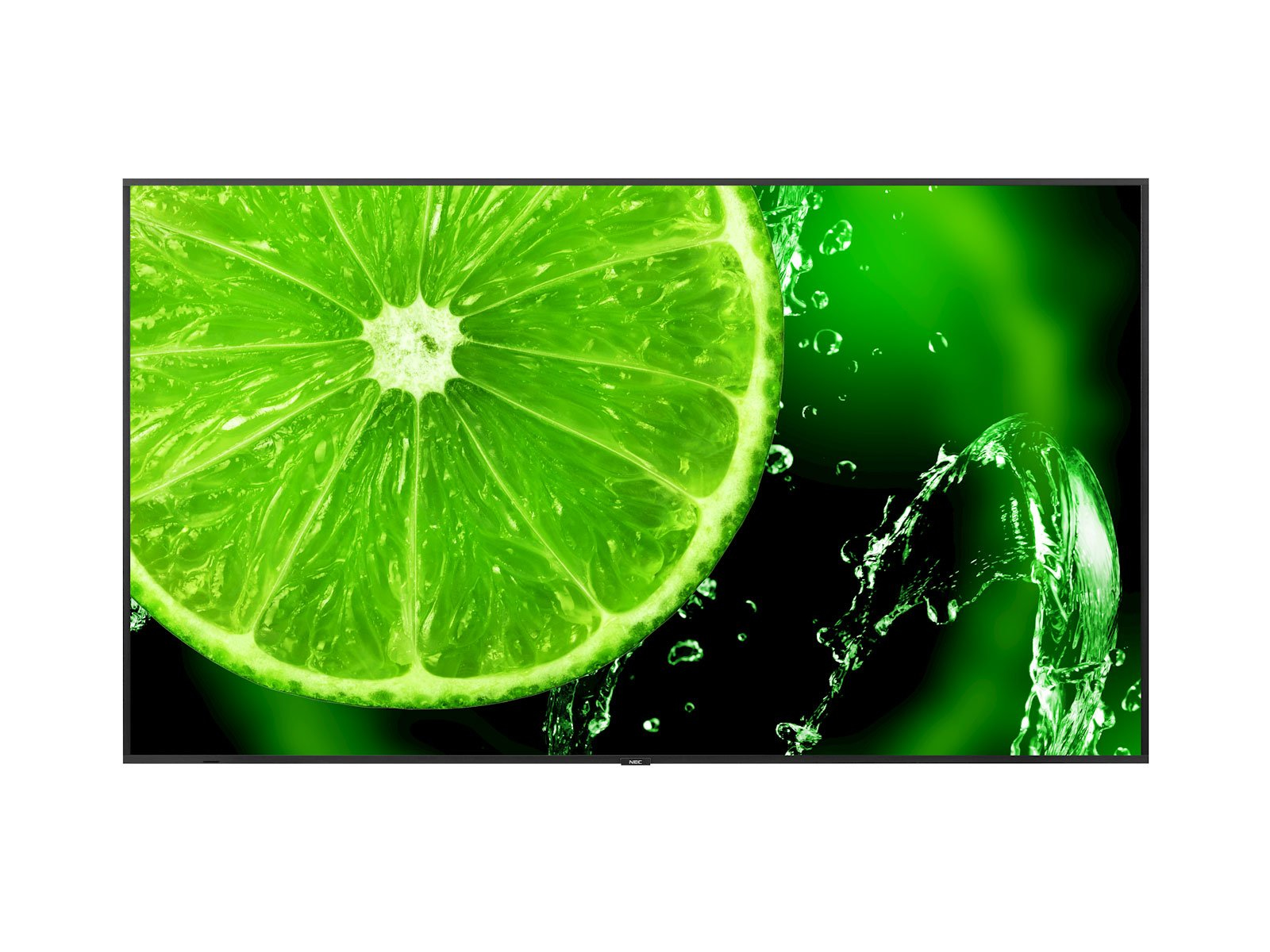

Designed for the rigours of commercial usage, yet at an impressively low total cost of ownership, with 18/7 operating hours the 86-inch MultiSync® E868 Large Format Display delivers the functionality and reliability you need for large meeting rooms and digital signage. The robust metal chassis which naturally dissipates heat is safeguarding long life performance, fire safety and sustainable waste management.
A professional haze level (Pro 28) supports excellent visibility without distracting reflections; combined with brightness of up to 400 cd/m², the E868 meets the demands of today’s meeting room environments. Presenters can feel confident, benefiting from instant meeting start-up, thanks to auto input detection and easy switching between HDMI sources.
An integrated MediaPlayer supports native UHD resolution and High Dynamic Range (HDR) for deep contrasts and natural looking content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution.
Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NEC NaViSet Administrator 2 functionality making this display the perfect choice for corporate meeting rooms and entry level digital signage.
Specs
| Weight & dimensions |
| Display width |
1927.6 mm |
| Display depth |
83.2 mm |
| Display height |
1099.1 mm |
| Display weight |
46 kg |
| Display |
| Display diagonal |
2.17 m (85.6") |
| Display technology |
LED |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
350 cd/m² |
| HD type |
4K Ultra HD |
| Panel type |
IPS |
| LED backlighting type |
Direct-LED |
| Native aspect ratio |
16:9 |
| Response time |
8 ms |
| Contrast ratio (typical) |
8000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
1.073 billion colours |
| Pixel pitch |
0.49 x 0.49 mm |
| Active display area (W x H) |
1895.04 x 1065.96 mm |
| Display diagonal (metric) |
217.43 cm |
| Horizontal scan range |
15 - 136 kHz |
| Vertical scan range |
24 - 75 Hz |
| High Dynamic Range (HDR) supported |
Yes |
| High Dynamic Range (HDR) technology |
Hybrid Log-Gamma (HLG) |
| Native refresh rate |
60 Hz |
| Haze rate |
25% |
| Audio |
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
2 |
| RMS rated power |
20 W |
| Power |
| Power consumption (typical) |
250 W |
| Power consumption (standby) |
2 W |
| Energy efficiency class (SDR) |
G |
| Energy efficiency class (HDR) |
G |
| Energy consumption (SDR) per 1000 hours |
176 kWh |
| Energy consumption (HDR) per 1000 hours |
161 kWh |
| AC input voltage |
100-240 V |
| AC input frequency |
50 - 60 Hz |
| Ports & interfaces |
| HDMI ports quantity |
3 |
| DVI port |
No |
| DisplayPorts quantity |
0 |
| USB port |
Yes |
| Ethernet LAN |
Yes |
| HDMI input ports quantity |
3 |
| VGA (D-Sub) input ports |
1 |
| USB ports quantity |
2 |
| USB version |
2.0 |
| USB connector type |
USB Type-A, USB Type-C |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100 Mbit/s |
| PC Audio in |
Yes |
| RS-232C |
Yes |
| Digital audio optical out |
1 |
| PC Audio out |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
3000 - 12192 m |
| Other features |
| Manual |
Yes |
| Screws included |
Yes |
| Tuner type |
SB-11TM |
| Digital tuner |
Yes |
| Dimensions (W x D x H) with stand |
1587 x 956.8 x 606 mm |
| Design |
| Product design |
Digital signage flat panel |
| Product colour |
Black |
| Placement supported |
Indoor |
| VESA mounting |
Yes |
| Orientation |
Horizontal/Vertical |
| Panel mounting interface |
600 x 400 mm |
| Bezel width (bottom) |
1.48 cm |
| Bezel width (side) |
1.43 cm |
| Bezel width (top) |
1.43 cm |
| Performance |
| Ambient light sensor |
Yes |
| Operating hours (hours/days) |
18/7 |
| Technical details |
| Sustainability certificates |
ENERGY STAR |
| Packaging content |
| Remote control included |
Yes |
| Batteries included |
Yes |
| Cables included |
AC, HDMI |
Features
NEC MultiSync E868. Product design: Digital signage flat panel. Display diagonal: 2.17 m (85.6"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 350 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 18/7. Product colour: Black
Product Description
Functionality you need for presentations and digital signage
Designed for the rigours of commercial usage, yet at an impressively low total cost of ownership, with 18/7 operating hours the 86-inch MultiSync® E868 Large Format Display delivers the functionality and reliability you need for large meeting rooms and digital signage. The robust metal chassis which naturally dissipates heat is safeguarding long life performance, fire safety and sustainable waste management.
A professional haze level (Pro 28) supports excellent visibility without distracting reflections; combined with brightness of up to 400 cd/m², the E868 meets the demands of today’s meeting room environments. Presenters can feel confident, benefiting from instant meeting start-up, thanks to auto input detection and easy switching between HDMI sources.
An integrated MediaPlayer supports native UHD resolution and High Dynamic Range (HDR) for deep contrasts and natural looking content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution.
Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NEC NaViSet Administrator 2 functionality making this display the perfect choice for corporate meeting rooms and entry level digital signage.
