Stock Status: 1x unit in stock

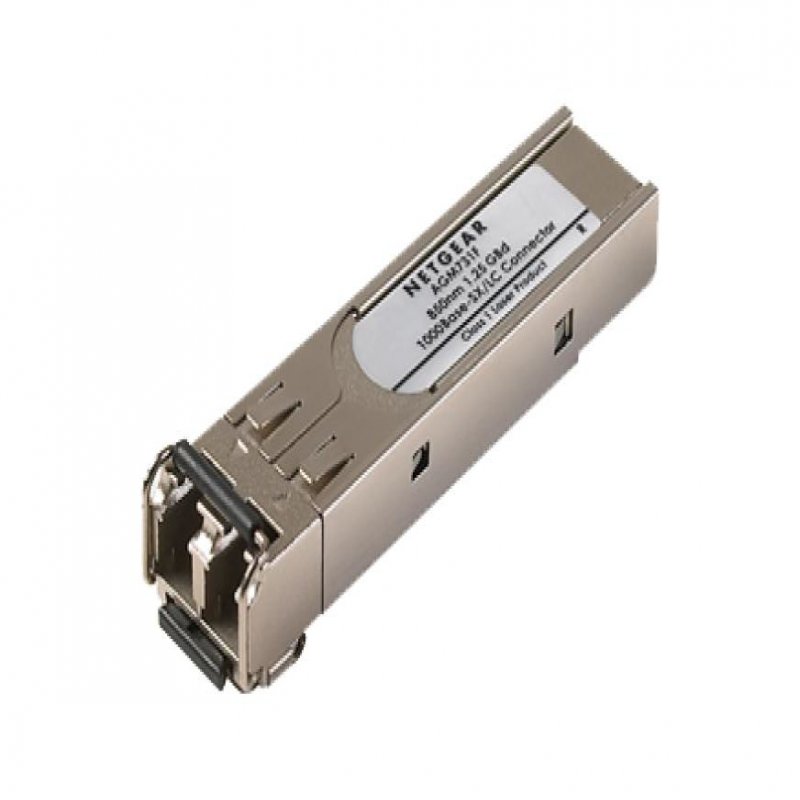

The ProSAFE GBIC Module is a LC duplex connector and meets SFP GBIC standard for use with any SFP GBIC compliant slot.
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
| Width |
57 mm |
| Depth |
13.8 mm |
| Height |
8.5 mm |
| Power |
| Input voltage |
3.3 V |
| Power consumption (typical) |
0.5 W |
| Performance |
| SFP transceiver type |
Fiber optic |
| Maximum data transfer rate |
1250 Mbit/s |
| Interface type |
SFP |
| Multi-mode fiber (MMF) supported |
Yes |
| Fiber optic connector |
LC |
| Fiber cable diameters supported (core/cladding) |
50/125,62.5/125 µm |
| SFP transceiver standard |
SX |
| Maximum transfer distance |
1000 m |
| Wavelength |
850 nm |
| Ethernet LAN |
Yes |
| Networking standards |
IEEE 802.3z |
| Fiber ethernet cabling technology |
1000BASE |
| Duplex system |
Full |
| Features |
| Product colour |
Silver |
| Housing material |
Metal |
| Mean time between failures (MTBF) |
87658 h |
| Logistics data |
| Harmonized System (HS) code |
85369010 |
| Certification |
| Compliance certificates |
CE, RoHS |
| Safety |
UL 1950, CSA 22.2 No.60 950 |
| Packaging content |
| Quantity per pack |
1 pc(s) |
Features
NETGEAR SFP 1G Ethernet Fiber Module for Managed Switches. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Silver, Housing material: Metal, Mean time between failures (MTBF): 87658 h. Input voltage: 3.3 V, Power consumption (typical): 0.5 W. Compliance certificates: CE, RoHS, Safety: UL 1950, CSA 22.2 No.60 950. Width: 57 mm, Depth: 13.8 mm, Height: 8.5 mm
Product Description
The ProSAFE GBIC Module is a LC duplex connector and meets SFP GBIC standard for use with any SFP GBIC compliant slot.
