Stock Status: 1x unit in stock

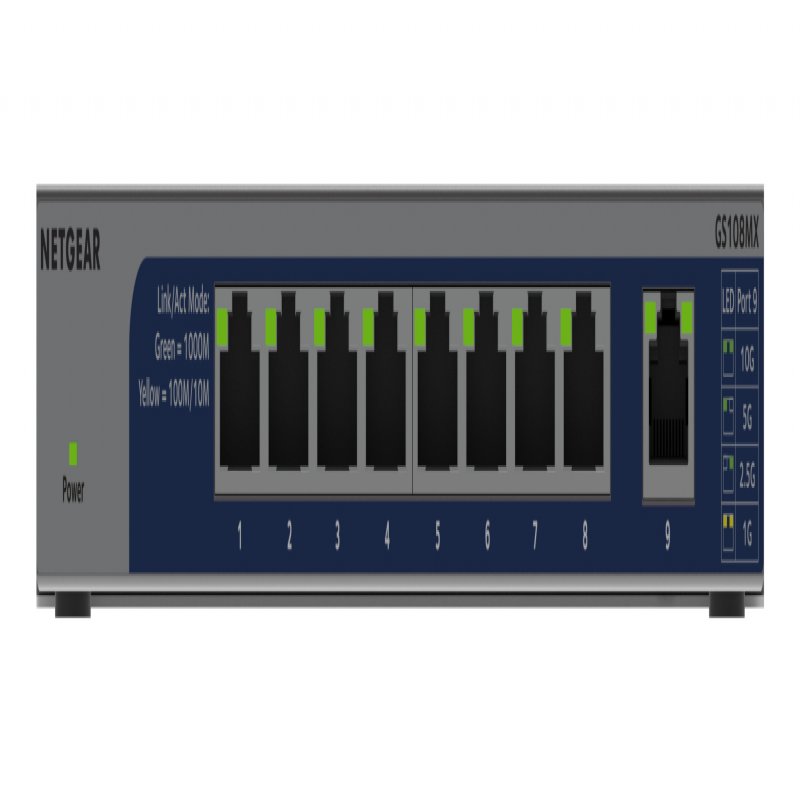

The NETGEAR 8-port Gigabit Unmanaged Switches, GS108X and GS108MX, help businesses cost-effectively connect their network with powerful gigabit speeds.
The GS108MX features one 10G/Multi-Gig Ethernet port for non-blocking uplink while the GS108X features a 10G SFP+ port for non-blocking uplink over longer distances.
Both switches come with eight 1G Ethernet ports housed in a fanless metal case that can be placed on a desk or mounted on a wall. These switches are energy efficient, built to last, and rigorously tested to provide the reliability businesses need.
- PLUG-AND-PLAY
Simple set up with no software to install or configuration needed
- FULL PERFORMANCE
Non-blocking switching architecture for maximum throughput at wire speed
- SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
- ENERGY EFFICIENT
Designed to optimize power usage lowering its cost to operate
- METAL CASE
Durable and rugged case for long-lasting performance
- VERSATILE MOUNTING OPTIONS
Supports desktop and wall placement with included wall-mount kit
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Gigabit Ethernet (copper) ports quantity |
8 |
| 10G Ethernet (copper) ports quantity |
1 |
| Power connector |
DC-in jack |
| Networking |
| Networking standards |
IEEE 802.1p, IEEE 802.3az |
| 10G support |
Yes |
| Full duplex |
Yes |
| Flow control support |
Yes |
| VLAN support |
No |
| Number of VLANs |
0 |
| Power |
| Power source |
DC |
| Power supply included |
Yes |
| DC input voltage |
12 V |
| Input current |
1.5 A |
| Power consumption (max) |
5.8 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Operating altitude |
0 - 3000 m |
| Heat dissipation |
19.91 BTU/h |
| Weight & dimensions |
| Width |
235 mm |
| Depth |
100.8 mm |
| Height |
27 mm |
| Weight |
575 g |
| Security |
| MAC address filtering |
Yes |
| Queue scheduling algorithms |
Priority queuing (PQ), Weighted Round Robin (WRR) |
| Data transmission |
| MAC address table |
16000 entries |
| Switching capacity |
36 Gbit/s |
| Forwarding rate |
41.664 Mpps |
| Latency (10-100 Mbps) |
5 µs |
| Latency (1 Gbps) |
2 µs |
| Latency (10 Gbps) |
2 µs |
| Number of queues |
8 |
| Jumbo frames support |
Yes |
| Jumbo frames |
9728 |
| Packet buffer memory |
0.768 MB |
| Management features |
| Switch type |
Unmanaged |
| Switch layer |
L2 |
| Design |
| Rack mounting |
Yes |
| Form factor |
Desktop/Wall-Mounting |
| Housing material |
Metal |
| LED indicators |
Activity, Link, Power, Speed |
| Number of fans |
0 fan(s) |
| Electromagnetic compatibility |
Class B |
| Performance |
| Mean time between failures (MTBF) |
3514690 h |
| Multicast features |
| Multicast MAC address table |
16000 entries |
| Certification |
| Compliance certificates |
BSMI, CE, Federal Communications Commission (FCC), ICES, KC, RCM, UKCA, VCCI |
| Packaging content |
| User guide |
Yes |
| Rack mount kit |
Yes |
Features
NETGEAR GS108MX-100EUS. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Full duplex. MAC address table: 16000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3az. DC input voltage: 12 V. Power connector: DC-in jack. Rack mounting, Form factor: Desktop/Wall-Mounting
Product Description
The NETGEAR 8-port Gigabit Unmanaged Switches, GS108X and GS108MX, help businesses cost-effectively connect their network with powerful gigabit speeds.
The GS108MX features one 10G/Multi-Gig Ethernet port for non-blocking uplink while the GS108X features a 10G SFP+ port for non-blocking uplink over longer distances.
Both switches come with eight 1G Ethernet ports housed in a fanless metal case that can be placed on a desk or mounted on a wall. These switches are energy efficient, built to last, and rigorously tested to provide the reliability businesses need.
- PLUG-AND-PLAY
Simple set up with no software to install or configuration needed
- FULL PERFORMANCE
Non-blocking switching architecture for maximum throughput at wire speed
- SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
- ENERGY EFFICIENT
Designed to optimize power usage lowering its cost to operate
- METAL CASE
Durable and rugged case for long-lasting performance
- VERSATILE MOUNTING OPTIONS
Supports desktop and wall placement with included wall-mount kit
