Stock Status: 1x unit in stock

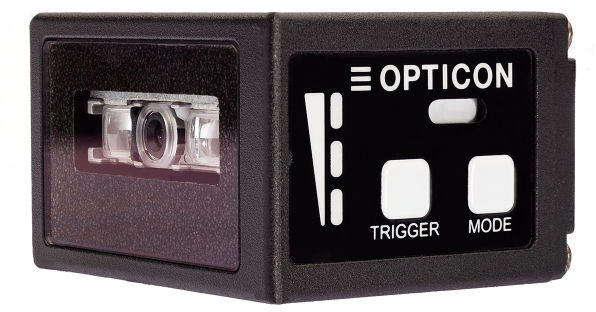

The NLV-5201 is our latest development in the NLV series. This small 2D Imager is easily integrated and scans at a fast speed. The fix position scanner is perfect for the most demanding applications and the scanner is also very resistant with an IP65 rating.
Applications
This fixed mount scanner is ideal in situations that require 2D scanning at a fast speed. Stationary scanners are the easiest way to integrate a scanner component into your product or business application. The NLV-5201 performs excellent with moving objects, curved, wide, poorly printed and damaged barcodes.
How we describe the NLV-5201
The NLV-5201 is our latest development in the NLV series. This small 2D CMOS imager is easily integrated and scans at a fast rate no matter the density you require. The NLV-5201 comes in a standard range, high density and ultra high density version to fit your needs. The fixed position scanner is perfect for the most demanding applications and the scanner is also very resistant with an IP65 rating. The installed tuning function helps to easily program your settings by simply pressing the key. The 3-colors LED is a convenient assistant in this process.
- 100 frames per second
- Custom configuration capabilities
- Improved scanning of curved, wide, poorly printed and damaged barcodes
- Exceptional motion tolerance for moving applications
- Green bar LED aim function providing laser-free aiming
- Rugged; IP65
Specs
| Weight & dimensions |
| Weight |
125 g |
| Width |
41.1 mm |
| Depth |
33 mm |
| Height |
24 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
20 - 85% |
| Storage relative humidity (H-H) |
20 - 90% |
| Power |
| Power source type |
DC |
| Input voltage |
5 V |
| Power consumption |
265 mA |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Standard interfaces |
RS-232,USB |
| Cable length |
1.5 m |
| Scanning |
| Type |
Fixed bar code reader |
| Scanner type |
2D |
| Sensor type |
CMOS |
| Linear (1D) barcodes supported |
Codabar,Code 128,Code 39,Code 93,GS1-128 (UCC/EAN-128),Industrial 2 of 5,Interleaved 2 of 5,JAN,Plessey,Telepen,Trioptic,U.P.C. |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Codablock, Data Matrix, MaxiCode, Micro QR Code, PDF417, QR Code |
| Optical sensor resolution (W x H) |
640 x 480 pixels |
| Read rate (max) |
100 reads/s |
| Tilt reading angle |
0 - 360° |
| Pitch reading angle |
-65 - 65° |
| Yaw reading angle |
-65 - 65° |
| Design |
| Product colour |
Black |
| Housing material |
Zinc |
| International Protection (IP) code |
IP65 |
| RoHS compliance |
Y |
| Certification |
CE, FCC B, VCCI B, IEC 62471, EN55032 B, EN55024 B |
| Performance |
| Buzzer |
Y |
| Product colour |
Black |
| Housing material |
Zinc |
| International Protection (IP) code |
IP65 |
| Certification |
CE, FCC B, VCCI B, IEC 62471, EN55032 B, EN55024 B |
| Technical details |
| Sustainability certificates |
RoHS |
Features
Opticon NLV-5201. Type: Fixed bar code reader, Scanner type: 2D, Sensor type: CMOS. Connectivity technology: Wired, Standard interfaces: RS-232,USB, Cable length: 1.5 m. Product colour: Black, Housing material: Zinc, International Protection (IP) code: IP65. Power source type: DC, Input voltage: 5 V, Power consumption: 265 mA. Weight: 125 g, Width: 41.1 mm, Depth: 33 mm
Product Description
The NLV-5201 is our latest development in the NLV series. This small 2D Imager is easily integrated and scans at a fast speed. The fix position scanner is perfect for the most demanding applications and the scanner is also very resistant with an IP65 rating.
Applications
This fixed mount scanner is ideal in situations that require 2D scanning at a fast speed. Stationary scanners are the easiest way to integrate a scanner component into your product or business application. The NLV-5201 performs excellent with moving objects, curved, wide, poorly printed and damaged barcodes.
How we describe the NLV-5201
The NLV-5201 is our latest development in the NLV series. This small 2D CMOS imager is easily integrated and scans at a fast rate no matter the density you require. The NLV-5201 comes in a standard range, high density and ultra high density version to fit your needs. The fixed position scanner is perfect for the most demanding applications and the scanner is also very resistant with an IP65 rating. The installed tuning function helps to easily program your settings by simply pressing the key. The 3-colors LED is a convenient assistant in this process.
- 100 frames per second
- Custom configuration capabilities
- Improved scanning of curved, wide, poorly printed and damaged barcodes
- Exceptional motion tolerance for moving applications
- Green bar LED aim function providing laser-free aiming
- Rugged; IP65
