Stock Status: 1x unit in stock

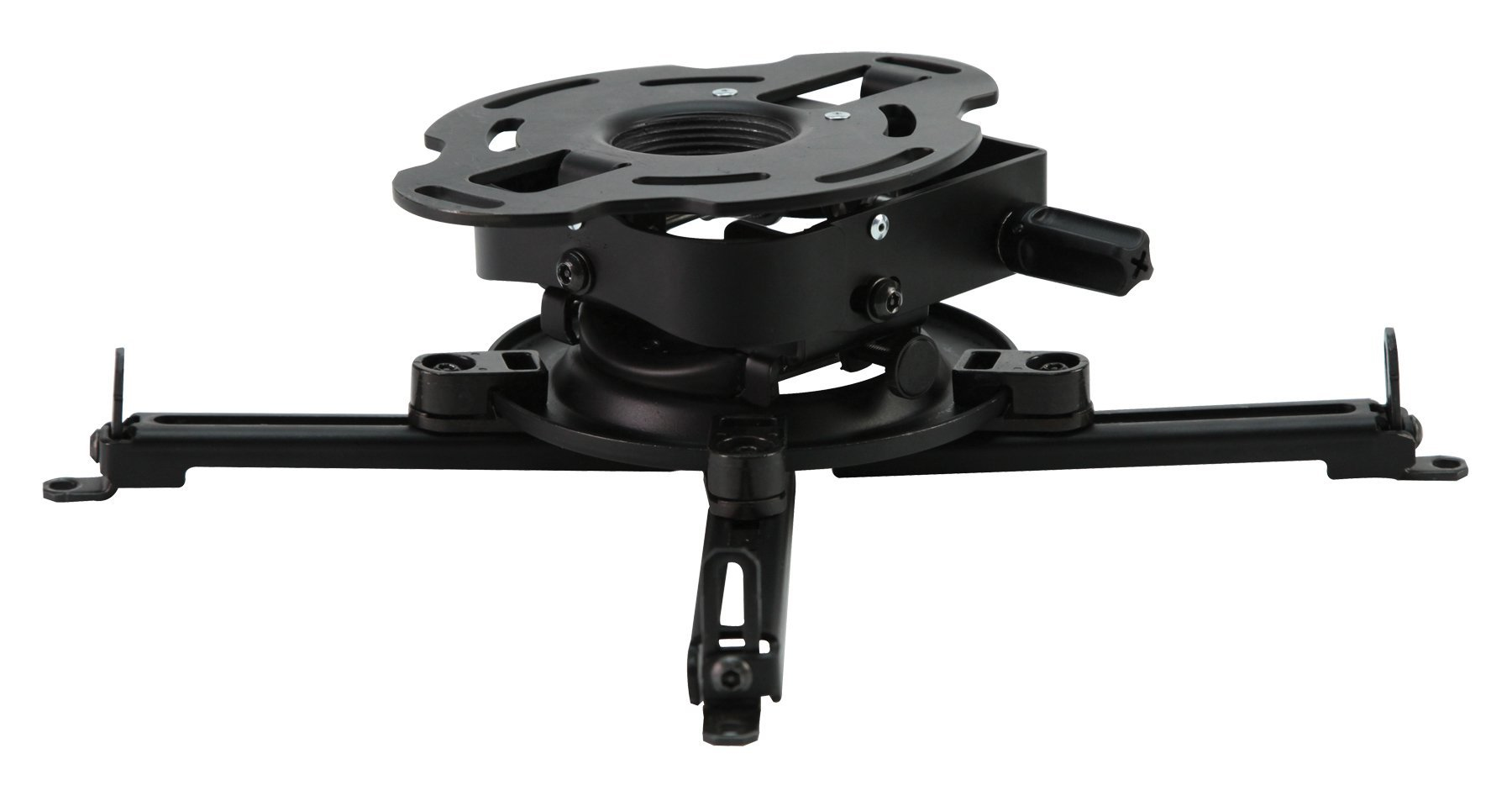

The PRGS Projector Mount simplifies the way image alignment is done. The precision gear design allows exact pitch and roll image positioning by either simply turning two adjustment knobs with a Phillips screw driver, or using the tool-less option by extending the knobs to adjust by hand. Just set the precision gear to the desired position to secure it in place. It will hold its position even during projector maintenance. With Peerless-AV® PRGS Projector Mount, just set it and forget it. No more adjustment screws. No more micro adjustments. No more hassles.
Specs
| Weight & dimensions |
| Width |
216 mm |
| Height |
92 mm |
| Depth |
448 mm |
| Maximum device height |
44.8 cm |
| Maximum device width |
11.8 cm |
| Depth (min) |
21.6 cm |
| Depth (max) |
44.8 cm |
| Weight |
1.9 kg |
| Package width |
362 mm |
| Package depth |
76 mm |
| Package height |
171 mm |
| Package weight |
2 kg |
| Packaging content |
| Manual |
Yes |
| Mounting kit |
Yes |
| Performance |
| Mounting type |
Ceiling |
| Maximum weight capacity |
22 kg |
| Product colour |
Black |
| Adjustable arm |
Yes |
| Swivel angle |
360° |
| Angle of rotation |
10° |
| Tilt angle range |
-20 - 15° |
| Easy to install |
Yes |
| Ceiling mounting tube length (max) |
118 cm |
| Ceiling mounting tube length (min) |
92 cm |
| Safety lock |
Yes |
| Logistics data |
| Harmonized System (HS) code |
83024190 |
Features
Peerless PRGS-UNV. Mounting type: Ceiling, Maximum weight capacity: 22 kg, Product colour: Black. Width: 216 mm, Height: 92 mm, Depth: 448 mm
Product Description
The PRGS Projector Mount simplifies the way image alignment is done. The precision gear design allows exact pitch and roll image positioning by either simply turning two adjustment knobs with a Phillips screw driver, or using the tool-less option by extending the knobs to adjust by hand. Just set the precision gear to the desired position to secure it in place. It will hold its position even during projector maintenance. With Peerless-AV® PRGS Projector Mount, just set it and forget it. No more adjustment screws. No more micro adjustments. No more hassles.
