Stock Status: 1x unit in stock
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Specs
| Weight & dimensions |
| Width |
56 mm |
| Depth |
43 mm |
| Height |
1626 mm |
| Weight |
6.18 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-15 - 65 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Power |
| Nominal input voltage |
230 V |
| Maximum current |
32 A |
| AC input frequency |
50 - 60 Hz |
| Nominal output voltage |
230 V |
| Power protection features |
Overload |
| Ports & interfaces |
| AC outlets quantity |
26 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
IEC309 |
| Design |
| PDU types |
Basic |
| Mounting |
Vertical |
| Product colour |
Black |
| Features |
| Cable length |
3.05 m |
| Packaging data |
| Package weight |
8 kg |
| Package width |
226 mm |
| Package depth |
135 mm |
| Package height |
1875 mm |
| Certification |
| Compliance certificates |
RoHS |
| Certification |
CE, EAC, IRAM, VDE, REACH |
Features

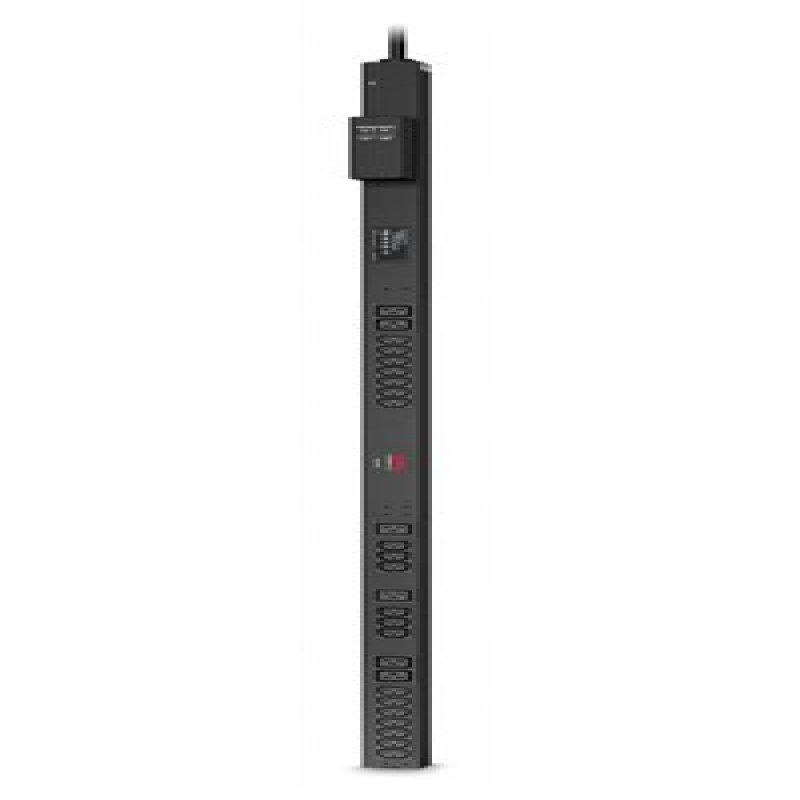

APC AP6009A. PDU types: Basic, Mounting: Vertical, Product colour: Black. AC outlets quantity: 26 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 3.05 m. Nominal input voltage: 230 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz. Compliance certificates: RoHS, Certification: CE, EAC, IRAM, VDE, REACH
Product Description
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
