Stock Status: 1x unit in stock
High Brightness, Low Cost

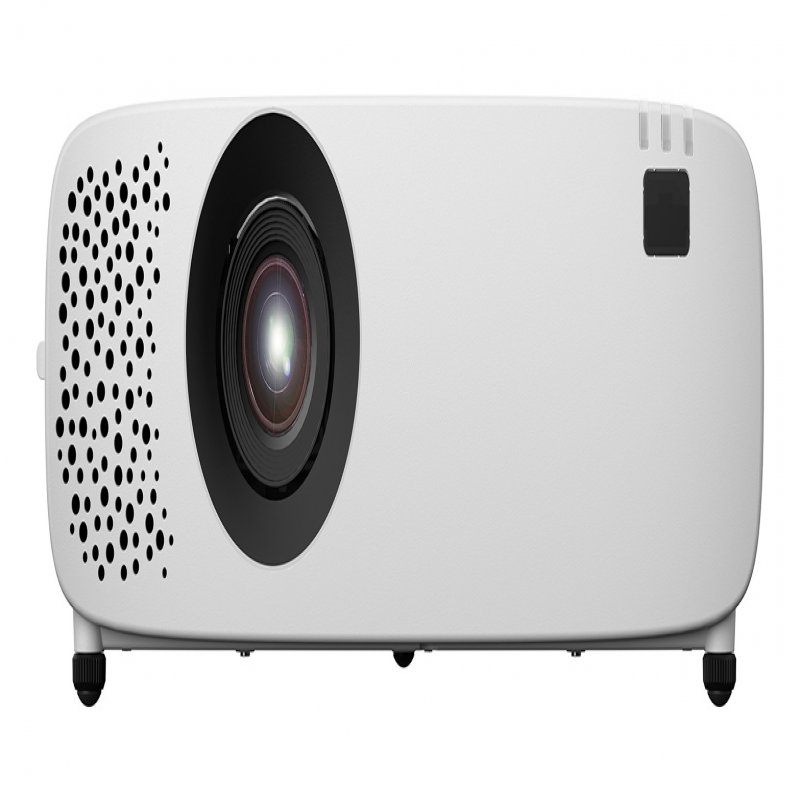

For outstanding projection performance at an impressively low total cost of ownership, the Sharp E501U appeals to cost-conscious users who demand professional reliability. Delivering 5,000 lumens of brightness and the vivid colour reproduction of 3LCD technology, this compact WUXGA laser projector packs a powerful punch while weighing just 5kg.
Designed for versatility, the E501U offers flexible installation options and a long operational life, making it a natural fit for classrooms, training facilities, and meeting rooms. Combining high performance, low maintenance, and exceptional value, it’s the smart choice for any budget-aware installation.
Specs
| Weight & dimensions |
| Weight |
5 kg |
| Width |
390 mm |
| Depth |
128 mm |
| Height |
294 mm |
| Operational conditions |
| Operating temperature (T-T) |
5 - 45 °C |
| Storage temperature (T-T) |
-10 - 50 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
20 - 80% |
| Projector |
| Projector brightness |
5000 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
WUXGA (1920x1200) |
| Contrast ratio (typical) |
5000000:1 |
| Native aspect ratio |
16:10 |
| Screen size compatibility |
762 - 7620 mm (30 - 300") |
| Supported aspect ratios |
16:10 |
| Projection distance |
0.85 - 11 m |
| Video |
| Analog signal format system |
NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Full HD |
Yes |
| Lens system |
| Focus |
Manual |
| Focal length range |
19.16 - 23.02 mm |
| Aperture range (F-F) |
1.6 - 1.76 |
| Zoom capability |
Yes |
| Zoom ratio |
1.2:1 |
| Power |
| Power source |
AC |
| Power consumption (typical) |
310 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (economy mode) |
155 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Ports & interfaces |
| HDMI ports quantity |
2 |
| Audio (L/R) in |
1 |
| Serial interface type |
RS-232 |
| USB 2.0 Type-A ports quantity |
1 |
| USB 2.0 Type-B ports quantity |
1 |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Packaging content |
| Remote control included |
Yes |
| Design |
| Product colour |
White |
| Multimedia |
| Built-in speaker(s) |
Yes |
| RMS rated power |
1.6 W |
| Number of built-in speakers |
1 |
| Light source |
| Light source type |
Laser |
| Service life of light source |
20000 h |
Features
Sharp E501U. Projector brightness: 5000 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 20000 h. Focus: Manual, Focal length range: 19.16 - 23.02 mm, Aperture range (F-F): 1.6 - 1.76. Analog signal format system: NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM. Serial interface type: RS-232
Product Description
High Brightness, Low Cost
For outstanding projection performance at an impressively low total cost of ownership, the Sharp E501U appeals to cost-conscious users who demand professional reliability. Delivering 5,000 lumens of brightness and the vivid colour reproduction of 3LCD technology, this compact WUXGA laser projector packs a powerful punch while weighing just 5kg.
Designed for versatility, the E501U offers flexible installation options and a long operational life, making it a natural fit for classrooms, training facilities, and meeting rooms. Combining high performance, low maintenance, and exceptional value, it’s the smart choice for any budget-aware installation.
