Stock Status: 1x unit in stock
Versatile, Value-driven Performance

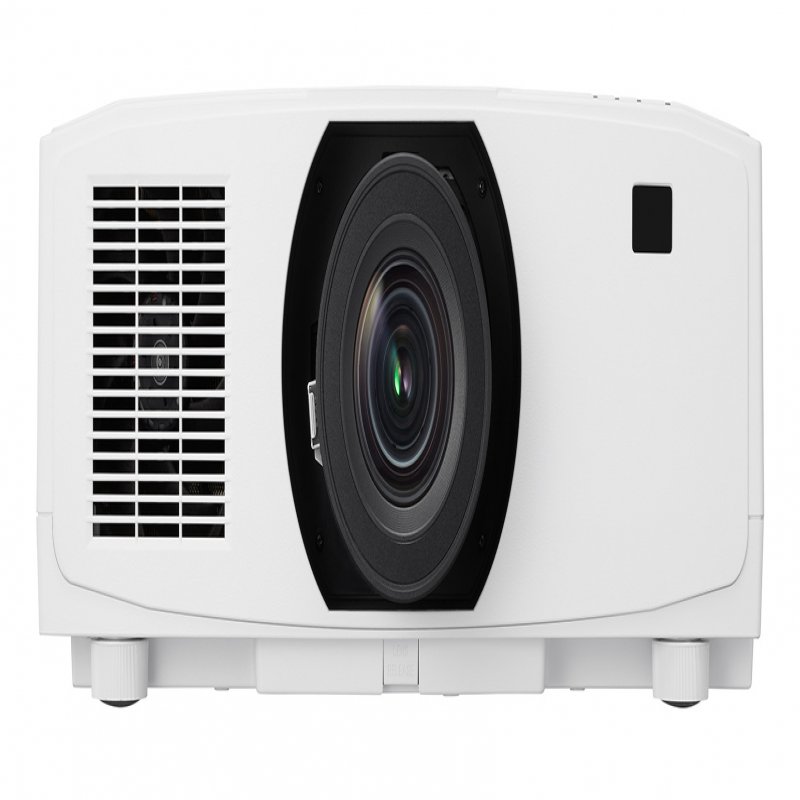

A highly economical projection solution, the Sharp V Series combines installation flexibility, low maintenance, and long-life laser performance in a compact, cost-efficient design. Using 3LCD technology, it delivers vivid colour and precise white point calibration with 12-bit colour processing for rich saturation and contrast making it suited for education, corporate, leisure, and simulation environments.
Compatible with existing mounts and lenses, the V Series provides a seamless upgrade path from lamp-based or earlier laser models, maximising assets and reducing costs while embracing next-generation efficiencies.
Sharp's ProAssist software enables easy remote setup and adjustment, while advanced features such as geometric correction, edge blending, and wide lens shift support flexible, precise integration.
Specs
| Weight & dimensions |
| Weight |
11.2 kg |
| Width |
499 mm |
| Depth |
407 mm |
| Height |
164 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 50 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
20 - 80% |
| Projector |
| Projector brightness |
7300 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
WUXGA (1920x1200) |
| Contrast ratio (typical) |
3000000:1 |
| Native aspect ratio |
16:10 |
| Smart projector |
Yes |
| Screen size compatibility |
1016 - 12700 mm (40 - 500") |
| Supported aspect ratios |
16:10 |
| Projection distance |
0.7 - 50.9 m |
| Horizontal scan range |
24 - 153 kHz |
| Vertical scan range |
50 - 120 Hz |
| Keystone correction, horizontal |
30° |
| Keystone correction, vertical |
30° |
| Video |
| Full HD |
Yes |
| 3D |
Yes |
| Supported graphics resolutions |
1280 x 768, 1920 x 1200 (WUXGA), 3840 x 2160 |
| Supported video modes |
480p, 576p, 720p, 1080i, 1080p |
| Video colour modes |
DICOM simulation mode |
| Display |
| Built-in display |
No |
| Lens system |
| Focus |
Motorized |
| Zoom capability |
Yes |
| Zoom type |
Auto/Manual |
| Horizontal lens shift range |
0 - 20% |
| Vertical lens shift range |
0 - 50% |
| Power |
| Power source |
AC |
| Power consumption (typical) |
434 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (economy mode) |
403 W |
| AC input voltage |
100-240 V |
| AC input frequency |
50-60 Hz |
| Ports & interfaces |
| HDMI ports quantity |
2 |
| Audio (L/R) in |
1 |
| Serial interface type |
RS-232 |
| HDBaseT port |
Yes |
| USB 2.0 Type-A ports quantity |
1 |
| Audio (L/R) out |
1 |
| DC-in jack |
Yes |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Packaging content |
| Remote control included |
Yes |
| Remote control type |
IR |
| Cables included |
Power |
| Manual |
Yes |
| Mounting brackets included |
Yes |
| Design |
| Product type |
Standard throw projector |
| Product colour |
White |
| Housing material |
Plastic |
| Technical details |
| Sustainability certificates |
ErP |
| Warranty period |
3 year(s) |
| Compliance certificates |
CE, EAC, RoHS |
| Features |
| Noise level |
40 dB |
| Noise level (economic mode) |
31 dB |
| HDCP |
Yes |
| Test patterns |
Yes |
| Sleep timer |
Yes |
| Standby timer |
Yes |
| Air filter |
Yes |
| Password protection |
Yes |
| Light source |
| Light source type |
Laser |
| Service life of light source |
20000 h |
| Logistics data |
| Quantity per pack |
1 pc(s) |
Features
Sharp V731U. Projector brightness: 7300 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 20000 h. Focus: Motorized, Zoom type: Auto/Manual, Horizontal lens shift range: 0 - 20%. Supported graphics resolutions: 1280 x 768, 1920 x 1200 (WUXGA), 3840 x 2160, Supported video modes: 480p, 576p, 720p, 1080i, 1080p, Video colour modes: DICOM simulation mode. Serial interface type: RS-232
Product Description
Versatile, Value-driven Performance
A highly economical projection solution, the Sharp V Series combines installation flexibility, low maintenance, and long-life laser performance in a compact, cost-efficient design. Using 3LCD technology, it delivers vivid colour and precise white point calibration with 12-bit colour processing for rich saturation and contrast making it suited for education, corporate, leisure, and simulation environments.
Compatible with existing mounts and lenses, the V Series provides a seamless upgrade path from lamp-based or earlier laser models, maximising assets and reducing costs while embracing next-generation efficiencies.
Sharp's ProAssist software enables easy remote setup and adjustment, while advanced features such as geometric correction, edge blending, and wide lens shift support flexible, precise integration.
