Stock Status: 1x unit in stock
Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort™-equipped laptop and monitor

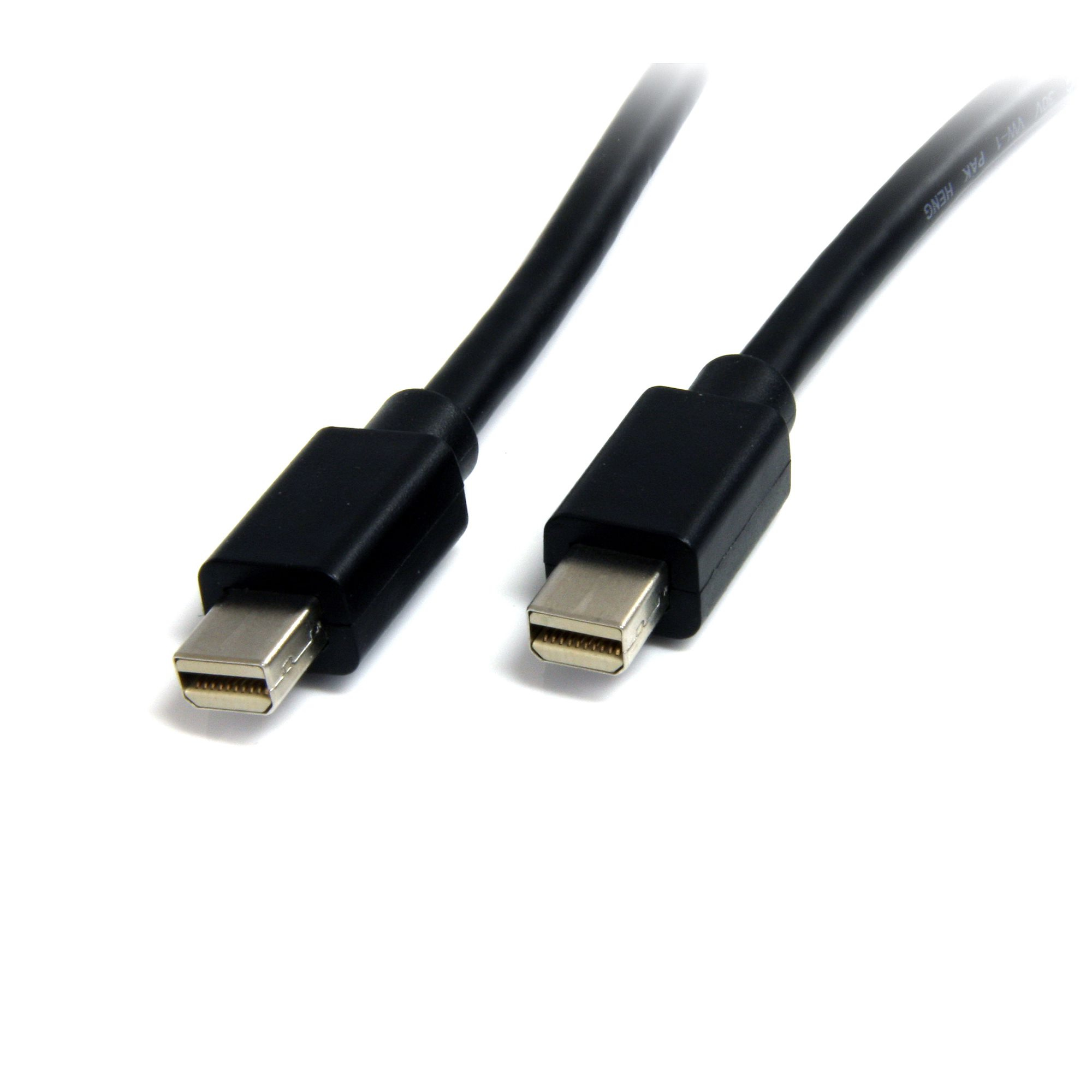

The MDISP1M 1m Mini DisplayPort™ 1.2 cable features 2 Mini DP male connectors, and offers a dependable solution for connecting any Mini DisplayPort-enabled laptop (including Mac® family of products) to a Mini DisplayPort-equipped monitor.
The mDP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDISP1M is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Please note : Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DisplayPort Cables can be connected to the Thunderbolt ports, enabling you to connect your Mini DP compatible displays.
The StarTech.com Advantage
Specs
| Features |
| Cable length |
1 m |
| Connector 1 |
Mini DisplayPort |
| Connector 2 |
Mini DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Maximum resolution |
3840 x 2400 pixels |
| Product colour |
Black |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Connector contacts plating |
Nickel |
| DisplayPort version |
1.2 |
| Supported graphics resolutions |
2560 x 1600 (WQXGA), 3840 x 2400 |
| Supported video modes |
720p, 1080p, 2160p |
| Maximum refresh rate |
60 Hz |
| HDCP |
Yes |
| DisplayPort Content Protection (DPCP) |
Yes |
| Cable rating |
CMG (CM) |
| Cable shielding |
Aluminum mylar foil |
| Jacket material |
Polyvinyl chloride (PVC) |
| AWG wire size |
32 |
| Bandwidth |
21600 MB/s |
| Plug and Play |
Yes |
| Multi-Stream Transport (MST) |
Yes |
| Number of conductors |
19 |
| Technical details |
| Compliance certificates |
CE, RoHS |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
| Master (outer) case width |
320 mm |
| Master (outer) case length |
500 mm |
| Master (outer) case height |
210 mm |
| Products per master (outer) case |
100 pc(s) |
| Packaging data |
| Weight |
39.9 g |
| Quantity per pack |
1 pc(s) |
| Package width |
200 mm |
| Package depth |
220 mm |
| Package height |
12 mm |
| Package weight |
40.3 g |
| Sustainability |
| Sustainability compliance |
Yes |
Features
StarTech.com 1m (3ft) Mini DisplayPort Cable - 4K x 2K Ultra HD Video - Mini DisplayPort 1.2 Cable - Mini DP to Mini DP Cable for Monitor - mDP Cord works with Thunderbolt 2 Ports - M/M. Cable length: 1 m, Connector 1: Mini DisplayPort, Connector 2: Mini DisplayPort. Weight: 39.9 g, Quantity per pack: 1 pc(s), Package width: 200 mm. Master (outer) case width: 320 mm, Master (outer) case length: 500 mm, Master (outer) case height: 210 mm
Product Description
Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort™-equipped laptop and monitor
The MDISP1M 1m Mini DisplayPort™ 1.2 cable features 2 Mini DP male connectors, and offers a dependable solution for connecting any Mini DisplayPort-enabled laptop (including Mac® family of products) to a Mini DisplayPort-equipped monitor.
The mDP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDISP1M is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Please note : Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DisplayPort Cables can be connected to the Thunderbolt ports, enabling you to connect your Mini DP compatible displays.
