Stock Status: 1x unit in stock

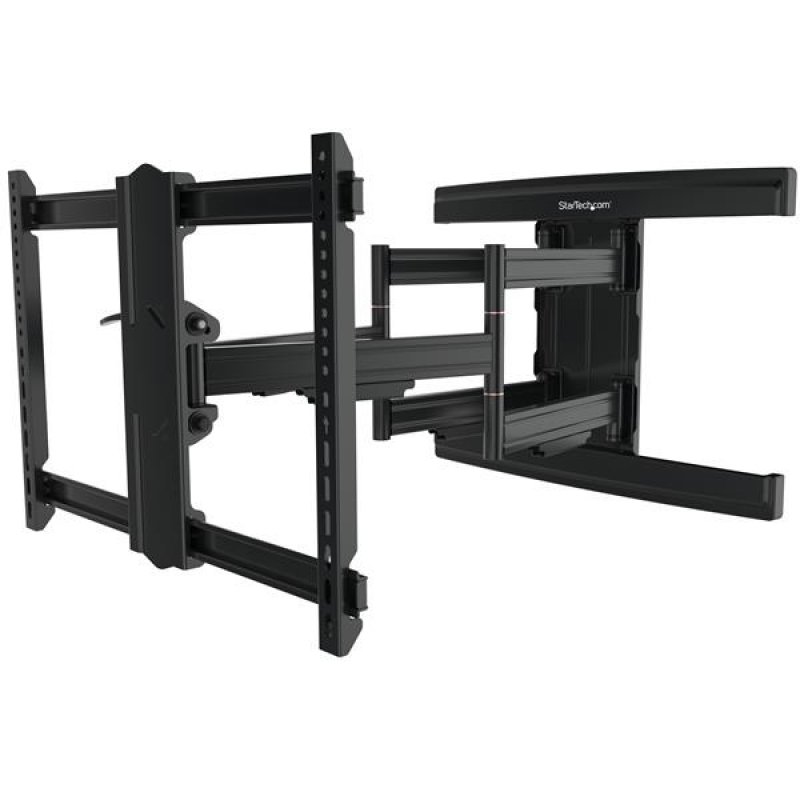

Heavy Duty TV Wall Mount | Steel | For up to 100" Displays
This swivel tv wall mount is ideal for a meeting space, lobby, boardroom, classroom or other venues. It provides an impressive and secure way to display a flat-panel TV or mount a digital signage display, while saving valuable space.
Robust Steel Construction
Engineered from high-grade steel, the heavy duty tv wall mount securely supports VESA compatible displays, including curved TVs, up to 100" with a weight capacity of 165 lb. (75 kg).
Full-Motion Adjustment
With a smooth and effortless motion, you can extend the articulating arm out from the wall up to 31.7" (805 mm). You can also retract the arm back to nest just 2.9" (75 mm) away from the wall.
Find the Right Viewing Angle
Swivel your screen +/- 90 degrees and tilt your screen -2 to +15 degrees for ideal viewing and to reduce glare. The TV wall mount bracket also has a screen level adjustment, so you can adjust your display up to 3 degrees clockwise or counterclockwise after it is installed.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
FPWARTS2 is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specs
| Weight & dimensions |
| Width |
800 mm |
| Depth (max) |
67 cm |
| Height |
487 mm |
| Weight |
16.8 kg |
| Packaging data |
| Package width |
925 mm |
| Package depth |
550 mm |
| Package height |
100 mm |
| Package weight |
18.8 kg |
| Mounting |
| Maximum weight capacity |
50 kg |
| Maximum screen size |
2.03 m (80") |
| Mounting type |
Wall |
| Minimum VESA mount |
200 x 100 mm |
| Maximum VESA mount |
600 x 400 mm |
| Minimum screen size |
94 cm (37") |
| Panel mounting interface |
200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400 |
| Number of displays supported |
1 |
| Ergonomics |
| Tilt adjustment |
Yes |
| Tilt angle range |
-15 - 2° |
| Swivel angle |
90° |
| Cable management |
Yes |
| Distance to the wall (max) |
65 cm |
| Distance to the wall (min) |
7 cm |
| Design |
| Product colour |
Black |
| Certification |
CE |
| Technical details |
| Compliance certificates |
RoHS |
| Packaging content |
| Decorative cover included |
Yes |
| Number of decorative covers included |
2 pc(s) |
| Anchors included |
Yes |
| Number of anchors included |
6 |
| Wrench included |
Yes |
| Washers included |
Yes |
| Number of washers included |
17 |
| Spacer included |
Yes |
| Number of spacers included |
16 |
| Screws included |
Yes |
| Number of screws |
33 |
| Manual |
Yes |
| Mounting kit |
Yes |
| Number of wrenches included |
1 |
| Hex key included |
Yes |
| Number of hex keys included |
1 |
| Logistics data |
| Master (outer) case width |
935 mm |
| Master (outer) case length |
565 mm |
| Master (outer) case height |
220 mm |
| Products per master (outer) case |
2 pc(s) |
| Harmonized System (HS) code |
85299097 |
Features
StarTech.com TV Wall Mount supports up to 100 inch VESA Displays - Low Profile Full Motion TV Wall Mount for Large Displays - Heavy Duty Adjustable Tilt/Swivel Articulating Arm Bracket. Maximum weight capacity: 50 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 2.03 m (80"), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -15 - 2°, Distance to the wall (min): 7 cm, Distance to the wall (max): 65 cm. Product colour: Black
Product Description
Heavy Duty TV Wall Mount | Steel | For up to 100" Displays
This swivel tv wall mount is ideal for a meeting space, lobby, boardroom, classroom or other venues. It provides an impressive and secure way to display a flat-panel TV or mount a digital signage display, while saving valuable space.
Robust Steel Construction
Engineered from high-grade steel, the heavy duty tv wall mount securely supports VESA compatible displays, including curved TVs, up to 100" with a weight capacity of 165 lb. (75 kg).
Full-Motion Adjustment
With a smooth and effortless motion, you can extend the articulating arm out from the wall up to 31.7" (805 mm). You can also retract the arm back to nest just 2.9" (75 mm) away from the wall.
Find the Right Viewing Angle
Swivel your screen +/- 90 degrees and tilt your screen -2 to +15 degrees for ideal viewing and to reduce glare. The TV wall mount bracket also has a screen level adjustment, so you can adjust your display up to 3 degrees clockwise or counterclockwise after it is installed.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
FPWARTS2 is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
