Stock Status: 1x unit in stock

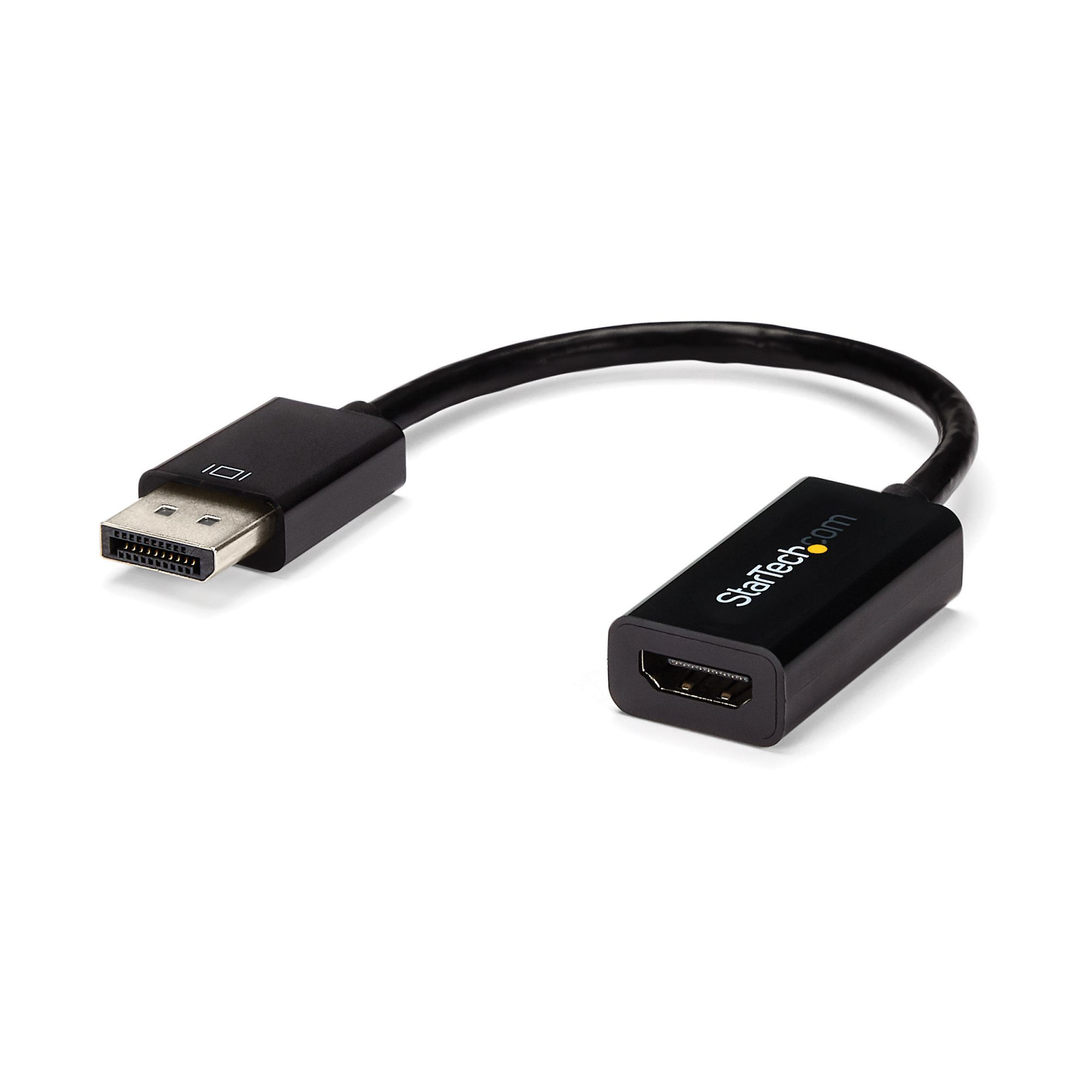

Connect an HDMI monitor to a DisplayPort video source
The DP2HD4KS DisplayPort to HDMI adapter enables you to connect a DisplayPort-equipped desktop or laptop computer, such as the HP EliteBook 8570p / 8470p, to an HDMI display. This adapter is compatible with DisplayPort 1.2 & HDMI 4K @ 30 Hz and as a result can support video resolutions up to Ultra HD (4K) as well as the accompanying digital audio up to 7.1 channel surround sound.
With support for resolutions up to Ultra HD (4K) the DP to HDMI adapter ensures you can convert DisplayPort to HDMI while maintaining an astonishing picture quality four times the resolution of high-definition 1080p. The adapter is also backward compatible with previous DisplayPort revisions 1.0/1.1 with support for resolutions up to 1080p.
For a hassle-free setup the DisplayPort to HDMI adapter allows for plug-and-play installation without any additional software or drivers. Plus, with a small footprint and lightweight design, the adapter maximizes portability.
To ensure compatibility with any DisplayPort output the DP adapter offers an active conversion. Active video conversion is required to maintain 4K resolutions when converting DisplayPort to HDMI. An active DP adapter is also ideal for outputting 1080p video resolutions by ensuring compatibility with graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).
The DP2HD4KS is backed by a 3-year StarTech.com warranty, and lifetime technical support.
The StarTech.com Advantage
- Prepare for the next generation of displays, with support for Ultra HD 4K video
- Maximize compatibility, with support for DisplayPort revisions 1.2/1.1/1.0
- Easy to carry as a laptop accessory, with a compact design and no external power adapter needed
Specs
| Ports & interfaces |
| Connector 1 |
DisplayPort 1.2 |
| Connector 2 |
HDMI 1.4 |
| Connector gender |
Male/Female |
| Cable length |
0.15 m |
| Packaging data |
| Package width |
125 mm |
| Package depth |
225 mm |
| Package height |
13 mm |
| Package weight |
27 g |
| Weight & dimensions |
| Weight |
55 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-10 - 80 °C |
| Performance |
| Maximum resolution |
4096 x 2048 pixels |
| Product colour |
Black |
| RoHS compliance |
Y |
| Design |
| Product colour |
Black |
| Cable length |
0.15 m |
| RoHS compliance |
Y |
| Technical details |
| Sustainability certificates |
RoHS |
| Features |
| Cable length |
0.15 m |
| Connector 1 |
DisplayPort 1.2 |
| Connector 2 |
HDMI Type A (Standard) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Maximum resolution |
4096 x 2048 pixels |
| Product colour |
Black |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| HDMI version |
1.4 |
| HDCP |
Y |
| DisplayPort version |
1.2 |
| DisplayPort Content Protection (DPCP) |
Y |
| Supported graphics resolutions |
1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA) |
| Maximum refresh rate |
30 Hz |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Weight & dimensions |
| Weight |
22 g |
| Width |
21 mm |
| Depth |
64 mm |
| Height |
11 mm |
| Technical details |
| Sustainability certificates |
RoHS |
| Logistics data |
| Master (outer) case width |
33 cm |
| Master (outer) case length |
50 cm |
| Master (outer) case height |
22 cm |
| Products per master (outer) case |
320 pc(s) |
| Packaging data |
| Package width |
125 mm |
| Package depth |
225 mm |
| Package height |
13 mm |
| Package weight |
27 g |
| Sustainability |
| Sustainability certificates |
RoHS |
Features
StarTech.com DisplayPort to HDMI Adapter - 4K 30Hz Active DisplayPort to HDMI Video Converter - DP to HDMI Monitor/TV/Display Cable Adapter Dongle - Ultra HD DP 1.2 to HDMI 1.4 Adapter. Cable length: 0.15 m, Connector 1: DisplayPort 1.2, Connector 2: HDMI Type A (Standard). Sustainability certificates: RoHS. Weight: 22 g, Width: 21 mm, Depth: 64 mm. Package width: 125 mm, Package depth: 225 mm, Package height: 13 mm. Master (outer) case width: 33 cm, Master (outer) case length: 50 cm, Master (outer) case height: 22 cm
Product Description
Connect an HDMI monitor to a DisplayPort video source
The DP2HD4KS DisplayPort to HDMI adapter enables you to connect a DisplayPort-equipped desktop or laptop computer, such as the HP EliteBook 8570p / 8470p, to an HDMI display. This adapter is compatible with DisplayPort 1.2 & HDMI 4K @ 30 Hz and as a result can support video resolutions up to Ultra HD (4K) as well as the accompanying digital audio up to 7.1 channel surround sound.
With support for resolutions up to Ultra HD (4K) the DP to HDMI adapter ensures you can convert DisplayPort to HDMI while maintaining an astonishing picture quality four times the resolution of high-definition 1080p. The adapter is also backward compatible with previous DisplayPort revisions 1.0/1.1 with support for resolutions up to 1080p.
For a hassle-free setup the DisplayPort to HDMI adapter allows for plug-and-play installation without any additional software or drivers. Plus, with a small footprint and lightweight design, the adapter maximizes portability.
To ensure compatibility with any DisplayPort output the DP adapter offers an active conversion. Active video conversion is required to maintain 4K resolutions when converting DisplayPort to HDMI. An active DP adapter is also ideal for outputting 1080p video resolutions by ensuring compatibility with graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).
The DP2HD4KS is backed by a 3-year StarTech.com warranty, and lifetime technical support.
The StarTech.com Advantage
- Prepare for the next generation of displays, with support for Ultra HD 4K video
- Maximize compatibility, with support for DisplayPort revisions 1.2/1.1/1.0
- Easy to carry as a laptop accessory, with a compact design and no external power adapter needed
