Stock Status: 1x unit in stock

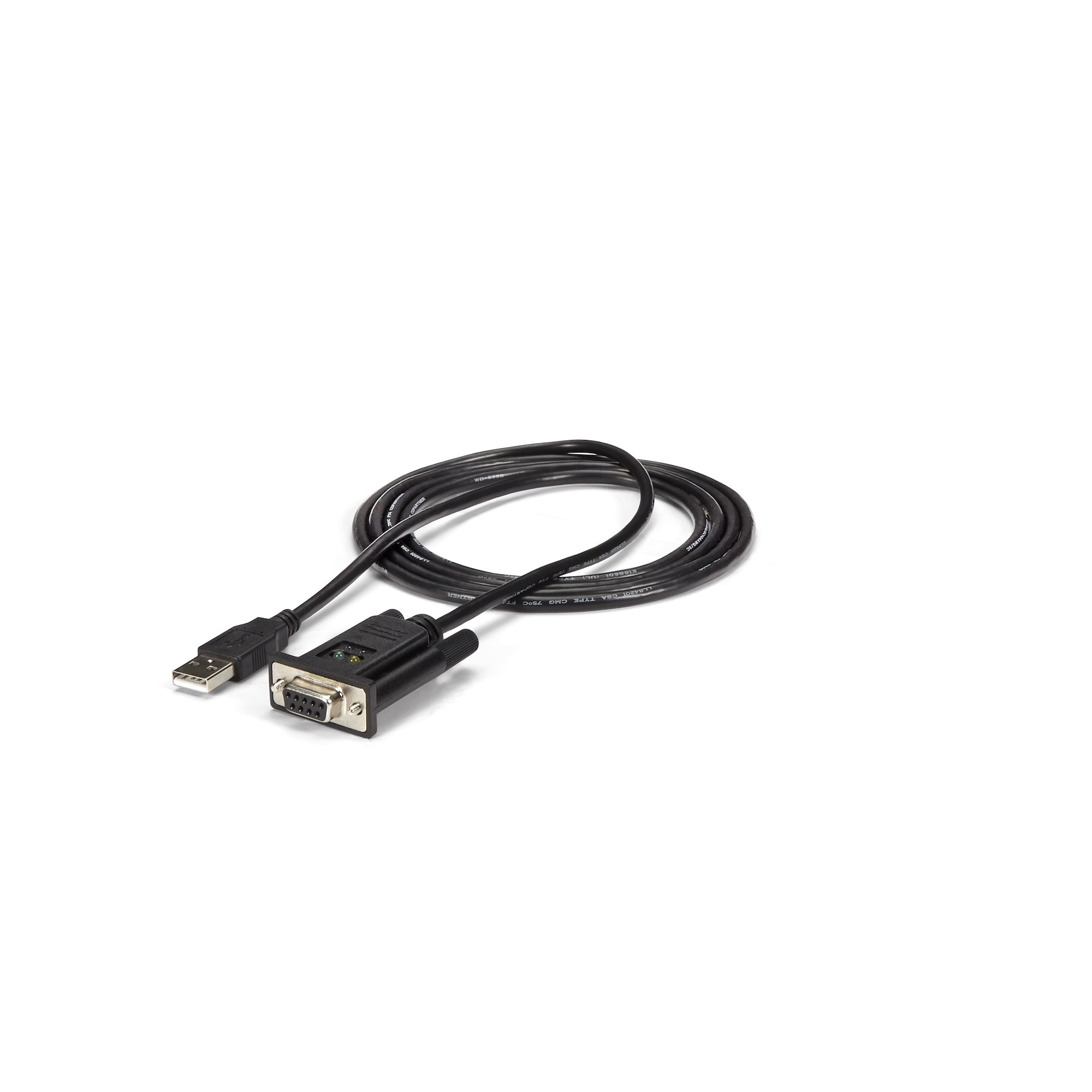

Add a Null Modem RS232 serial port to your laptop or desktop computer through USB
The ICUSB232FTN FTDI USB to Null Modem Serial Adapter Cable (1-Port) converts an available USB 1.1 or 2.0 port into an RS232 Null Modem serial DB9 port, solving DCE/DTE conflicts directly, without requiring additional cross-wired serial cables or adapters.
This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The integrated FTDI chipset supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.
The USB to Null Modem adapter is compatible with a broad list of operating systems including Windows®, Windows CE, Mac OS and Linux, making it easier to integrate into mixed environments.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specs
| Technical details |
| Compliance certificates |
CE, RoHS |
| Packaging content |
| Manual |
Yes |
| Drivers included |
Yes |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
208 mm |
| Package depth |
146 mm |
| Package height |
39 mm |
| Package weight |
205 g |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
| Master (outer) case width |
450 mm |
| Master (outer) case length |
525 mm |
| Master (outer) case height |
335 mm |
| Products per master (outer) case |
50 pc(s) |
| Features |
| Product colour |
Black |
| Cable length |
1.7 m |
| Connector 1 |
USB Type-A |
| Connector 2 |
DB-9 |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Chipset |
FTDI - FT232RL |
| Baud rate |
921.6 Kbit/s |
| Data bits |
7, 8 |
| FIFO (First In, First Out) |
256 B |
| Parity bit |
Even, Mark, No, Odd, Space |
| Stop bits |
1, 2 |
| Mean time between failures (MTBF) |
541728 h |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS |
| Linux operating systems supported |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-20 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
| Weight |
88 g |
Features
StarTech.com 6ft (1.8m) 1-Port USB to Serial RS232 Adapter, FTDI DB9 Serial DCE Adapter Cable, Null Modem, USB 2.0 - TAA. Product colour: Black, Cable length: 1.7 m, Connector 1: USB Type-A. Quantity per pack: 1 pc(s), Package width: 208 mm, Package depth: 146 mm. Weight: 88 g. Master (outer) case width: 450 mm, Master (outer) case length: 525 mm, Master (outer) case height: 335 mm
Product Description
Add a Null Modem RS232 serial port to your laptop or desktop computer through USB
The ICUSB232FTN FTDI USB to Null Modem Serial Adapter Cable (1-Port) converts an available USB 1.1 or 2.0 port into an RS232 Null Modem serial DB9 port, solving DCE/DTE conflicts directly, without requiring additional cross-wired serial cables or adapters.
This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The integrated FTDI chipset supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.
The USB to Null Modem adapter is compatible with a broad list of operating systems including Windows®, Windows CE, Mac OS and Linux, making it easier to integrate into mixed environments.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
